Sabinaite

Na4TiZr2O4(CO3)4
IMA status
  • Approved
IMA symbol
Sba
Discovered
1980
Also known as
  • IMA1978-071
  • Sabinaiet

Where it forms, where it's found

Geological setting

In silicocarbonatite.

Alkaline intrusives

Type locality
Francon quarry
  1. Montréal
  2. Québec
  3. Canada

45.5679°, -73.6060°

3recorded occurrences
Source · OpenStreetMap

Physical

Transparency
Transparent
Colour
Colourless to white
Streak
White
Cleavage
Perfect

Perfect (001) and distinct (010).

Density
3.36 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 85° · 2V calc = 80 – 82°
Refractive index
1.72 – 1.9
Surface relief
Very high
Principal indices
nα 1.72 – 1.74 · nβ 1.79 – 1.8 · nγ 1.85 – 1.9
Dispersion
r > v
UV response
Not fluorescent, but aggregates are sometimes coated in films of a gibbsite-type mineral that has an intense, white fluorescence under long-wave ultraviolet light.
Notes

Mont Saint-Hilaire sabinaite is optically positive.

Michel-Lévy diagramhighlighted lineδ = 0.1450
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]1450 nm3rd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation1450 nm
Order3rd order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/c
Cell parameters
a = 10.17 Å · b = 6.62 Å · c = 17.97 Å
Cell angles
β = 94.32 °
Ratio a:b:c
1 : 0.651 : 1.767
Z
4
Morphology

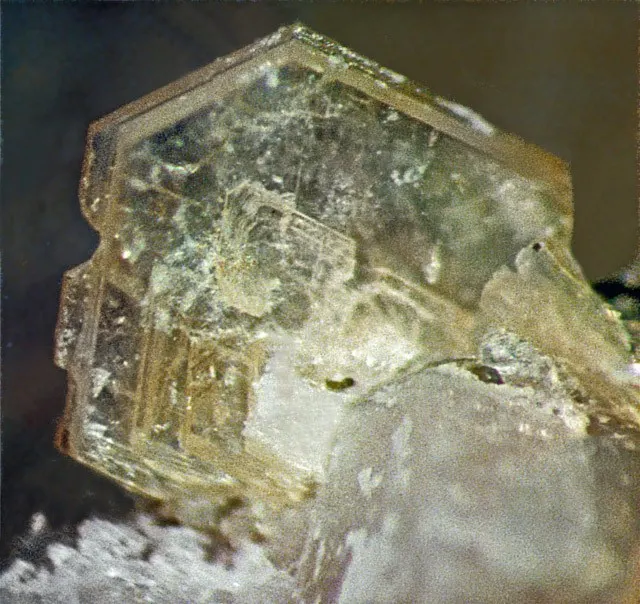

Tabular, flattened on c [001] and slightly elongated on a [100]. Observed forms are (100), (110), and (001).

Type-locality form

White, powdery coatings and compact, chalky aggregates in vugs. Microscopically flaky, with maximum dimensions of about 0.01 mm in width and 0.001 mm in thickness.

Comment

May also be Cc

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1615.999255.984
40.87%
40ZrZirconiumZirconium291.224182.448
29.13%
11NaSodiumSodium422.99091.960
14.69%
6CCarbonCarbon412.01148.044
7.67%
22TiTitaniumTitanium147.86747.867
7.64%
Total626.303100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1978-071
  • Sabinaiet

In other languages

French
Sabinaite
German
IMA 1978-071 · Sabinait
Spanish
Sabinaíta
Italian
Sabinaite

Classification

Strunz
10th ed.

5.BB.20

  • 5CarbonatesClass
  • 5.BCarbonates with additional anions, without H2ODivision
  • 5.BBWith alkalies, etc.Group
  • 5.BB.20SabinaiteSpecies
Dana
8th ed.

16a.05.04.01

  • 16aAnhydrous Carbonates Containing Hydroxyl or HalogenClass
  • 16a.05MiscellaneousType
  • 16a.05.04— unnamed intermediate level —Group
  • 16a.05.04.01SabinaiteSpecies
CIM

11.9.8

  • 11CarbonatesClass
  • 11.9Carbonates of Pb, Zr and ThGroup
  • 11.9.8SabinaiteSpecies

Literature, links & citation

Citations
  1. 1980Jambor, J. L., Sturman, B. D., Weatherly, G. C. (1980) Sabinaite, a new hydrous zirconium bearing carbonate mineral from Montreal Island, Quebec. The Canadian Mineralogist, 18 (1) 25-29
  2. 1985Chao, G. Y., Jiexiang, G. (1985) Sabinaite: a new occurrence and new data. The Canadian Mineralogist, 23 (1) 17-19
  3. 1990Horváth, László, Gault, Robert A. (1990) The Mineralogy of Mont Saint-Hilaire, Quebec. The Mineralogical Record, 21 (4) 281-359
  4. 1996McDonald, A. M. (1996) The crystal structure of sabinaite, Na4Zr2TiO4(CO3)4. The Canadian Mineralogist, 34 (4) 811-815
  5. 2005(2005) Sabinaite. Handbook of Mineralogy. Mineralogical Society of America
