Santanaite

Pb11CrO16
IMA status
  • Approved
IMA symbol
San
IMA approved
1971
Also known as
  • Santanaiet

Where it forms, where it's found

Type locality
Santa Ana Mine
  1. Caracoles
  2. Caracoles mining district
  3. Sierra Gorda
  4. Antofagasta Province
  5. Antofagasta
  6. Chile

Safety & handling

Physical

Hardness
123456789104/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Colour
Straw-yellow
Cleavage
Perfect

(0001) perfect, also (1210) and rarely (1010)

Density
9.155 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
2.12 – 2.32
Surface relief
Very high
Principal indices
nω 2.32 · nε 2.12
Pleochroism
Weak
Optical colour
Dirty gray-brown colors
Michel-Lévy diagramhighlighted lineδ = 0.2000
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]2000 nm4th order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation2000 nm
Order4th order
XPL colour

Crystallography

Crystal system
Hexagonal
Space group
#120
Cell parameters
a = 9.03 Å · c = 39.84 Å
Z
6
Type-locality form

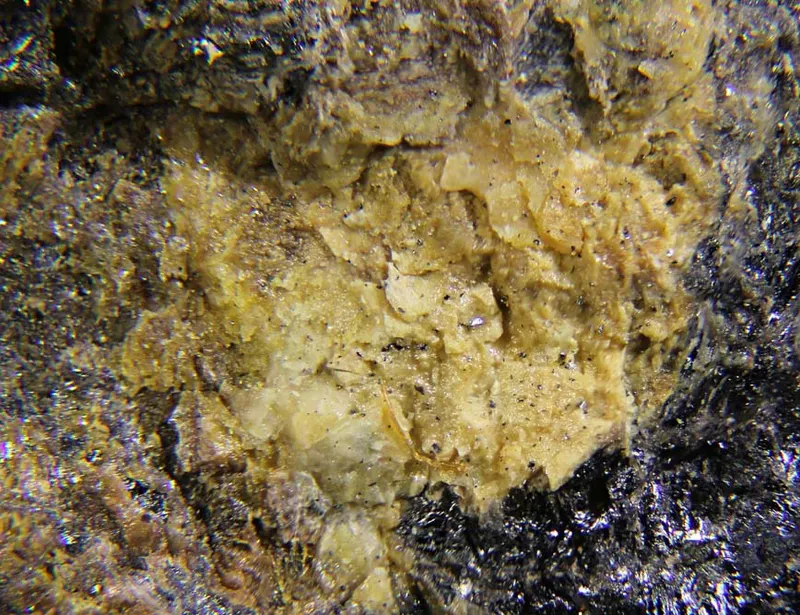

Aggregates of platelets up to 0.5 mm long, 0.2 mm wide, in a druse surrounded by corroded galena.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
82PbLeadLead11207.2002279.200
88.10%
8OOxygenOxygen1615.999255.984
9.89%
24CrChromiumChromium151.99651.996
2.01%
Total2587.180100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Santanaiet

In other languages

German
IMA 1971-035 · Santanait
Italian
santanaite

Classification

Strunz
10th ed.

7.FB.10

  • 7SulfatesClass
  • 7.FChromatesDivision
  • 7.FBWith additional O,V, S, ClGroup
  • 7.FB.10SantanaiteSpecies
Dana
8th ed.

35.04.01.01

  • 35Anhydrous ChromatesClass
  • 35.04MiscellaneousType
  • 35.04.01— unnamed intermediate level —Group
  • 35.04.01.01SantanaiteSpecies
CIM

27.2.7

  • 27Sulphites, Chromates, Molybdates and TungstatesClass
  • 27.2ChromatesGroup
  • 27.2.7SantanaiteSpecies

Literature, links & citation

Citations
  1. 1972Mücke, A. (1972) Santanait, ein neues Bleichromat-Mineral. Neues Jahrbuch für Mineralogie, Monatshefte: 1972: 455-458.
  2. 1973Fleischer, Michael (1973) New mineral names. American Mineralogist, 58 (9-10). 966-967
  3. 2005(2005) Santanaite. Handbook of Mineralogy. Mineralogical Society of America
