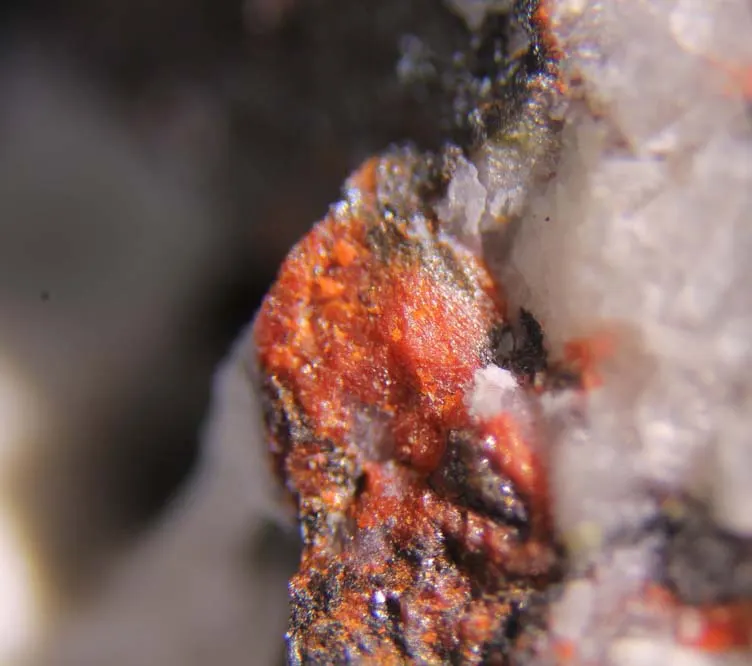

Sarabauite

Sb4S6 · CaSb6O10
IMA status
  • Approved
IMA symbol
Sbu
Discovered
1976
IMA approved
1976
Also known as
  • IMA1976-035
  • Sarabauiet

Where it forms, where it's found

Geological setting

Limestone cut by a 5 cm vein-like body.

Type locality
Sarabau Mine
  1. Bau
  2. Kuching Division
  3. Sarawak
  4. Malaysia

1.4096°, 110.1725°

3recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Resinous
Colour
Carmine red
Streak
Orange
Tenacity
sectile
Cleavage
None Observed
Density
4.8 g/cm³

Optical

Optical type
· 2V calc = ~90°
Pleochroism
Weak

Discernible in reflected light, from brownish to purplish tint; in transmitted light, reddish yellow ‖ Y; brownish red ‖ Z′.

Extinction
b = Y
Optical colour
Gray-white
Internal reflections
Remarkable, reddish orange
Reflectance R%
(20.1,25.8) 486, (19.7,24.7) 546, (19.1,23.5) 589, (14.0,20.0) 656
Reflected-light panel
18.2 %anisotropic · dual curve
Specimen sRGB 152, 114, 63
White reference100 % reflector under same lamp
R₁ R₂
Mode
Reflected colour
Gray-white
Internal reflections
Remarkable, reddish orange

Crystallography

Crystal system
Monoclinic
Space group
#10
Cell parameters
a = 25.37 Å · b = 5.65 Å · c = 16.87 Å
Cell angles
β = 117.58 °
Ratio a:b:c
1 : 0.223 : 0.665
Morphology

Tabular and prismatic parallel to the b axis.

Type-locality form

Small realgar-like masses in vein-like mineral aggregates.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
51SbAntimonyAntimony10121.7601217.600
75.62%
16SSulfurSulfur632.060192.360
11.95%
8OOxygenOxygen1015.999159.990
9.94%
20CaCalciumCalcium140.07840.078
2.49%
Total1610.028100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1976-035
  • Sarabauiet

In other languages

German
IMA 1976-035 · Sarabauit
Italian
Sarabauite

Classification

Strunz
10th ed.

2.MA.10

  • 2Sulfides and SulfosaltsClass
  • 2.MOxysulfosaltsDivision
  • 2.MAOxysulfosalts of Alkalies and Alkali EarthsGroup
  • 2.MA.10SarabauiteSpecies
Dana
8th ed.

02.13.02.01

  • 02SulfidesClass
  • 02.13OxysulfidesType
  • 02.13.02— unnamed intermediate level —Group
  • 02.13.02.01SarabauiteSpecies
CIM

4.3

  • 4OxysulphidesClass
  • 4.3— unnamed intermediate level —Group
  • 4.3SarabauiteSpecies

Literature, links & citation

Citations
  1. 1977Nakai, Izumi, Koto, Kichiro, Nagashima, Kozo, Morimoto, Nobuo (1977) The crystal structure of sarabauite CaSb10O10S6, a new oxide sulfide mineral. Chemistry Letters, 6 (3) 275-276 doi:10.1246/cl.1977.275DOI: 10.1246/cl.1977.275
  2. 1978Nakai, Izumi, Adachi, Hajime, Matsubara, Satoshi, Kato, Akira, Masutomi, Kazunosuke, Fujiwara, Takashi, Nagasima, Kozo (1978) Sarabauite, a new oxide sulfide mineral from the Sarabau Mine, Sarawak, Malaysia. American Mineralogist, 63 (7-8) 715-719
  3. 1978Nakai, I., Nagashima, K., Koto, K., Morimoto, N. (1978) Crystal chemistry of oxide–chalcogenide. I. The crystal structure of sarabauite CaSb10O10S6. Acta Crystallographica Section B Structural Crystallography and Crystal Chemistry, 34 (12) 3569-3572 doi:10.1107/s0567740878011619DOI: 10.1107/s0567740878011619
  4. 2005(2005) Sarabauite. Handbook of Mineralogy. Mineralogical Society of America
