Sayrite

Pb2(UO2)5O6(OH)2 · 4H2O
IMA status
  • Approved
IMA symbol
Syr
Discovered
1983
Also known as
  • IMA1982-050
  • Sayriet

Where it forms, where it's found

Geological setting

Uranium deposit

Type locality
Shinkolobwe Mine
  1. Shinkolobwe
  2. Kambove Territory
  3. Haut-Katanga
  4. DR Congo

-11.0486°, 26.5508°

3recorded occurrences
Source · OpenStreetMap

Radioactivity

Physical

Transparency
Transparent · Translucent
Colour
Yellow-orange to red-orange
Cleavage
Distinct/Good

distinct (102)

Density
6.76 g/cm³

Optical

Optical type
Biaxial (-)
Refractive index
1.94 – 1.95
Surface relief
Very high
Principal indices
nβ 1.94 · nγ 1.95
Pleochroism
Visible

Y pale yellow, Z amber

Dispersion
relatively weak
Notes

Refractive index along α was not measurable 2V was 'large' X ~ a, Y = b, Z ~ c

Crystallography

Crystal system
Monoclinic
Cell parameters
a = 10.6925(4) Å · b = 6.9593(2) Å · c = 13.6035(5) Å
Cell angles
β = 107.680(3) °
Ratio a:b:c
1 : 0.651 : 1.272
Unit cell volume
964.46 ų
Z
2
Morphology

Prismatic crystals elongated along b and flattened on (102)

Type-locality form

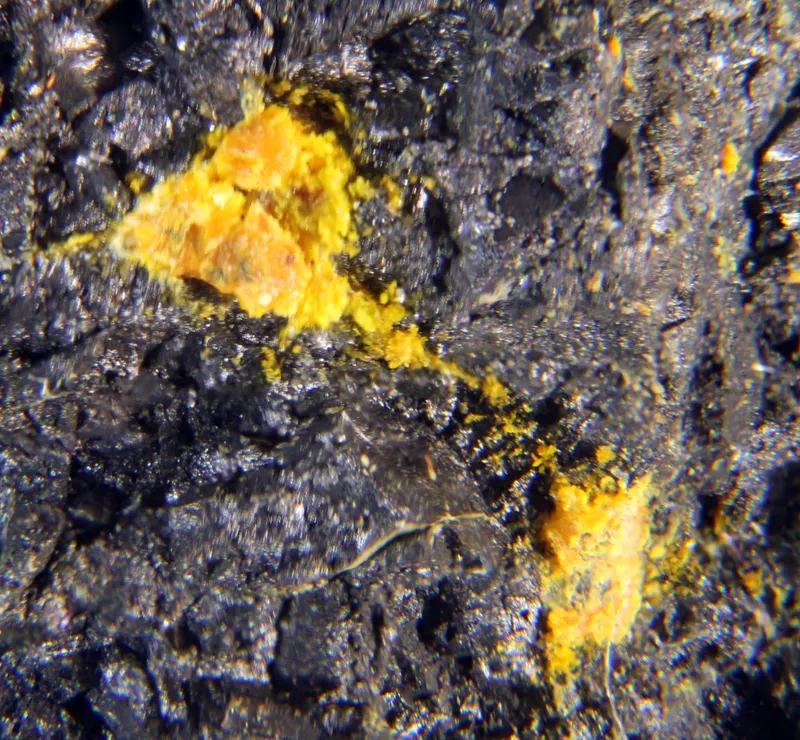

Yellow-orange to red-orange, prismatic crystals with maximum size 0.6 x 0.3 x 0.1 mm

Comment

space group is P21/n

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
92UUraniumUranium5238.0291190.145
60.52%
82PbLeadLead2207.200414.400
21.07%
8OOxygenOxygen2215.999351.978
17.90%
1HHydrogenHydrogen101.00810.080
0.51%
Total1966.603100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1982-050
  • Sayriet

In other languages

German
IMA 1982-050 · Sayrit
Italian
Sayrite

Classification

Strunz
10th ed.

4.GB.50

  • 4OxidesClass
  • 4.GUranyl HydroxidesDivision
  • 4.GBWith additional cations (K, Ca, Ba, Pb, etc.); with mainly UO2(O,OH)5 pentagonal polyhedraGroup
  • 4.GB.50SayriteSpecies
Dana
8th ed.

05.09.06.01

  • 05Oxides Containing Uranium or ThoriumClass
  • 05.09MiscellaneousType
  • 05.09.06— unnamed intermediate level —Group
  • 05.09.06.01SayriteSpecies
CIM

7.16.30

  • 7Oxides and HydroxidesClass
  • 7.16Oxides of UGroup
  • 7.16.30SayriteSpecies

Literature, links & citation

Citations
  1. 1983Piret, Paul, Deliens, Michel, Piret-Meunier, Jacqueline, Germain, Gabriel, Piret, Paul, Deliens, Michel, Piret-Meunier, Jacqueline, Germain, Gabriel (1983) La sayrite, (Pb2[(UO2)5O6(OH)2]·4H2O, nouveau minéral ; propriétés et structure cristalline. Bulletin de Minéralogie, 106 (3) 299-304 doi:10.3406/bulmi.1983.7709 DOI: 10.3406/bulmi.1983.7709
  2. 1984Dunn, Pete J., Chao, George Y., Grice, Joel D., Ferraiolo, James A., Fleischer, Michael, Pabst, Adolf, Zilczer, Janet A. (1984) New mineral names. American Mineralogist, 69 (5-6) 565-569
  3. 2005(2005) Sayrite. Handbook of Mineralogy. Mineralogical Society of America
  4. 2005Burns, Peter C. (2005) U6+ minerals and inorganic compounds: insights into an expanded structural hierarchy of crystal structures. The Canadian Mineralogist, 43 (6) 1839-1894 doi:10.2113/gscanmin.43.6.1839 DOI: 10.2113/gscanmin.43.6.1839
  5. 2019Plášil, Jakub (2019) Hydrogen bonding in lead uranyl oxide mineral sayrite. Zeitschrift für Kristallographie - Crystalline Materials, 234 (11) 733-738 doi:10.1515/zkri-2019-0035DOI: 10.1515/zkri-2019-0035
