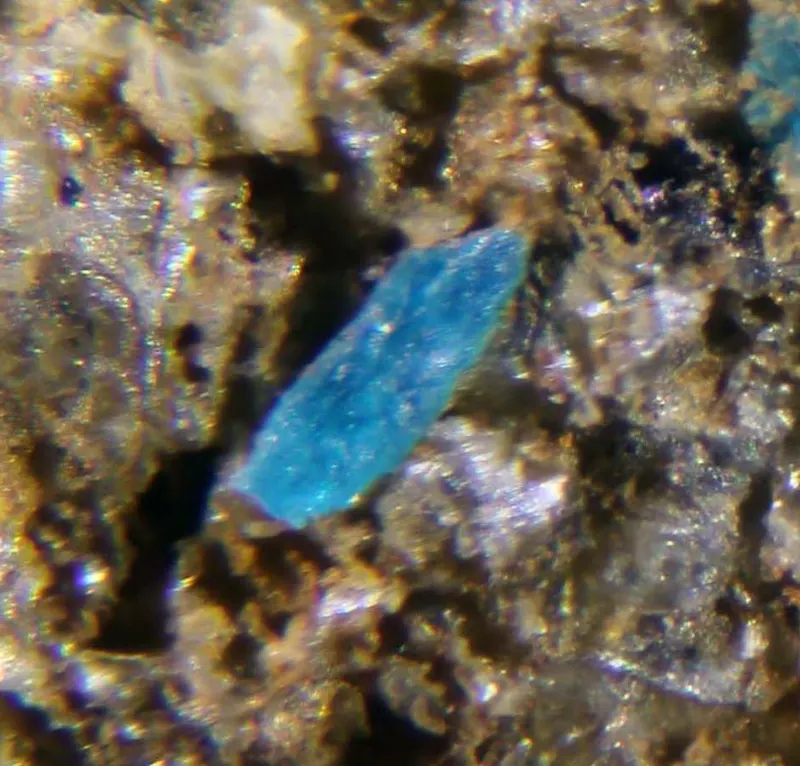

Schuilingite-(Nd)

CuPbNd(CO3)3(OH) · 1.5H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Shg-Nd
Also known as
  • Schuilingiet-(Nd)
  • schuilingite

Where it forms, where it's found

Type locality
Kasompi Mine
  1. Mutshatsha
  2. Lualaba
  3. DR Congo

-10.9756°, 25.9003°

3recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789103 – 4/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Light azure-blue to turquoise-blue
Streak
Light blue
Cleavage
Perfect

Perfect on (110); poor on (100).

Density
4.74 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 66° · 2V calc = 64°
Refractive index
1.71 – 1.775
Surface relief
High
Principal indices
nα 1.71 · nβ 1.755 · nγ 1.775
Pleochroism
Weak

X = colorless to pale blue; Y = azure-blue; Z = blue

Dispersion
r > v strong
Michel-Lévy diagramhighlighted lineδ = 0.0650
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]650 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation650 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Orthorhombic
Cell parameters
a = 7.419(2) Å · b = 18.859(3) Å · c = 6.39(1) Å
Ratio a:b:c
1 : 2.542 : 0.861
Z
4
Type-locality form

Crystals are acicular, to 1.5 mm, in subparallel aggregates, or in crusts.

Comment

Space group: P21cn

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
82PbLeadLead1207.200207.200
32.42%
8OOxygenOxygen11.515.999183.989
28.79%
60NdNeodymiumNeodymium1144.242144.242
22.57%
29CuCopperCopper163.54663.546
9.95%
6CCarbonCarbon312.01136.033
5.64%
1HHydrogenHydrogen41.0084.032
0.63%
Total639.042100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Schuilingiet-(Nd)
  • schuilingite

In other languages

German
Schuilingit-(Nd)
Italian
Schuilingite- · Schuilingite-(Nd)

Classification

Strunz
10th ed.

5.DB.20

  • 5CarbonatesClass
  • 5.DCarbonates with additional anions, with H2ODivision
  • 5.DBWith large and medium-sized cationsGroup
  • 5.DB.20Schuilingite-(Nd)Species
Dana
8th ed.

16b.01.04.01

  • 16bHydrated Carbonates Containing Hydroxyl or HalogenClass
  • 16b.01AmBn(XO3)pZqxH2O & with (m+n):p = 1:1Type
  • 16b.01.04— unnamed intermediate level —Group
  • 16b.01.04.01Schuilingite-(Nd)Species
CIM

11.9.5

  • 11CarbonatesClass
  • 11.9Carbonates of Pb, Zr and ThGroup
  • 11.9.5Schuilingite-(Nd)Species

Literature, links & citation

Citations
  1. 1947Vaes, J.F. (1947). Description d'un nouveau mineral "La Schuilingite.". Bulletin de la Societe de Geologie Belgique 90, B233-B236
  2. 1951Palache, Charles; Berman, Harry; Frondel, Clifford (1951) The System of Mineralogy (7th ed.) Vol. 2 - Halides, Nitrates, Borates, Carbonates, Sulfates, Phosphates, Arsenates, Tungstates, Molybdates, Etc. John Wiley and Sons.
  3. 1958Fleischer, M. (1958) New Mineral Names. American Mineralogist, 43 (7-8). 790-798
  4. 1987Nickel, Ernest H., Mandarino, Joseph A. (1987) Procedures involving the IMA Commission on New Minerals and Mineral Names and guidelines on mineral nomenclature. American Mineralogist, 72 (9-10) 1031-1042
  5. 1999Schindler, M., Hawthorne, F. C. (1999) The crystal structure of schuilingite-(Nd) The Canadian Mineralogist, 37 (6) 1463-1470
