Schulenbergite

(Cu,Zn)7(SO4)2(OH)10 · 3H2O
IMA status
  • Approved
IMA symbol
Slb
Discovered
1984
Also known as
  • IMA1982-074
  • Schulenbergiet

Where it forms, where it's found

Geological setting

oxidized zone of Cu–Zn-bearing hydrothermal mineral deposits

Type locality
Glücksrad Mine
  1. Oberschulenberg
  2. Clausthal-Zellerfeld
  3. Goslar District
  4. Lower Saxony
  5. Germany

51.8320°, 10.3987°

145recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Pearly
Transparency
Transparent
Colour
Light blue to blue-green.
Streak
Pale blue-green.
Cleavage
Perfect

Perfect on (0001); poor on (1120)

Density
3.28 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.623 – 1.707
Surface relief
High
Principal indices
nω 1.640 – 1.707 · nε 1.623 – 1.666
Birefringence
0.055
Pleochroism
Visible

O = colorless, emerald-green to green; E = colorless to pale green.

UV response
Not fluorescent in UV
Michel-Lévy diagramhighlighted lineδ = 0.0550
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]550 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation550 nm
Order1st order
XPL colour

Crystallography

Crystal system
Trigonal
Cell parameters
a = 8.24 Å · c = 7.18 Å
Unit cell volume
47 ų
Z
1
Type-locality form

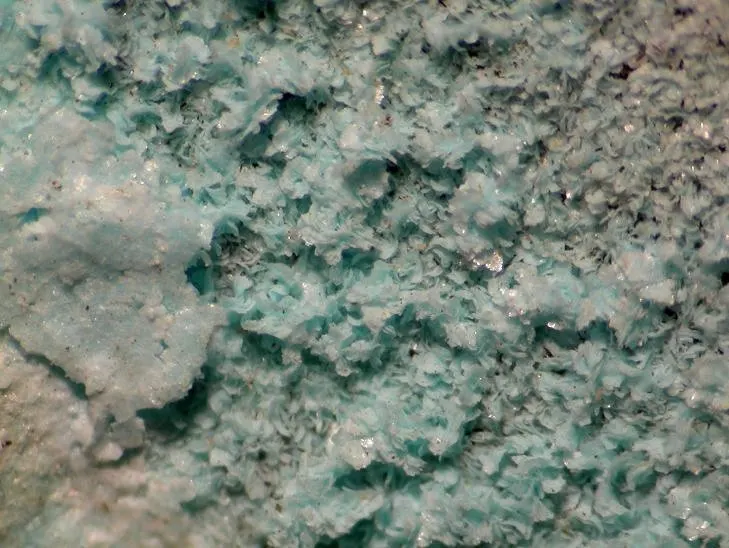

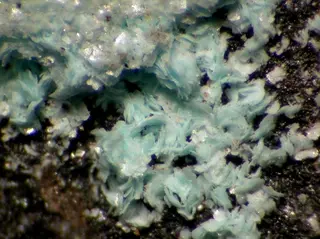

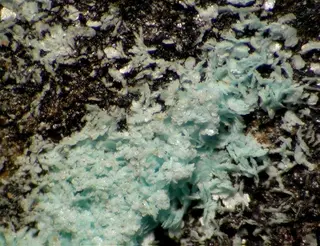

The mineral forms thin tabular crystals, often clustered, rosette diameter 0.2-0.3 mm max.; crystals have average diameter 150 μm and thickness of 2μm.

Comment

Space group P-3 (this is given by Mumme et al., 1994) or P3. Range of cell parameters: a = 8.211–8.249 c = 7.106–7.183 A.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
30ZnZincZinc765.380457.660
34.71%
29CuCopperCopper763.546444.822
33.73%
8OOxygenOxygen2115.999335.979
25.48%
16SSulfurSulfur232.06064.120
4.86%
1HHydrogenHydrogen161.00816.128
1.22%
Total1318.709100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1982-074
  • Schulenbergiet

In other languages

German
IMA 1982-074 · Schulenbergit
Italian
Schulenbergite

Classification

Strunz
10th ed.

7.DD.80

  • 7SulfatesClass
  • 7.DSulfates (selenates, etc.) with additional anions, with H2ODivision
  • 7.DDWith only medium-sized cations; sheets of edge-sharing octahedraGroup
  • 7.DD.80SchulenbergiteSpecies
Dana
8th ed.

31.01.06.01

  • 31Hydrated Sulfates Containing Hydroxyl or HalogenClass
  • 31.01(AB)m(XO4)pZq·xH2O, where m:p > 6:1Type
  • 31.01.06Schulenbergite groupGroup
  • 31.01.06.01SchulenbergiteSpecies
CIM

12.2.10

  • 12Carbonates with other anionsClass
  • 12.2Carbonates with sulphateGroup
  • 12.2.10SchulenbergiteSpecies

Literature, links & citation

Citations
  1. 1984von Hodenberg, R., Krause, W., Tauber, H. (1984) Schulenbergit, (CuZn)4(SO4,CO3)2(OH)10*3H2O, ein neues Mineral. Neues Jahrbuch für Mineralogie - Monatshefte, 1984. 17-24
  2. 1985Dunn, Pete J., Gobel, Volker, Grice, Joel D., Puziewicz, Jacek, Shigley, James E., Vanko, David A., Zilczer, Janet (1985) New mineral names. American Mineralogist, 70 (3-4) 436-441
  3. 1994Mumme, W.G., Sarp, H., Chiappero, P.J. (1994) A note on the crystal structure of Schulenbergite. Archives des Sciences (Geneva): 47(2): 117-124.
  4. 2005(2005) Schulenbergite. Handbook of Mineralogy. Mineralogical Society of America
  5. 2007OHNISHI, Masayuki, KUSACHI, Isao, KOBAYASHI, Shoichi, YAMAKAWA, Junji (2007) Mineral chemistry of schulenbergite and its Zn-dominant analogue from the Hirao mine, Osaka, Japan. Journal of Mineralogical and Petrological Sciences, 102 (4) 233-239 doi:10.2465/jmps.061130 DOI: 10.2465/jmps.061130
