Scottyite

BaCu2Si2O7
IMA status
  • Approved
IMA symbol
Sty
IMA approved
2012
Also known as
  • IMA2012-027
  • Scottyiet
  • Unnamed (Ba-Cu Silicate)

Where it forms, where it's found

Type locality
Wessels Mine
  1. Joe Morolong Local Municipality
  2. John Taolo Gaetsewe District Municipality
  3. Northern Cape
  4. South Africa

-27.1135°, 22.8544°

5recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104 – 5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Dark-blue
Streak
Pale blue
Tenacity
brittle
Cleavage
Perfect

on (100) and (010)

Density
4.654 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 66°
Refractive index
1.75 – 1.765
Surface relief
High
Principal indices
nα 1.750 · nβ 1.761 · nγ 1.765
Michel-Lévy diagramhighlighted lineδ = 0.0150
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]150 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation150 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
#70
Cell parameters
a = 6.8556(2) Å · b = 13.1725(4) Å · c = 6.8901(2) Å
Cell angles
α = 90 ° · β = 90 ° · γ = 90 °
Ratio a:b:c
1 : 1.921 : 1.005
Unit cell volume
622.21 ų
Morphology

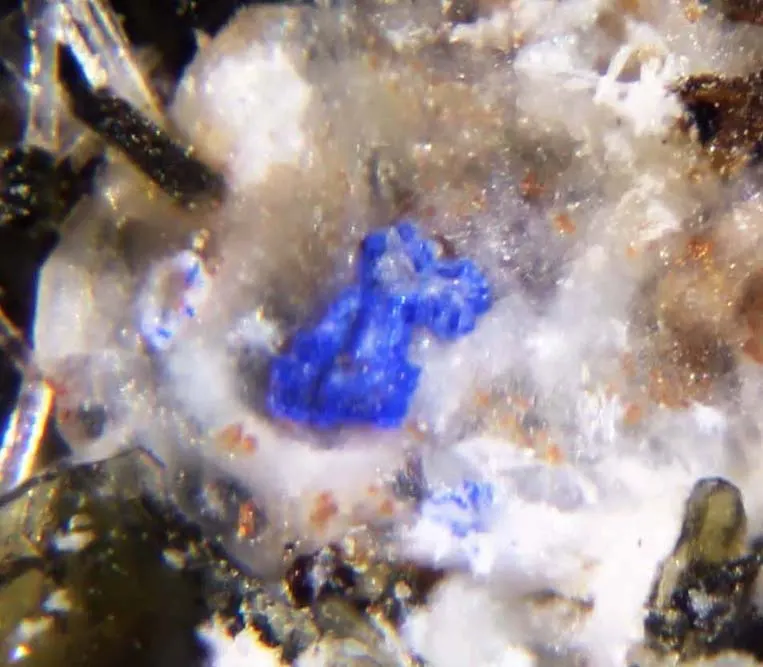

Blocky grains with striations parallel to the c axis. Crystals are found up to 0.4 × 0.3 × 0.3 mm.

Twinning

None observed

Parting
None observed
Type-locality form

Blue massive; Blocky grains

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
56BaBariumBarium1137.327137.327
31.75%
29CuCopperCopper263.546127.092
29.38%
8OOxygenOxygen715.999111.993
25.89%
14SiSiliconSilicon228.08556.170
12.98%
Total432.582100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2012-027
  • Scottyiet
  • Unnamed (Ba-Cu Silicate)

In other languages

German
IMA 2012-027 · Scottyit
Italian
scottyite

Classification

Strunz
10th ed.

9.BC.40

  • 9SilicatesClass
  • 9.BSorosilicatesDivision
  • 9.BCSi2O7 groups, without non-tetrahedral anions; cations in octahedral [6] and greater coordinationGroup
  • 9.BC.40ScottyiteSpecies

Literature, links & citation

Citations
  1. 1990Janczak, J., Kubiak, R., Głowiak, T. (1990) Structure of barium copper pyrosilicate at 300 K. Acta Crystallographica Section C Crystal Structure Communications, 46 (8) 1383-1385 doi:10.1107/s0108270189012618DOI: 10.1107/s0108270189012618
  2. 1993Hentschel, G (1993) Die Lavaströme der Graulai: eine neue Fundstelle in der Westeifel. [The lava flows of the Graulai: a new site in the West Eifel.]. Lapis, 18 (9) 11-23
  3. 2001Yamada, T., Hiroi, Z., Takano, M. (2001) Spin-1/2 Quantum Antiferromagnetic Chains with Tunable Superexchange Interactions Found in BaCu2(Si1−xGex)2O7. Journal of Solid State Chemistry, 156. 101-109 doi:10.1006/jssc.2000.8968DOI: 10.1006/jssc.2000.8968
  4. 2009Blass, G., Graf, H.-W., Kolitsch, U., Sebold, D. (2009): Die Neufunde aus der Vulkaneifel (II) [The new finds from the volcanic Eifel (II)]. Mineralien-Welt 20 (2), 38-49.
  5. 2012Williams, P. A., Hatert, F., Pasero, M., Mills, S. J. (2012) New minerals and nomenclature modifications approved in 2012. CNMNC Newsletter No 14. Mineralogical Magazine, 76 (5) 1281-1288 doi:10.1180/minmag.2012.076.5.15DOI: 10.1180/minmag.2012.076.5.15
