Seamanite

Mn2+3B(OH)4(PO4)(OH)2
IMA status
  • Approved
  • Grandfathered
IMA symbol
Sem
Discovered
1930
Also known as
  • Seamaniet

Where it forms, where it's found

Geological setting

In crevices of a badly fractured and highly ferruginous siliceous rock.

Type locality

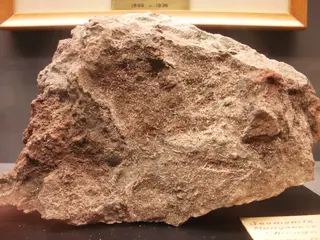

Chicagon mine
  1. Bates Township
  2. Iron County
  3. Michigan
  4. USA

46.0983°, -88.5314°

6recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Yellow · pink · yellow-brown · colourless in transmitted light

May show the alexandrite effect. May be rosey pink in incandescent light and tan to golden brown in daylight.

Streak
White
Tenacity
brittle
Cleavage
Distinct/Good

On (001).

Density
3.08 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 40°
Refractive index
1.64 – 1.665
Surface relief
High
Principal indices
nα 1.640 · nβ 1.663 · nγ 1.665
Birefringence
0.025
Pleochroism
Non-pleochroic
Dispersion
r<v, relatively weak
Extinction
Parallel, X = a; Y = b; Z = c.
UV response
Not fluorescent in UV.
Michel-Lévy diagramhighlighted lineδ = 0.0250
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]250 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation250 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Cell parameters
a = 7.81 Å · b = 15.11 Å · c = 6.69 Å
Ratio a:b:c
1 : 1.935 : 0.857
Z
4
Morphology

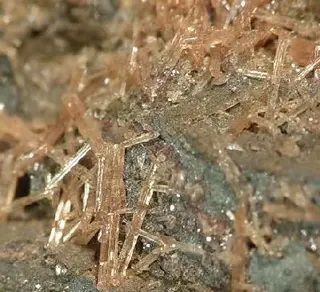

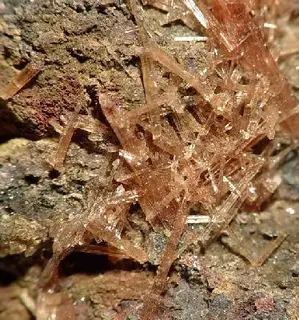

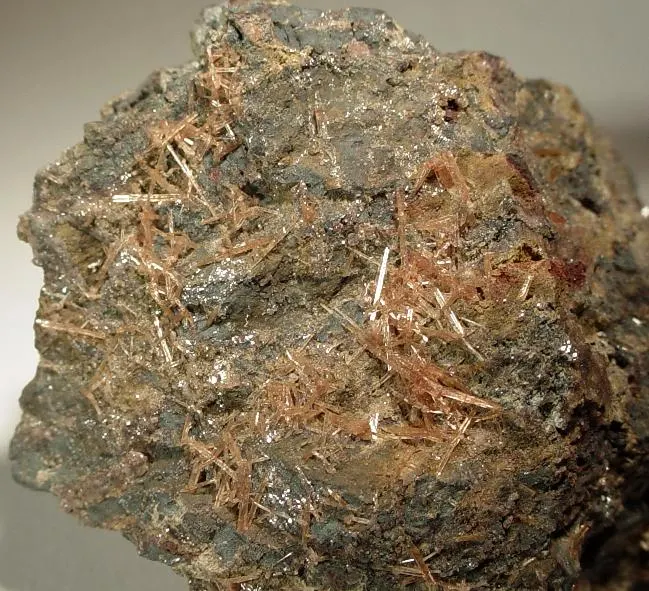

Crystals rod-like to acicular [001]. Acicular crystals consisting of the prism, m, and the unit bipyramid, o. The prism faces may be rough and rounded and striated along the length.

Type-locality form

Small acicular crystals up to 10 x 2 x 1 millimeters in size.

Comment

Pbnm

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
25MnManganeseManganese354.938164.814
44.23%
8OOxygenOxygen1015.999159.990
42.94%
15PPhosphorusPhosphorus130.97430.974
8.31%
5BBoronBoron110.81010.810
2.90%
1HHydrogenHydrogen61.0086.048
1.62%
Total372.636100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Seamaniet

In other languages

French
Seamanite
German
Seamanit
Spanish
seamanita
Italian
seamanite

Classification

Strunz
10th ed.

6.AC.65

  • 6BoratesClass
  • 6.AMonoboratesDivision
  • 6.ACB(O,OH)4, without and with additional anions; 1(T), 1(T)+OH, etcGroup
  • 6.AC.65SeamaniteSpecies
Dana
8th ed.

43.04.05.01

  • 43Compound Phosphates, Etc.Class
  • 43.04Anhydrous Compound Phosphates, etc·, Containing Hydroxyl or HalogenType
  • 43.04.05— unnamed intermediate level —Group
  • 43.04.05.01SeamaniteSpecies
CIM

10.2.4

  • 10Borates with other anionsClass
  • 10.2Borates with phosphate or arsenateGroup
  • 10.2.4SeamaniteSpecies

Literature, links & citation

Citations
  1. 1930Kraus, E. H., Seaman, W. A., Slawson, and C. B. (1930) Seamanite, a new manganese phospho-borate from Iron County, Michigan. American Mineralogist, 15 (6) 220-225
  2. 1941McConnell, Duncan, Pondrom, Walter L. (1941) X-ray crystallography of seamanite. American Mineralogist, 26 (7) 446-447
  3. 1951Palache, Charles; Berman, Harry; Frondel, Clifford (1951) The System of Mineralogy (7th ed.) Vol. 2 - Halides, Nitrates, Borates, Carbonates, Sulfates, Phosphates, Arsenates, Tungstates, Molybdates, Etc. John Wiley and Sons.
  4. 1971Moore, Paul B., Ghose, Subrata (1971) A novel face-sharing octahedral trimer in the crystal structure of seamanite. American Mineralogist, 56 (9-10) 1527-1538
  5. 1971Kurkutova, E.N., Rau, V.G., Rumanova, I.M. (1971) Crystalline structure of seamanite Mn3[PO4/BO3]·3H2O = Mn3[PO3OH][BO(OH)3](OH)2. Soviet Physics - Doklady: 16: 272-274.
