Seelite

Mg(UO2)2(AsO3,AsO4)2 · 7H2O
IMA status
  • Approved
IMA symbol
See
Discovered
1993
Also known as
  • Seeliet
  • Uranmineral F (of Walenta)

Where it forms, where it's found

Type locality
Rabejac Est
  1. Le Puech
  2. Lodève
  3. Hérault
  4. Occitanie
  5. France

43.6847°, 3.3429°

6recorded occurrences
Source · OpenStreetMap

Radioactivity

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Canary yellow to bright yellow
Streak
White
Fracture
Irregular/Uneven
Density
3.70 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 30 – 41° · 2V calc = 34 – 38°
Refractive index
1.602 – 1.753
Surface relief
High
Principal indices
nα 1.602 – 1.610 · nβ 1.730 – 1.737 · nγ 1.740 – 1.753
Pleochroism
Strong

X = Y = yellow; Z = colorless.

Dispersion
Extreme, r >> v
Extinction
Z ∧ c = 5(1)°.
UV response
Not fluorescent.
Michel-Lévy diagramhighlighted lineδ = 0.1405
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]1405 nm3rd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation1405 nm
Order3rd order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/m
Cell parameters
a = 18.20(7) Å · b = 7.067(5) Å · c = 6.665(4) Å
Cell angles
β = 99.67(2) °
Ratio a:b:c
1 : 0.388 : 0.366
Z
2
Morphology

Platelets are elongated along [010], flattened on (100) (or rarely on (001)). The prism faces (100) and (001) are terminated by (010) or by (011) and (011).

Type-locality form

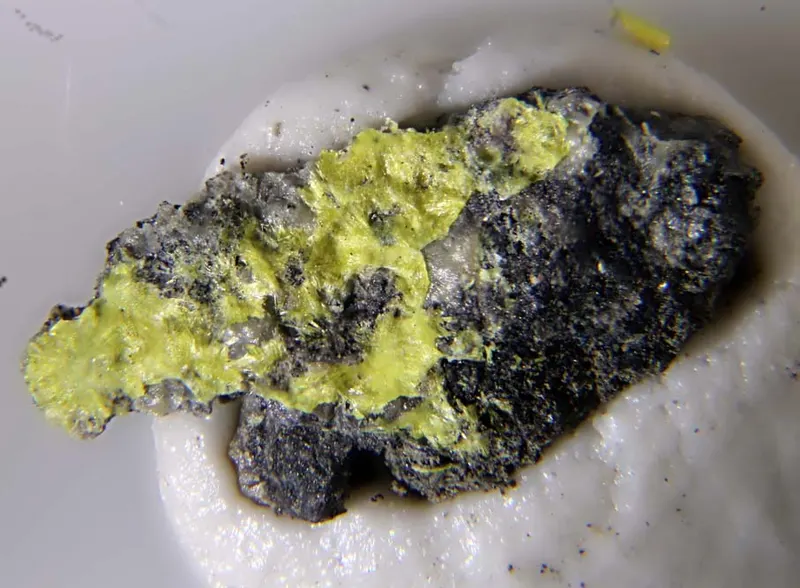

Transparent canary-yellow tabular crystals, flattened on (100), with a maximum length of 1 mm. They commonly form tufted spherules and rosettes of divergent hair-like needles.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
92UUraniumUranium2238.029476.058
39.21%
8OOxygenOxygen2515.999399.975
32.94%
33AsArsenicArsenic474.922299.688
24.69%
12MgMagnesiumMagnesium124.30524.305
2.00%
1HHydrogenHydrogen141.00814.112
1.16%
Total1214.138100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Seeliet
  • Uranmineral F (of Walenta)

In other languages

German
IMA 1992-005 · Seelit
Italian
Seelite · Seelite-1 · Seelite-2

Classification

Strunz
10th ed.

4.JD.10

  • 4OxidesClass
  • 4.JArsenites, antimonites, bismuthites, sulfites, selenites, tellurites; iodatesDivision
  • 4.JDArsenites, antimonites, bismuthites; with additional anions, with H2OGroup
  • 4.JD.10SeeliteSpecies
Dana
8th ed.

46.02.09.01

  • 46Antimonites and Arsenites Containing Hydroxyl or HalogenClass
  • 46.02MiscellaneousType
  • 46.02.09— unnamed intermediate level —Group
  • 46.02.09.01SeeliteSpecies

Literature, links & citation

Citations
  1. virtualcollections.naturalsciences.be (n.d.) http://virtualcollections.naturalsciences.be/virtual-collections/geology/mineralogy/mineralogy-types/seelite-rc4195
  2. 1958Walenta, Kurt (1958) Die sekundären Uranmineralien des Schwarzwaldes. Jahreshefte des geologischen Landesamtes in Baden-Württemberg: 3: 17-51.
  3. 1972Walenta (1972) [as Uranmineral F]
  4. 1991Bachet, B.; Brassy, C.; Cousson, A. (1991) Structure de Mg[(UO2)(AsO4)]2.4H2O. Acta Crystallographica Section C Crystal Structure Communications, 47 (10). 2013-2015 doi:10.1107/s0108270191003852DOI: 10.1107/s0108270191003852
  5. 1993Jambor, L., Puziewicz, Jacek (1993) New Mineral Names. American Mineralogist, 78 (3-4) 450-455
