Senegalite

Al2(PO4)(OH)3 · H2O
IMA status
  • Approved
IMA symbol
Sng
Discovered
1975
IMA approved
1975
Also known as
  • IMA1975-004
  • Senegaliet

Where it forms, where it's found

Geological setting

Oxidation zone of an iron ore deposit.

Type locality
Mount Kourou Diakouma
  1. Saraya
  2. Kédougou Region
  3. Senegal

12.8858°, -11.4425°

3recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Colourless to light yellow · green

Fresh senegalite is green becoming yellow on exposure to sunlight.

Streak
White
Cleavage
Poor/Indistinct

(010), poor

Density
2.552 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 53° · 2V calc = 48°
Refractive index
1.562 – 1.587
Surface relief
Moderate
Principal indices
nα 1.562 · nβ 1.566 · nγ 1.587
Dispersion
strong
Extinction
Parallel. X = c; Y = a; Z = b.
UV response
Not fluorescent.
Michel-Lévy diagramhighlighted lineδ = 0.0250
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]250 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation250 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Cell parameters
a = 7.675(4) Å · b = 9.711(4) Å · c = 7.635(4) Å
Ratio a:b:c
1 : 1.265 : 0.995
Z
4
Morphology

Flattened on [010], showing large (001), (010),(101), (111), small (100), (011), (021).

Type-locality form

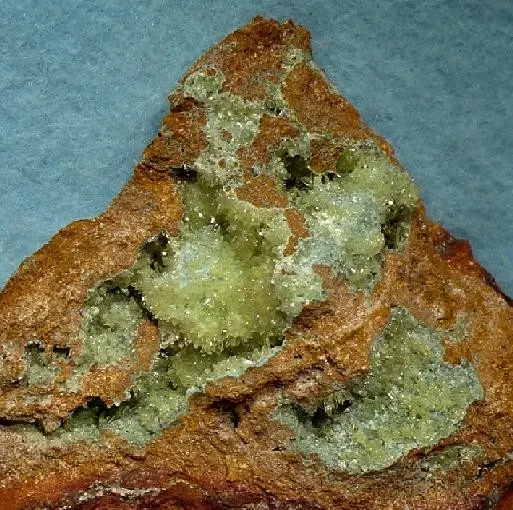

Millimetric-sized crystals lining the walls of a boxwork, always covered with turquoise. Sometimes the senegalite fills the space.

Comment

SG P21nb (non-standard setting)

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen815.999127.992
58.72%
13AlAluminiumAluminium226.98253.964
24.76%
15PPhosphorusPhosphorus130.97430.974
14.21%
1HHydrogenHydrogen51.0085.040
2.31%
Total217.970100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1975-004
  • Senegaliet

In other languages

German
IMA 1975-004 · Senegalit
Italian
Senegalite

Classification

Strunz
10th ed.

8.DE.05

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DEWith only medium-sized cations, (OH, etc.):RO4 = 3:1Group
  • 8.DE.05SenegaliteSpecies
Dana
8th ed.

42.06.07.01

  • 42Hydrated Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 42.06A2(XO4)Zq·xH2OType
  • 42.06.07Senegalite GroupGroup
  • 42.06.07.01SenegaliteSpecies
CIM

19.7.4

  • 19PhosphatesClass
  • 19.7Phosphates of Al aloneGroup
  • 19.7.4SenegaliteSpecies

Group, growth & confusion

Often grow together
1 mineral

Literature, links & citation

Citations
  1. 1976Johan, Zdenek (1976) La sénégalite, Al2(PO4) (OH)3 · H2O, un nouveau minéral. Lithos, 9 (2). 165-171 doi:10.1016/0024-4937(76)90034-7DOI: 10.1016/0024-4937(76)90034-7
  2. 1977Fleischer, Michael, Cabri, Louis J., Nickel, Ernest H., Pabst, Adolf (1977) New Mineral Names. American Mineralogist, 62 (5-6) 593-600
  3. 1979Keegan, Terry D., Araki, Takaharu, Moore, Paul B. (1979) Senegalite, Al2(OH)3(H2O)(PO4), a novel structure type. American Mineralogist, 64 (11-12) 1243-1247
  4. 1989Bleam, William F., Dec, Stephen F., Frye, James S. (1989) 27Al Solid-state nuclear magnetic resonance study of five-coordinate aluminum in augelite and senegalite. Physics and Chemistry of Minerals, 16 (8) 817-820 doi:10.1007/bf00209706DOI: 10.1007/bf00209706
  5. 2005Gineste, C. (2005) Sénégalite et phosphates associés de Kouroudiako, Falémé, Sénégal. Le Règne Minéral: 65: 13-24.
