Sharpite

Ca(UO2)3(CO3)4 · 3H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Shp
Discovered
1935
Also known as
  • Sharpiet

Where it forms, where it's found

Geological setting

Secondary mineral in oxide zone of hydrothermal uranium deposit.

Type locality
Shinkolobwe Mine
  1. Shinkolobwe
  2. Kambove Territory
  3. Haut-Katanga
  4. DR Congo

-11.0486°, 26.5508°

5recorded occurrences
Source · OpenStreetMap

Radioactivity

Physical

Hardness
123456789102.5 – 3/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Greenish-yellow · olive-green
Density
4.412 g/cm³

Optical

Optical type
Biaxial (+)
Refractive index
1.632 – 1.722
Surface relief
High
Principal indices
nα 1.632 – 1.638 · nγ 1.720 – 1.722
Pleochroism
Visible

X = Y = pale brown, very pale yellow-green; Z = pale yellow-green.

Dispersion
Weak to distinct
Extinction
Y ⊥ laths; Z ‖ elongation. Positive elongation, parallel extinction.
Notes

Pale yellow in transmitted light.

Michel-Lévy diagramhighlighted lineδ = 0.0860
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]860 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation860 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
#50
Cell parameters
a = 4.9032(4) Å · b = 15.6489(11) Å · c = 22.0414(18) Å
Ratio a:b:c
1 : 3.192 : 4.495
Unit cell volume
1691.2 ų
Z
4
Morphology

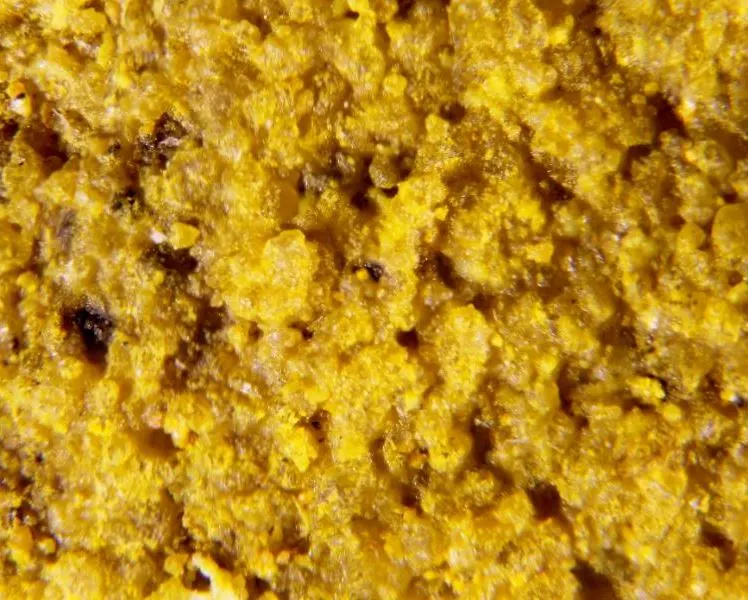

Occurs as crusts of thin, radiating fibers.

Type-locality form

Radially fibrous crust.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
92UUraniumUranium3238.029714.087
62.41%
8OOxygenOxygen2115.999335.979
29.36%
6CCarbonCarbon412.01148.044
4.20%
20CaCalciumCalcium140.07840.078
3.50%
1HHydrogenHydrogen61.0086.048
0.53%
Total1144.236100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Sharpiet

In other languages

German
Sharpit
Spanish
Sharpita
Italian
Sharpite

Classification

Strunz
10th ed.

5.EA.35

  • 5CarbonatesClass
  • 5.EUranyl CarbonatesDivision
  • 5.EAUO2:CO3 > 1:1Group
  • 5.EA.35SharpiteSpecies
Dana
8th ed.

16b.07.10.01

  • 16bHydrated Carbonates Containing Hydroxyl or HalogenClass
  • 16b.07MiscellaneousType
  • 16b.07.10— unnamed intermediate level —Group
  • 16b.07.10.01SharpiteSpecies
CIM

11.11.10

  • 11CarbonatesClass
  • 11.11Carbonates of Cr and UGroup
  • 11.11.10SharpiteSpecies

Literature, links & citation

Citations
  1. 1938Mélon, M.J. (1938) La sharpite, nouveau carbonate d'uranyle du Congo belge. Bulletin des Séances de l'Institut Royal Colonial Belge: 9: 333-336.
  2. 1939Foshag, W.F. (1939) New mineral names. American Mineralogist: 24: 658.
  3. 1951Palache, Charles; Berman, Harry; Frondel, Clifford (1951) The System of Mineralogy (7th ed.) Vol. 2 - Halides, Nitrates, Borates, Carbonates, Sulfates, Phosphates, Arsenates, Tungstates, Molybdates, Etc. John Wiley and Sons.
  4. 1984Čejka, J., Mrázek, Z., Urbanec, Z. (1984) New data on sharpite, a calcium uranyl carbonate. Neues Jahrbuch für Mineralogie - Monatshefte, 1984. 109-117
  5. 1985Dunn, Pete J., Chao, George Y., Fleischer, Michael, Ferraiolo, James A., Langley, Richard H., Pabst, Adolf, Zilczer, Janet A. (1985) New mineral names. American Mineralogist, 70 (1-2) 214-221
