Sieleckiite

Cu3Al4(PO4)2(OH)12 · 2H2O
IMA status
  • Approved
IMA symbol
Sie
Discovered
1987
IMA approved
1987
Also known as
  • IMA1987-023
  • Sieleckiiet

Where it forms, where it's found

Geological setting

Oxidized zone of a copper deposit.

Type locality
Mount Oxide Copper mine
  1. Mount Gordon
  2. Gunpowder District
  3. City of Mount Isa
  4. Queensland
  5. Australia

-19.4833°, 139.4667°

3recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Deep sky blue to royal blue (Royal Horticultural Society · London · 109A)
Streak
Light blue
Cleavage
None Observed
Fracture
Sub-Conchoidal
Density
3.02 g/cm³

Optical

Optical type
Biaxial
Refractive index
1.63 – 1.66
Surface relief
Moderate
Principal indices
nα 1.63 · nγ 1.66
Pleochroism
Weak

Colourless to very pale blue.

Dispersion
relatively strong
UV response
Not fluorescent
Michel-Lévy diagramhighlighted lineδ = 0.0300
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]300 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation300 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/m
Cell parameters
a = 11.711(2) Å · b = 6.9233(14) Å · c = 9.828(2) Å
Cell angles
β = 92.88(3) °
Ratio a:b:c
1 : 0.591 : 0.839
Unit cell volume
795.8 ų
Z
2
Twinning

None observed

Type-locality form

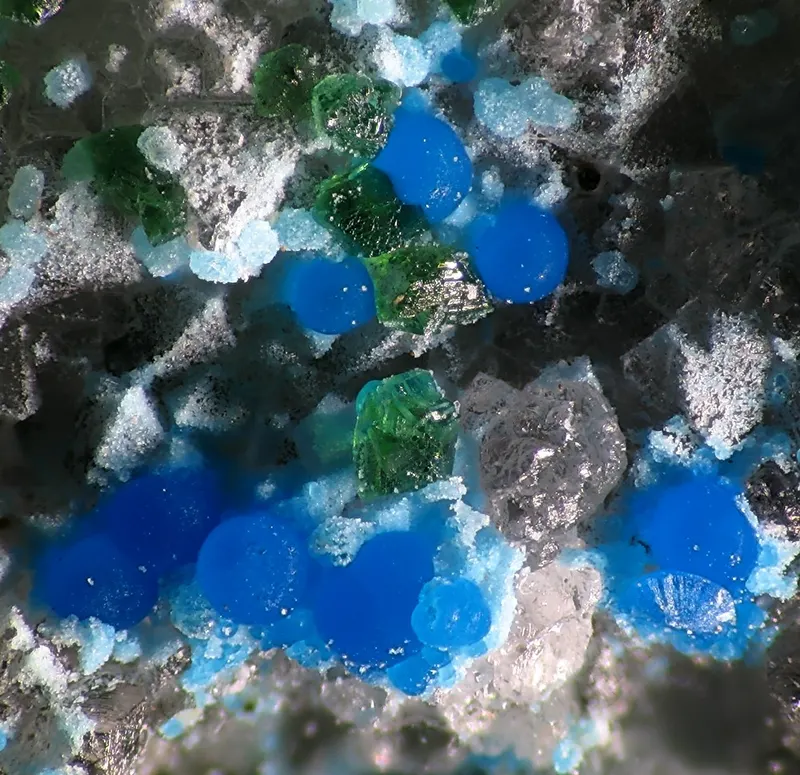

Blue spheres up to 0.5 mm in diameter, made up of fibrous radiating crystals 20-100 µm long and 1-2 µm wide.

Comment

Originally assumed to be triclinic. Shown to be monoclinic by Elliott (2017).

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2215.999351.978
48.31%
29CuCopperCopper363.546190.638
26.17%
13AlAluminiumAluminium426.982107.928
14.81%
15PPhosphorusPhosphorus230.97461.948
8.50%
1HHydrogenHydrogen161.00816.128
2.21%
Total728.620100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1987-023
  • Sieleckiiet

In other languages

German
IMA 1987-023 · Sieleckiit
Italian
Sieleckiite
Portuguese
IMA1987-023 · Sieleckiíta

Classification

Strunz
10th ed.

8.DF.25

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DFWith only medium-sized cations, (OH,etc.):RO4 > 3:1Group
  • 8.DF.25SieleckiiteSpecies
Dana
8th ed.

42.13.12.01

  • 42Hydrated Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 42.13MiscellaneousType
  • 42.13.12— unnamed intermediate level —Group
  • 42.13.12.01SieleckiiteSpecies
CIM

19.2.9

  • 19PhosphatesClass
  • 19.2Phosphates of CuGroup
  • 19.2.9SieleckiiteSpecies

Literature, links & citation

Citations
  1. 1988Birch, W. D., Pring, A. (1988) Sieleckiite, a New Copper Aluminium Phosphate from Mt Oxide, Queensland, Australia. Mineralogical Magazine, 52 (367) 515-518 doi:10.1180/minmag.1988.052.367.11 DOI: 10.1180/minmag.1988.052.367.11
  2. 1989Jambor, John L., Burke, Ernst A. J. (1989) New Mineral Names. American Mineralogist, 74 (11-12) 1399-1404
  3. 2005(2005) Sieleckiite. Handbook of Mineralogy. Mineralogical Society of America
  4. 2017Elliott, Peter (2017) Refinement of the crystal structure of sieleckiite and revision of its symmetry. Mineralogical Magazine, 81 (4) 917-922 doi:10.1180/minmag.2016.080.143DOI: 10.1180/minmag.2016.080.143
