Silicocarnotite

Ca5[(PO4)(SiO4)](PO4)
IMA status
  • Approved
IMA symbol
Scnt
IMA approved
2013
Also known as
  • Carnotite (of Kroll)
  • IMA2013-139
  • Silicocarnotiet

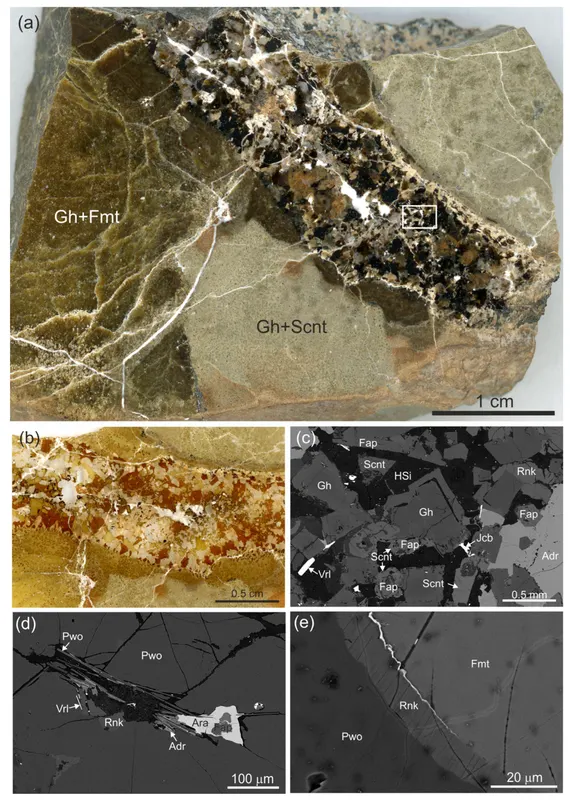

Where it forms, where it's found

Geological setting

Pyrometamorphic gehlenite-bearing rocks

Type locality
Har Parsa (Mt. Parsa)
  1. Hatrurim Basin
  2. Tamar Regional Council
  3. Beersheba Subdistrict
  4. Southern District
  5. Israel

31.2101°, 35.2833°

4recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Colourless (natural) · blue (synthetic)
Streak
White
Tenacity
brittle
Cleavage
None Observed
Fracture
Irregular/Uneven
Density
3.063 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 75° · 2V calc = 67°
Refractive index
1.618 – 1.628
Surface relief
Moderate
Principal indices
nα 1.618 · nβ 1.621 · nγ 1.628
Pleochroism
Non-pleochroic
Dispersion
medium (r > v)
UV response
none
Michel-Lévy diagramhighlighted lineδ = 0.0100
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]100 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation100 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
Pnma
Cell parameters
a = 6.7230(1) Å · b = 15.4481(2) Å · c = 10.0847(2) Å
Ratio a:b:c
1 : 2.298 : 1.500
Unit cell volume
1047.37 ų
Z
4
Parting
Not observed
Type-locality form

Common grains with ternesite

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
20CaCalciumCalcium540.078200.390
41.54%
8OOxygenOxygen1215.999191.988
39.80%
15PPhosphorusPhosphorus230.97461.948
12.84%
14SiSiliconSilicon128.08528.085
5.82%
Total482.411100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • S

Synonyms

  • Carnotite (of Kroll)
  • IMA2013-139
  • Silicocarnotiet

In other languages

German
IMA 2013-139 · Silicocarnotit
Italian
silicocarnotite

Classification

Strunz
10th ed.

9.AH.20

  • 9SilicatesClass
  • 9.ANesosilicatesDivision
  • 9.AHNesosilicates with CO3, SO4, PO4, etc.Group
  • 9.AH.20SilicocarnotiteSpecies

Group, growth & confusion

Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1883Carnot, A., Richard, A. (1883) Silicophosphate de chaux cristallisé produit dans la déphosphoration des fontes. Comptes Rendus Hebdomadaires des Séances de l'Académie des Sciences, Paris: 97: 316–320.
  2. 1911Kroll, V.A. (1911) Researches on the nature of the phosphates contained in basic slags derived from the Thomas-Gilchrist dephosphorisation process. The Journal of the Iron and Steel Institute: 84: 126–187.
  3. 1948Riley, D.P., Phil, D., Segnit, E.R. (1948) An optical and X-ray examination of the basic-slag mineral silicocarnotite. Mineralogical Magazine: 28: 496-504.
  4. 1971Dickens, B., Brown, W. E. (1971) The crystal structure of Ca5(PO4)2SiO4 (Silico-Carnotite). TMPM Tschermaks Mineralogische und Petrographische Mitteilungen, 16 (1). 1-27 doi:10.1007/bf01099075DOI: 10.1007/bf01099075
  5. 2014Galuskin, E. et al. (2014): Silicocarnotite, an old and potentially new mineral from the Negev Desert, Israel. 21st General Meeting of the IMA (IMA2014), Gauteng, South Africa, September 1-5; Abstract Volume, 377.
