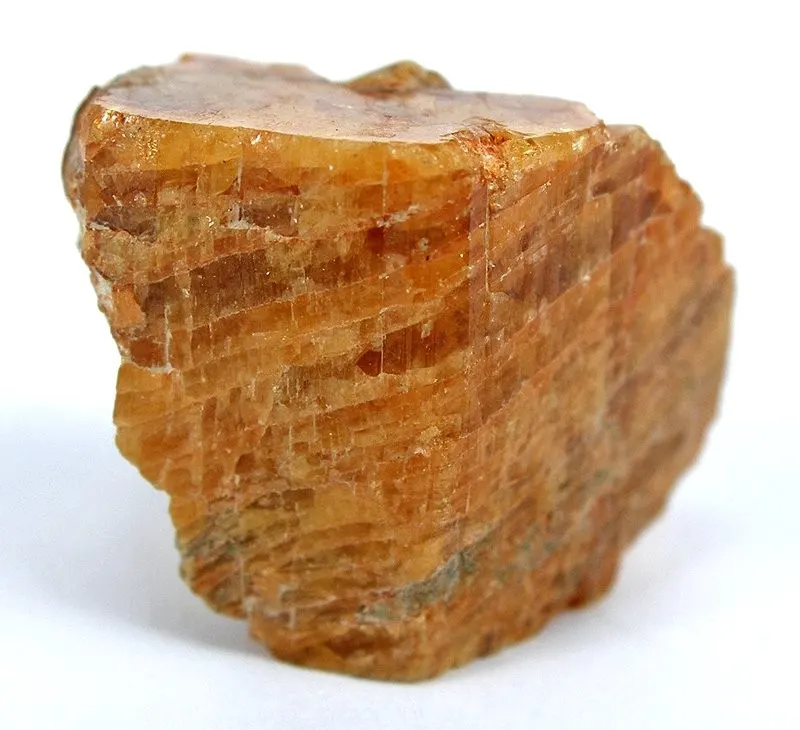

Simpsonite

Al4Ta3O13(OH)
IMA status
  • Approved
  • Grandfathered
IMA symbol
Spn
Discovered
1938
Also known as
  • Calogerasita
  • Calogerasite
  • Simpsonite (of Bowley)

Where it forms, where it's found

Geological setting

Primary mineral in Ta-rich granite pegmatites.

Type locality
Tabba Tabba pegmatite (Tabba Tabba Tantalum Mine)
  1. East Pilbara Shire
  2. Western Australia
  3. Australia

-20.6667°, 118.9212°

16recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789107 – 7.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Translucent
Colour
Yellow · light brown or colourless · gray
Streak
white
Tenacity
brittle
Cleavage
None Observed
Density
6.35 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
2.025 – 2.045
Surface relief
Very high
Principal indices
nω 2.045 · nε 2.025
UV response
May fluoresce blue-white, SW-UV.
Michel-Lévy diagramhighlighted lineδ = 0.0200
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]200 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation200 nm
Order1st order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
#75
Cell parameters
a = 7.37 Å · c = 4.51 Å
Z
1
Morphology

Crystals tabular to short prismatic [0001].

Type-locality form

Poorly formed crystals approximating hexagonal prisms but showing only a few faces.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
73TaTantalumTantalum3180.948542.844
61.98%
8OOxygenOxygen1415.999223.986
25.58%
13AlAluminiumAluminium426.982107.928
12.32%
1HHydrogenHydrogen11.0081.008
0.12%
Total875.766100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Calogerasita
  • Calogerasite
  • Simpsonite (of Bowley)

In other languages

French
Simpsonite
German
Simpsonit
Spanish
Simpsonita
Italian
Simpsonite
Japanese
シンプソン石

Classification

Strunz
10th ed.

4.DC.10

  • 4OxidesClass
  • 4.DMetal: Oxygen = 1:2 and similarDivision
  • 4.DCWith medium-sized cations; sheets of edge-sharing octahedraGroup
  • 4.DC.10SimpsoniteSpecies
Dana
8th ed.

08.07.05.01

  • 08Multiple Oxides Containing Niobium, Tantalum or TitaniumClass
  • 08.07MiscellaneousType
  • 08.07.05— unnamed intermediate level —Group
  • 08.07.05.01SimpsoniteSpecies
CIM

18.1.19

  • 18Niobates and TantalatesClass
  • 18.1Niobates and tantalates containing neither rare earths nor UGroup
  • 18.1.19SimpsoniteSpecies

Literature, links & citation

Citations
  1. 1938Bowley, H. (1938) Simpsonite. Report of the Department of Mines Western Australia: 93: 88-88.
  2. 1939Bowley, H. (1939) Simpsonite (sp. nov) from Tabba Tabba, western Australia. Journal of the Royal Society of Western Australia: 25: 89–92.
  3. 1939Taylor, L.E.R. (1939) X-ray studies of simpsonite. Journal of the Royal Society of Western Australia: 25: 93-97.
  4. 1940(1940) New mineral names. American Mineralogist, 25 (4) 312-314
  5. 1944Palache, Charles, Berman, Harry, Frondel, Clifford (1944) The System of Mineralogy (7th ed.) Vol. 1 - Elements, Sulfides, Sulfosalts, Oxides. John Wiley and Sons, New York.
