Sonoraite

Fe3+(Te4+O3)(OH) · H2O
IMA status
  • Approved
IMA symbol
Son
Discovered
1968
IMA approved
1968
Also known as
  • IMA1968-001
  • Sonoraiet

Where it forms, where it's found

Type locality
Moctezuma Mine
  1. Moctezuma
  2. Moctezuma Municipality
  3. Sonora
  4. Mexico

29.6942°, -109.7125°

12recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Dark Yellow-green
Density
3.95 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 20 – 25° · 2V calc = 64°
Refractive index
2.018 – 2.025
Surface relief
Very high
Principal indices
nα 2.018 · nβ 2.023 · nγ 2.025
Dispersion
relatively weak
Michel-Lévy diagramhighlighted lineδ = 0.0070
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]70 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation70 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/c
Cell parameters
a = 10.984(2) Å · b = 10.268(1) Å · c = 7.917(2) Å
Cell angles
β = 108.49(2) °
Ratio a:b:c
1 : 0.935 : 0.721
Z
8
Morphology

Thin platy. Pinacoid (100) and rhombic prisms (110) and (011).

Type-locality form

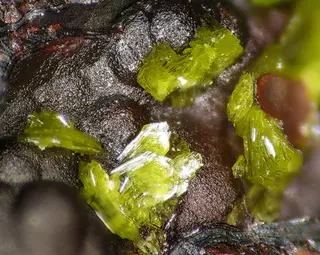

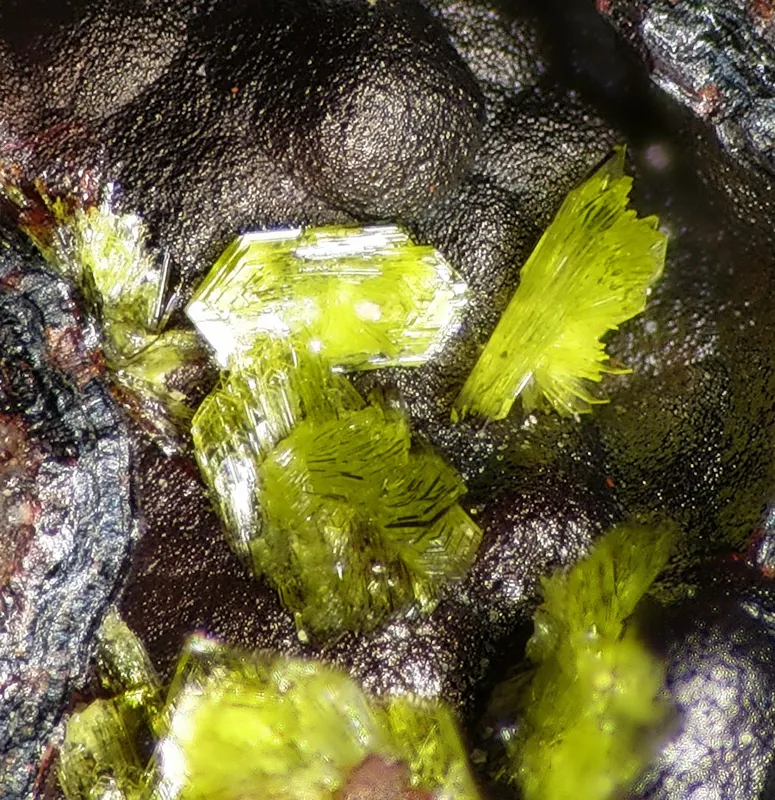

Blade-like single crystals and sheaves of, 0.5 to 1.0 mm across. Rosettes.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
52TeTelluriumTellurium1127.600127.600
47.89%
8OOxygenOxygen515.99979.995
30.02%
26FeIronIron155.84555.845
20.96%
1HHydrogenHydrogen31.0083.024
1.13%
Total266.464100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1968-001
  • Sonoraiet

In other languages

German
IMA 1968-001 · Sonorait
Italian
Sonoraite

Classification

Strunz
10th ed.

4.JN.05

  • 4OxidesClass
  • 4.JArsenites, antimonites, bismuthites, sulfites, selenites, tellurites; iodatesDivision
  • 4.JNTellurites with additional anions, with H2OGroup
  • 4.JN.05SonoraiteSpecies
Dana
8th ed.

34.07.01.01

  • 34Selenites, Tellurites and SulfitesClass
  • 34.07Hydrated Selenites, Tellurites and Sulfites containing Hydroxyl or HalogenType
  • 34.07.01— unnamed intermediate level —Group
  • 34.07.01.01SonoraiteSpecies
CIM

28.3.25

  • 28Selenites, Selenates, Tellurites, and TelluratesClass
  • 28.3TelluritesGroup
  • 28.3.25SonoraiteSpecies

Literature, links & citation

Citations
  1. 1968Gaines, Richard V., Donnay, Gabrielle, Hey, and Max H. (1968) Sonoraite. American Mineralogist, 53 (11-12) 1828-1832
  2. 1970Donnay, Gabrielle; Stewart, J. M.; Preston, H. (1970) The crystal structure of sonoraite, Fe3+Te4+O3(OH)·H2O. TMPM Tschermaks Mineralogische und Petrographische Mitteilungen, 14 (1). 27-44 doi:10.1007/bf01081778DOI: 10.1007/bf01081778
  3. 2005(2005) Sonoraite. Handbook of Mineralogy. Mineralogical Society of America
  4. 2008Frost, Ray L., Keeffe, Eloise C. (2008) Raman spectroscopic study of the tellurite mineral: sonoraite Fe3+Te4+O3(OH)·H2O. Journal of Raman Spectroscopy, 40 (2). 133-136 doi:10.1002/jrs.2091DOI: 10.1002/jrs.2091
  5. 2015Frost, Ray L., López, Andrés, Scholz, Ricardo (2015) A SEM, EDS and vibrational spectroscopic study of the tellurite mineral: Sonoraite Fe3+Te4+O3(OH)·H2O. Spectrochimica Acta Part A: Molecular and Biomolecular Spectroscopy, 147. 225-229 doi:10.1016/j.saa.2015.03.089DOI: 10.1016/j.saa.2015.03.089
