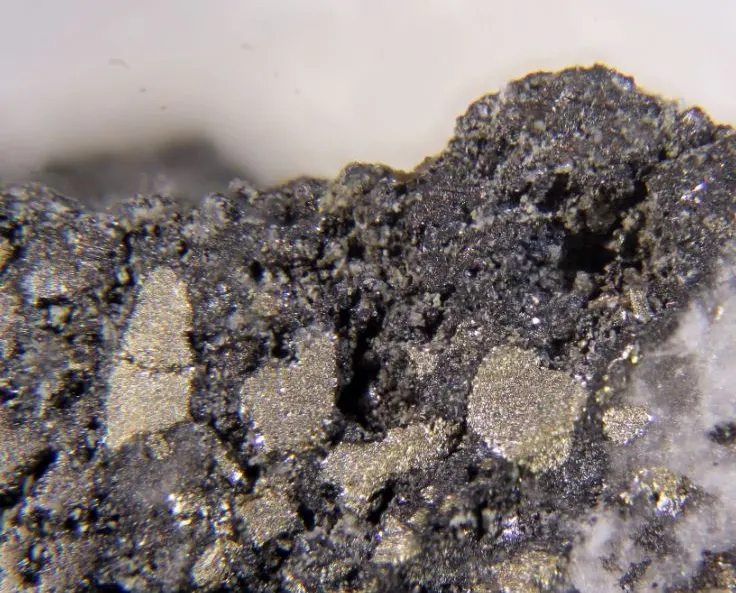

Stannopalladinite

Pd3Sn2 (?)
IMA status
  • Approved
  • Grandfathered
IMA symbol
Spdn
Discovered
1947
Also known as
  • Stannopalladiniet

Where it forms, where it's found

Type locality
Ugol'nyi Ruchei Mine
  1. Noril'sk Cu-Ni deposit
  2. Norilsk-Talnakh Mining Region
  3. Taimyr Peninsula
  4. Taymyrskiy Autonomous Okrug
  5. Krasnoyarsk Krai
  6. Russia
15recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104.5 – 5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Metallic
Transparency
Opaque
Colour
dark grey · brown-rose · light brownish red
Density
9.781 g/cm³

Optical

Optical colour
pale pink
Anisotropism
Strong, lilac-red to gray-blue
Bireflectance
bireflectance is noticeable only in oil immersion.
Tropism
Anisotropic
Reflectance R%
(46.2,48.5) 460, (50.3,51.5) 500, (53.0,54.0) 540, (54.0,55.5) 580, (56.0,57.8) 620, (57.0,60.0) 660, (57.0,61.0) 700
Reflected-light panel
53.4 %anisotropic · dual curve
Specimen sRGB 255, 178, 90
White reference100 % reflector under same lamp
R₁ R₂
Mode
Bireflectance
bireflectance is noticeable only in oil immersion.
Anisotropism
Strong, lilac-red to gray-blue
Reflected colour
pale pink

Crystallography

Crystal system
Orthorhombic
Cell parameters
a = 14.634(2) Å · b = 8.5253(6) Å · c = 4.5946(3) Å
Ratio a:b:c
1 : 0.583 : 0.314
Z
8
Twinning

Occasionally exhibited polysynthetically.

Type-locality form

spherical and ovoid-shaped grains up to 0.08 mm, closely intergrown with tetraferroplatinum as part of flattened, prismatic crystals up to 6 mm long

Comment

Point Group: n.d.; Space Group: n.d. (Pmmm?) Since the structure of stannopalladinite cannot be refined due to the poor quality of the studied material

Chemical composition

Impurities
  • Pt
  • Fe
  • Ni

Synonyms

  • Stannopalladiniet

In other languages

German
Stannopalladinit
Italian
Stannopalladinite

Classification

Strunz
10th ed.

1.AG.25

  • 1ElementsClass
  • 1.AMetals and Intermetallic AlloysDivision
  • 1.AGPGE-metal alloysGroup
  • 1.AG.25StannopalladiniteSpecies
Dana
8th ed.

01.02.09.01

  • 01Native Elements and AlloysClass
  • 01.02Platinum Group Metals and AlloysType
  • 01.02.09— unnamed intermediate level —Group
  • 01.02.09.01StannopalladiniteSpecies
CIM

1.69

  • 1Elements and Alloys (including the arsenides, antimonides and bismuthides of Cu, Ag and Au)Class
  • 1.69— unnamed intermediate level —Group
  • 1.69StannopalladiniteSpecies

Literature, links & citation

Citations
  1. Sulfide Copper-Nickel Ores of the Noril'sk Deposits, Nauka Press, Moscow, 243 pp.
  2. Tin in Magmatic and Postmagmatic Processes, Nauka Press, Moscow: 143-170.
  3. 1947Maslenitzky, I.N., Faleev, P.V., Iskyul, E.V. (1947) Tin-bearing minerals of the platinum group in sulfide copper-nickel ores. Doklady Akademii Nauk SSSR: 58: 1137-1140.
  4. 1950Fleischer, M. (1950) New mineral names. American Mineralogist, 35 (3-4) 333-336
  5. 1970Chernyaev, L.A., Yushko-Zakharova, O.E. (1970) Diagnosis of micro-inclusions of minerals of the platinum group by means of the JXA-3A X-ray spectrographic analyzer. In Physical Properties of Rare-metal Minerals ans Methods for their Study. Izdat. "Nauka": 80-81. (in Russian)
