Starovaite

KCu5O(VO4)3
IMA status
  • Approved
IMA symbol
Sro
Discovered
2011
IMA approved
2011
Also known as
  • IMA2011-085
  • Starovaiet

Where it forms, where it's found

Geological setting

In the sublimates of a fumarole.

Type locality
Yadovitaya fumarole
  1. Second scoria cone
  2. Northern Breakthrough (North Breach)
  3. Great Fissure eruption (Main Fracture)
  4. Tolbachik Volcanic field
  5. Milkovsky District
  6. Kamchatka Krai
  7. Russia

55.8333°, 160.3333°

2recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103.5 – 4/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Colour
Golden brown to reddish brown
Streak
Yellowish brown
Tenacity
brittle
Cleavage
None Observed
Fracture
Irregular/Uneven
Density
4.54 g/cm³

Optical

Pleochroism
Non-pleochroic
Optical colour
Grey with a brownish hue
Anisotropism
Weak
Bireflectance
Weak
Internal reflections
Distinct red-brown
Tropism
Anisotropic
Reflectance R%
(15.8, 14.6) 400, (15.2, 13.8) 420, (14.8, 13.1) 440, (14.4, 12.6) 460, (14.0, 12.3) 480, (13.7, 12.0) 500, (13.5, 11.8) 520, (13.3, 11.6) 540, (13.1, 11.5) 560, (13.0, 11.4) 580, (12.9, 11.4) 600, (12.8, 11.3) 620, (12.7, 11.3) 640, (12.5, 11.2) 660, (12.4, 11.2) 680, (12.3, 11.1) 700
Reflected-light panel
13.5 %anisotropic · dual curve
Specimen sRGB 134, 94, 53
White reference100 % reflector under same lamp
R₁ R₂
Mode
Bireflectance
Weak
Anisotropism
Weak
Reflected colour
Grey with a brownish hue
Internal reflections
Distinct red-brown

Crystallography

Crystal system
Triclinic
Space group
P-1
Cell parameters
a = 6.08(4) Å · b = 8.26(5) Å · c = 10.71(6) Å
Cell angles
α = 97.8(1) ° · β = 92.4(1) ° · γ = 90.4(1) °
Ratio a:b:c
1 : 1.359 : 1.762
Unit cell volume
532 ų
Z
2
Parting
None observed
Type-locality form

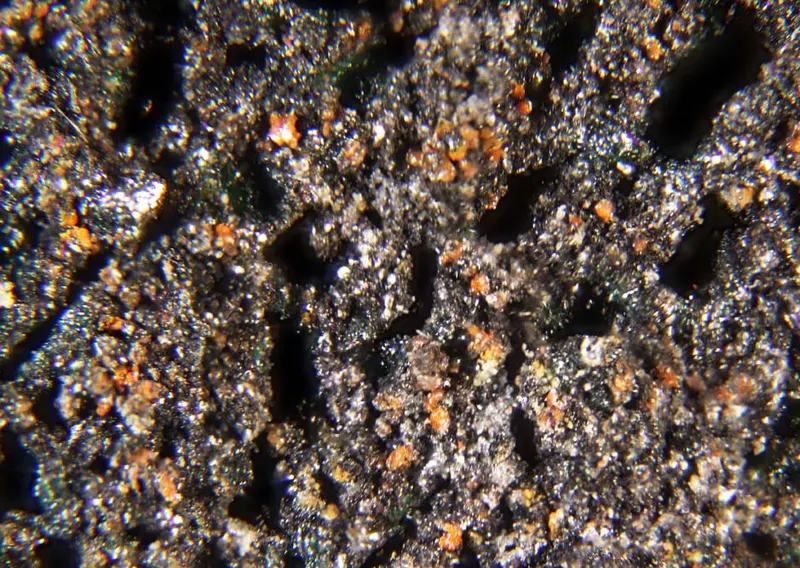

Prismatic crystals up to 3 x 6 x 20 µm or divergent long-prismatic crystals up to 1 x 3 x 70 µm. The crystals are combined in sprays, sheaf-like aggregates or crusts up to 0.3 x 0.5 mm overgrowing lammerite.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
29CuCopperCopper563.546317.730
44.27%
8OOxygenOxygen1315.999207.987
28.98%
23VVanadiumVanadium350.942152.826
21.30%
19KPotassiumPotassium139.09839.098
5.45%
Total717.641100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2011-085
  • Starovaiet

In other languages

German
IMA 2011-085 · Starovait
Italian
starovaite

Classification

Strunz
10th ed.

8.BF.25

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.BPhosphates, etc., with additional anions, without H2ODivision
  • 8.BFWith medium-sized and large cations, (OH, etc.):RO4< 0.5:1Group
  • 8.BF.25StarovaiteSpecies

Literature, links & citation

Citations
  1. 2012Williams, P. A., Hatert, F., Pasero, M., Mills, S. J. (2012) New minerals and nomenclature modifications approved in 2012. CNMNC Newsletter No 12. Mineralogical Magazine, 76 (1) 151-155 doi:10.1180/minmag.2012.076.1.151 DOI: 10.1180/minmag.2012.076.1.151
  2. 2013Pekov, Igor V., Zelenski, Michael E., Yapaskurt, Vasiliy O., Polekhovsky, Yury S., Murashko, M Ikhailn. (2013) Starovaite, KCu5O(VO4)3, a new mineral from fumarole sublimates of the Tolbachik volcano, Kamchatka, Russia. European Journal of Mineralogy, 25 (1) 91-96 doi:10.1127/0935-1221/2013/0025-2258 DOI: 10.1127/0935-1221/2013/0025-2258
  3. 2014(2014) Starovaite. Handbook of Mineralogy. Mineralogical Society of America
