Steiningerite

Ba2Zr2(Si4O12)O2
IMA status
  • Approved
  • Pending publication
IMA symbol
Sngr
Also known as
  • Steiningeriet
  • Unnamed (Ba-Zr Silicate)

Where it forms, where it's found

Geological setting

along fissures and in cavities in melilite nephelinite

Type locality
Löhley
  1. Üdersdorf
  2. Daun
  3. Vulkaneifel
  4. Rhineland-Palatinate
  5. Germany

50.1592°, 6.8114°

1recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103.5 – 4/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
colourless or creamy white
Streak
white
Tenacity
brittle
Cleavage
None Observed
Fracture
Irregular/Uneven
Density
3.78 g/cm³

Optical

Optical type
Uniaxial (+)
Refractive index
1.711 – 1.75
Surface relief
High
Principal indices
nω 1.711 · nε 1.750
Pleochroism
Non-pleochroic
UV response
weak orange fluorescence under ultraviolet light (λ = 254 nm).
Michel-Lévy diagramhighlighted lineδ = 0.0390
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]390 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation390 nm
Order1st order
XPL colour

Crystallography

Crystal system
Tetragonal
Space group
P4/mbm
Cell parameters
a = 8.894(2) Å · c = 8.051(2) Å
Z
2
Parting
none
Type-locality form

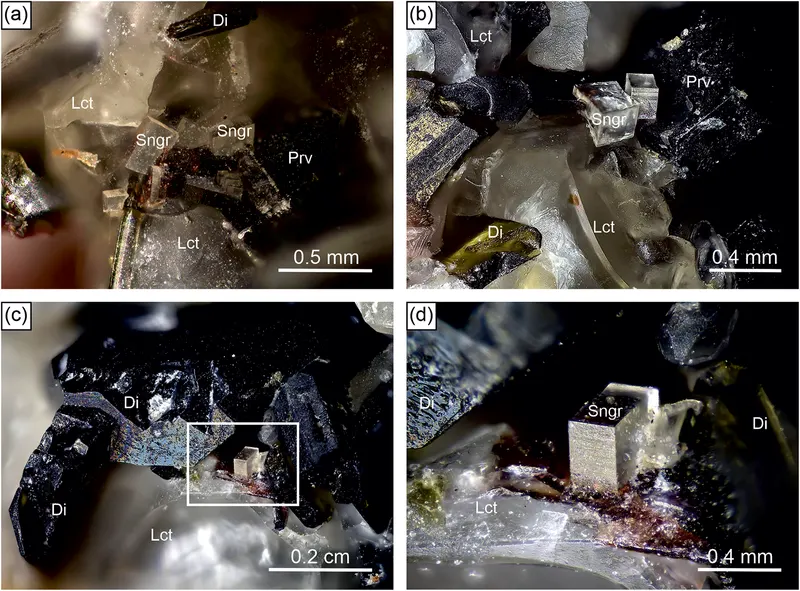

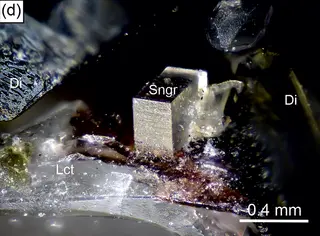

euhedral, short prismatic to thick tabular, partly pseudocubic crystals up to 100 μm in size but also rarely occurs as individuals reaching 0.5 mm in size.

Comment

Another crystal from the same material has <i>a</i> = 8.901(1) Å, <i>c</i> = 8.074 Å, <i>V </i>= 639.69(13) Å3 (Kolitsch et al., 2003).

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
56BaBariumBarium2137.327274.654
34.62%
8OOxygenOxygen1415.999223.986
28.23%
40ZrZirconiumZirconium291.224182.448
22.99%
14SiSiliconSilicon428.085112.340
14.16%
Total793.428100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From Mindat formula

Synonyms

  • Steiningeriet
  • Unnamed (Ba-Zr Silicate)

In other languages

German
Steiningerit

Classification

Strunz
10th ed.

9.CE

  • 9SilicatesClass
  • 9.CCyclosilicatesDivision
  • 9.CE[Si4O12]8- 4-membered single rings (vierer-Einfachringe), without insular complex anionsGroup
  • 9.CESteiningeriteSpecies

Literature, links & citation

Citations
  1. Juroszek, R., Krüger, B., Kolitsch, U., Frenz, G., and Blaß, G.: Steiningerite, IMA 2024-016, in: CNMNC Newsletter 80, Eur. J. Mineral., 36, https://doi.org/10.5194/ejm-36-599-2024, 2024.
  2. 2003Kolitsch, U., Lengauer, C. L., Krause, W., Bernhardt, H.-J., Medenbach, O., Blaß, G. (2003): BaZrSi2O7, a new mineral from the Eifel volcanic area, Germany. Mitteilungen der Österreichischen Mineralogischen Gesellschaft 148, 199-200.
  3. 2009Blass, G., Graf, H.-W., Kolitsch, U., Sebold, D. (2009): Die Neufunde aus der Vulkaneifel (II) [The new finds from the volcanic Eifel (II)]. Mineralien-Welt 20 (2), 38-49.
  4. 2024Juroszek, Rafał; Krüger, Biljana; Kolitsch, Uwe; Frenz, Günter; Blaβ, Günter (2024) Steiningerite, Ba2Zr2(Si4O12)O2, a new cyclosilicate from the Löhley quarry, Germany. Mineralogical Magazine, 1-11 doi:10.1180/mgm.2024.102DOI: 10.1180/mgm.2024.102
