Sterryite

Cu(Ag,Cu)3Pb19(Sb,As)22(As)2S56
IMA status
  • Approved
IMA symbol
Srr
Discovered
1966
IMA approved
1966
Also known as
  • IMA1966-020
  • Sterryiet

Where it forms, where it's found

Type locality
Taylor Pit
  1. Madoc
  2. Centre Hastings Municipality
  3. Hastings County
  4. Ontario
  5. Canada

44.5022°, -77.4664°

5recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789103.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Opaque
Colour
Black
Streak
Black
Tenacity
brittle
Cleavage
Perfect

Parallel to c

Fracture
Irregular/Uneven
Density
5.91 g/cm³

Optical

Pleochroism
Strong

Crystallography

Crystal system
Monoclinic
Cell parameters
a = 8.1891(10) Å · b = 28.5294(13) Å · c = 42.98(2) Å
Cell angles
β = 94.896(8) °
Ratio a:b:c
1 : 3.484 : 5.248
Morphology

Rod-like to acicular crystals.

Twinning

Commonly twinned on (001).

Type-locality form

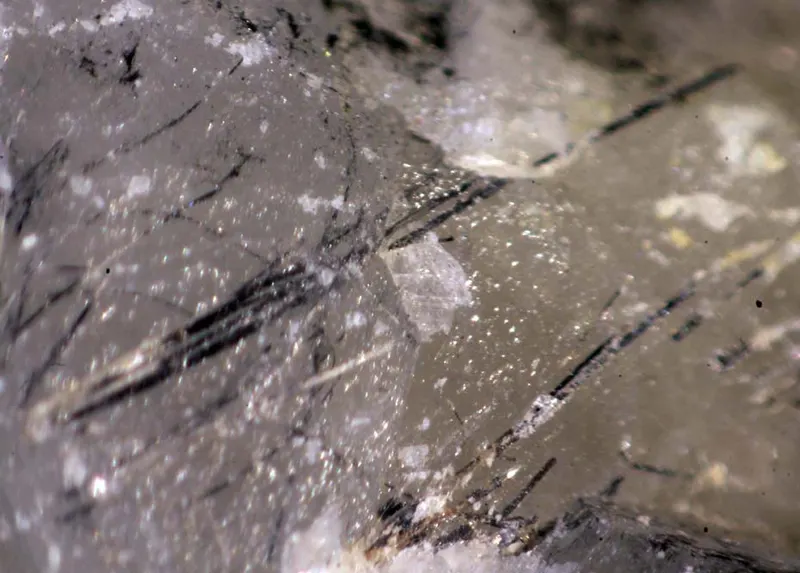

Needlelike laths which cut veenite, as single anhedral grains. Loose fragments are plumose and characteristically occur as bundles of fibres.

Comment

Space group P21/n. Originally assumed to be orthorhombic, Pbam, with 28.48, 42.62, 4.09 A.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
82PbLeadLead19207.2003936.800
36.50%
51SbAntimonyAntimony22121.7602678.720
24.83%
33AsArsenicArsenic2474.9221798.128
16.67%
16SSulfurSulfur5632.0601795.360
16.64%
47AgSilverSilver3107.868323.604
3.00%
29CuCopperCopper463.546254.184
2.36%
Total10786.796100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Ag
  • Cu

Synonyms

  • IMA1966-020
  • Sterryiet

In other languages

German
IMA 1966-020 · Sterryit
Italian
Sterryite

Classification

Strunz
10th ed.

2.LB.30

  • 2Sulfides and SulfosaltsClass
  • 2.LUnclassified SulfosaltsDivision
  • 2.LBWith essential PbGroup
  • 2.LB.30SterryiteSpecies
Dana
8th ed.

03.05.03.01

  • 03SulfosaltsClass
  • 03.052.5 < ø < 3Type
  • 03.05.03— unnamed intermediate level —Group
  • 03.05.03.01SterryiteSpecies
CIM

5.7.31

  • 5Sulphosalts - Sulpharsenites and Sulphobismuthites (those containing Sn, Ge,or V are in Section 6)Class
  • 5.7Sulpharsenites etc. of Pb and other metalsGroup
  • 5.7.31SterryiteSpecies

Group, growth & confusion

In the same group
1 members

Literature, links & citation

Citations
  1. 1967Jambor, John Leslie (1967) New lead sulfantimonides from Madoc, Ontario. Part 1. The Canadian Mineralogist, 9 (1) 7-24
  2. 1967Jambor, John Leslie (1967) New lead sulfantimonides from Madoc, Ontario. Part 2 - mineral descriptions. The Canadian Mineralogist, 9 (2) 191-213
  3. 1968Jambor, John Leslie (1968) New lead sulfantimonides from Madoc, Ontario. Part 3--Syntheses, paragenesis, origin. The Canadian Mineralogist, 9 (4). 505-521
  4. 1982Jambor, John L.; Laflamme, J. H. G.; Walker, D. A. (1982) A Re-examination of the Madoc Sulfosalts, in Ontario. The Mineralogical Record, 13 (2). 93-100
  5. 2005(2005) Sterryite. Handbook of Mineralogy. Mineralogical Society of America
