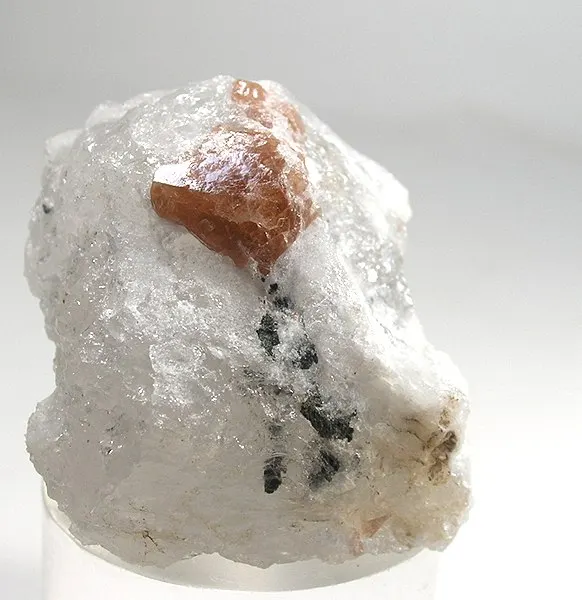

Stillwellite-(Ce)

CeBSiO5
IMA status
  • Approved
  • Grandfathered
IMA symbol
Swl-Ce
Also known as
  • Stillwelliet-(Ce)

Where it forms, where it's found

Geological setting

A metasomatic replacement of metamorphosed calcareous sediments.

Type locality
Mary Kathleen Mine
  1. Mary Kathleen district
  2. Rosebud Station
  3. Cloncurry Shire
  4. Queensland
  5. Australia

-20.7471°, 140.0121°

16recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789106.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Pale violet-gray · light pink · brownish yellow · orange
Streak
White
Cleavage
Imperfect/Fair

One imperfect

Fracture
Conchoidal
Density
4.57 g/cm³

Optical

Optical type
Uniaxial (+)
Refractive index
1.765 – 1.78
Surface relief
High
Principal indices
nω 1.765 · nε 1.78
Notes

to biaxial (+)

Michel-Lévy diagramhighlighted lineδ = 0.0150
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]150 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation150 nm
Order1st order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
#76
Cell parameters
a = 6.843(2) Å · c = 6.701(1) Å
Z
3
Twinning

Observed about [100].

Type-locality form

As flat rhombohedral crystals, to 5 mm. Also massive.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
58CeCeriumCerium1140.116140.116
54.10%
8OOxygenOxygen515.99979.995
30.89%
14SiSiliconSilicon128.08528.085
10.84%
5BBoronBoron110.81010.810
4.17%
Total259.006100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Stillwelliet-(Ce)

In other languages

German
Stillwellit-(Ce)
Spanish
Stillwellite-(Ce)
Italian
Stillwellite- · Stillwellite-(Ce)
Chinese
菱硼硅鈰礦
Russian
Стилвеллит

Classification

Strunz
10th ed.

9.AJ.25

  • 9SilicatesClass
  • 9.ANesosilicatesDivision
  • 9.AJNesosilicates with BO3 triangles and/or B[4], Be[4] tetrahedra, cornersharing with SiO4Group
  • 9.AJ.25Stillwellite-(Ce)Species
Dana
8th ed.

54.02.03.02

  • 54Nesosilicates Borosilicates and Some BeryllosilicatesClass
  • 54.02Borosilicates and Some Beryllosilicates with B in [4] coordinationType
  • 54.02.03Cappellanite - Stillwellite groupGroup
  • 54.02.03.02Stillwellite-(Ce)Species
CIM

17.5.18

  • 17Silicates Containing other AnionsClass
  • 17.5BorosilicatesGroup
  • 17.5.18Stillwellite-(Ce)Species

Literature, links & citation

Citations
  1. 1955McAndrew, J., Scott, T. R. (1955) Stillwellite, a New Rare-Earth Mineral from Queensland. Nature, 176 (4480). 509-510 doi:10.1038/176509b0DOI: 10.1038/176509b0
  2. 1956Fleischer, M. (1956) New mineral names. American Mineralogist, 41 (3-4). 370-372
  3. 1957Gay, P. (1957) An X-Ray Investigation of some Rare-Earth Silicates: Cerite, Lessingite, Beckelite, Britholite and Stillwellite. Mineralogical Magazine, 31, 455-468.
  4. 1967Voronkov, A.A., Pyatenko, Y.A. (1967) X-ray diffraction study of the atomic structure of stillwellite CeBO[SiO4]. Soviet Physics - Crystallography: 12: 214-220.
  5. 1987Nickel, Ernest H., Mandarino, Joseph A. (1987) Procedures involving the IMA Commission on New Minerals and Mineral Names and guidelines on mineral nomenclature. American Mineralogist, 72 (9-10) 1031-1042
