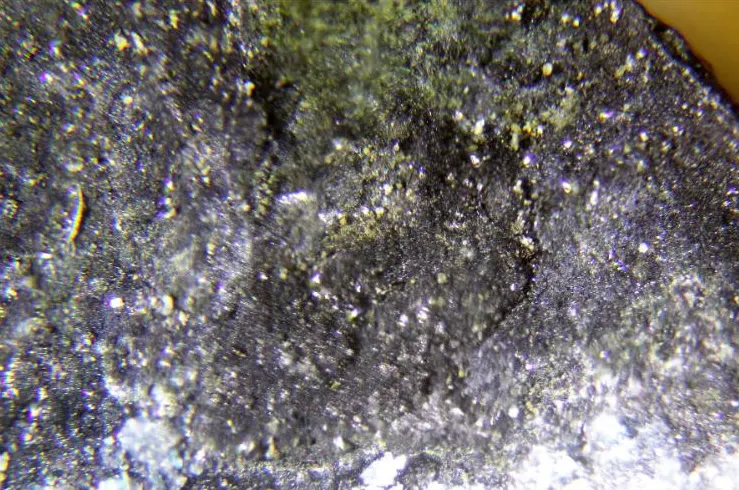

Stoiberite

Cu5O2(VO4)2
IMA status
  • Approved
IMA symbol
Sbe
Discovered
1979
IMA approved
1979
Also known as
  • IMA1979-016
  • Stoiberiet

Where it forms, where it's found

Geological setting

Oxide zone of a fumarole.

Type locality
Izalco Volcano
  1. Sonsonate Department
  2. El Salvador

13.8137°, -89.6326°

2recorded occurrences
Source · OpenStreetMap

Physical

Transparency
Opaque
Colour
Black
Streak
Reddish brown
Density
5.0 g/cm³

Optical

Optical type
Biaxial
Pleochroism
Weak

Bluish white

Optical colour
Very light gray
Anisotropism
Weak
Tropism
Anisotropic
UV response
Not fluorescent.
Notes

Reflectivity less than galena.

Crystallography

Crystal system
Monoclinic
Cell parameters
a = 15.654(15) Å · b = 6.054(4) Å · c = 8.385(11) Å
Cell angles
β = 102.29(12) °
Ratio a:b:c
1 : 0.387 : 0.536
Z
4
Morphology

Platy with dominant (100).

Type-locality form

Incrustation of black platy crystals less than 100 µm in greatest dimension, coat basaltic breccia fragments.

Comment

Space Group: P21/n

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
29CuCopperCopper563.546317.730
54.82%
8OOxygenOxygen1015.999159.990
27.60%
23VVanadiumVanadium250.942101.884
17.58%
Total579.604100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1979-016
  • Stoiberiet

In other languages

German
IMA 1979-016 · Stoiberit
Italian
Stoiberite

Classification

Strunz
10th ed.

8.BB.75

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.BPhosphates, etc., with additional anions, without H2ODivision
  • 8.BBWith only medium-sized cations, (OH, etc.):RO4 about 1:1Group
  • 8.BB.75StoiberiteSpecies
Dana
8th ed.

41.04.05.01

  • 41Anhydrous Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 41.04(AB)5(XO4)2ZqType
  • 41.04.05— unnamed intermediate level —Group
  • 41.04.05.01StoiberiteSpecies
CIM

21.1.9

  • 21Vanadates (and vanadates with arsenate or phosphate)Class
  • 21.1Vanadates of the alkalis and CuGroup
  • 21.1.9StoiberiteSpecies

Literature, links & citation

Citations
  1. 1967Thompson, W. (1967) Report of the Dartmouth Geology '66 trip to Guatemala and El Salvador. Rocks and Minerals: 42: 420.
  2. 1973Shannon, R.D., Calvo, C. (1973) Crystal structure of Cu5V2O10. Acta Crystallographica: B29: 1338-1345.
  3. 1979Birnie, Richard W., Hughes, John M. (1979) Stoiberite, Cu5V2O10, a new copper vanadate from Izalco volcano, El Salvador, Central America. American Mineralogist, 64 (9-10) 941-944
  4. 1980Wilson, Wendell E. (1980) Abstracts of New Mineral Descriptions. The Mineralogical Record, 11 (2) 111-112
  5. 2005(2005) Stoiberite. Handbook of Mineralogy. Mineralogical Society of America
