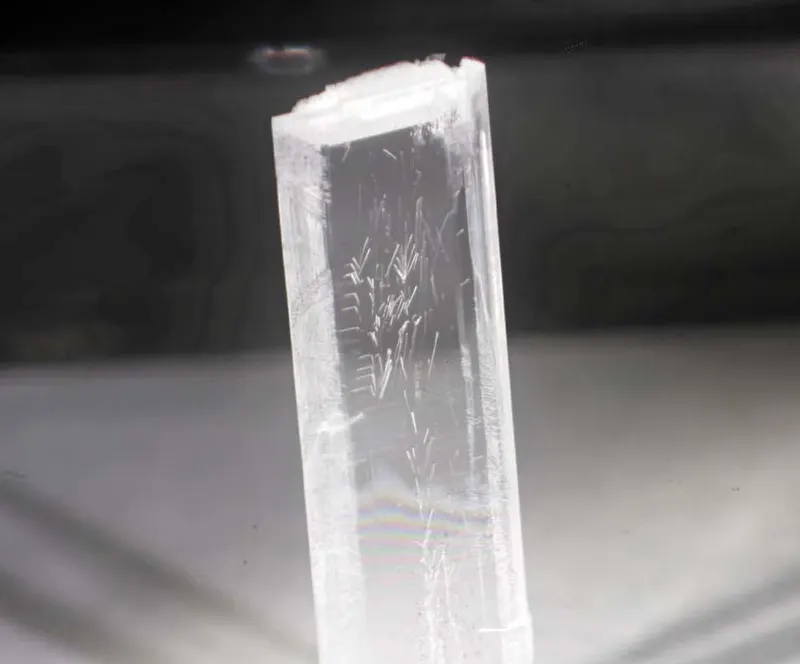

Strontioginorite

CaSrB14O20(OH)6 · 5H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Sgnr
Discovered
1959
Also known as
  • Strontioginoriet
  • Strontioginorita
  • Volkovite

Where it forms, where it's found

Type locality
Königshall-Hindenburg mine
  1. Reyershausen
  2. Bovenden
  3. Göttingen District
  4. Lower Saxony
  5. Germany

51.6126°, 9.9906°

7recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102 – 3/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Colourless
Streak
White
Cleavage
Perfect

(010) perfect, (001) very good

Easily deformed

Density
2.25 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 53° · 2V calc = 54°
Refractive index
1.512 – 1.577
Surface relief
Moderate
Principal indices
nα 1.512 · nβ 1.524 · nγ 1.577
Dispersion
strong
Michel-Lévy diagramhighlighted lineδ = 0.0650
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]650 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation650 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/a
Cell parameters
a = 12.817(8) Å · b = 14.448(8) Å · c = 12.783(8) Å
Cell angles
β = 101.42(8) °
Ratio a:b:c
1 : 1.127 : 0.997
Morphology

Forms include (110), (010), and (111). Also (001), (100), (250), (131), (141).

Type-locality form

Crystals up to 3 mm long, 1 mm wide, and 0.5 mm.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen3115.999495.969
62.69%
5BBoronBoron1410.810151.340
19.13%
38SrStrontiumStrontium187.62087.620
11.07%
20CaCalciumCalcium140.07840.078
5.07%
1HHydrogenHydrogen161.00816.128
2.04%
Total791.135100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Strontioginoriet
  • Strontioginorita
  • Volkovite

In other languages

German
Strontioginorit
Italian
Strontioginorite · Stronzioginorite

Classification

Strunz
10th ed.

6.FC.15

  • 6BoratesClass
  • 6.FHexaboratesDivision
  • 6.FCPhyllo-hexaboratesGroup
  • 6.FC.15StrontioginoriteSpecies
Dana
8th ed.

26.06.07.02

  • 26Hydrated Borates Containing Hydroxyl or HalogenClass
  • 26.06HexaboratesType
  • 26.06.07— unnamed intermediate level —Group
  • 26.06.07.02StrontioginoriteSpecies
CIM

9.3.32

  • 9BoratesClass
  • 9.3Borates of Ca and SrGroup
  • 9.3.32StrontioginoriteSpecies

Literature, links & citation

Citations
  1. 1959Braitsch, Otto (1959) Über Strontioginorit, eine neue Ginorit-Varietät aus dem Zechsteinsalz. Beiträge zur Mineralogie und Petrographie, 6 (6). 366-370 doi:10.1007/bf01206338DOI: 10.1007/bf01206338
  2. 1960Fleischer, M. (1960) New mineral names. American Mineralogist, 45 (3-4). 476-480
  3. 1970Konnert, Judith A., Clark, Joan R., Christ, and C. L. (1970) Crystal structure of strontioginorite, (Sr,Ca)2B14O20(OH)6·5H2O. American Mineralogist, 55 (11-12) 1911-1931
  4. 1974Christian, R.D., Eberlein, D., Konnert, J.A. (1974) Optical and X-ray crystallographic investigations of strontioginorites. Journal of Research of the US Geological Survey: 2: 699-700.
  5. 1996Grew, Edward S.; Anovitz, Lawrence M. - Eds. (1996) Boron - Mineralogy, Petrology and Geochemistry. Reviews in Mineralogy Vol. 33. Mineralogical Society of America p.862
