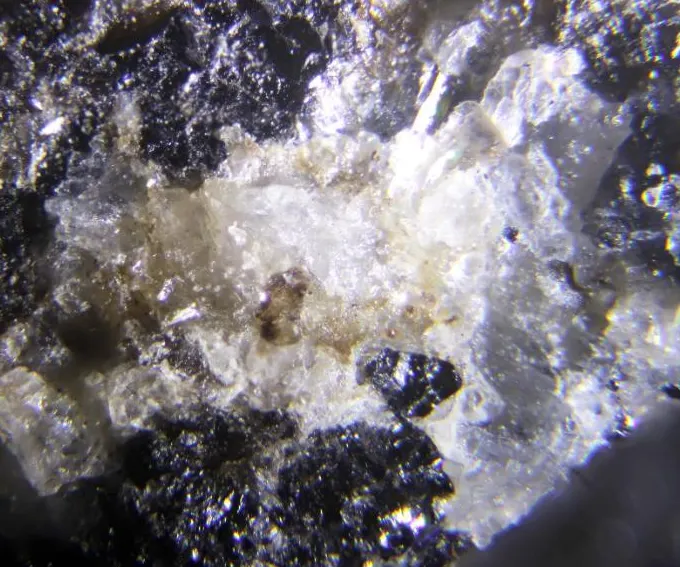

Sundiusite

Pb10(SO4)O8Cl2
IMA status
  • Approved
IMA symbol
Sun
IMA approved
1979
Also known as
  • IMA1979-044
  • Sundiusiet
  • Sundiusite (of Dunn and Rouse)

Where it forms, where it's found

Type locality
Långban Mine
  1. Långban Ore District
  2. Filipstad
  3. Värmland County
  4. Sweden

59.8554°, 14.2648°

3recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
White to colourless
Streak
White
Tenacity
brittle
Cleavage
Perfect

(100)

Density
7.0 g/cm³

Optical

Optical type
Biaxial (+)
Refractive index
2.1 – 2.17
Surface relief
Very high
Principal indices
nα 2.1 · nγ 2.17
Dispersion
r < v extreme
UV response
None observed.
Michel-Lévy diagramhighlighted lineδ = 0.0700
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]700 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation700 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Monoclinic
Cell parameters
a = 24.67(1) Å · b = 3.781(1) Å · c = 11.881(5) Å
Cell angles
β = 100.07(4) °
Ratio a:b:c
1 : 0.153 : 0.482
Type-locality form

Plumose aggregates of overlapping crystals

Comment

Space group C2/m, C2 or Cm.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
82PbLeadLead10207.2002072.000
87.54%
8OOxygenOxygen1215.999191.988
8.11%
17ClChlorineChlorine235.45070.900
3.00%
16SSulfurSulfur132.06032.060
1.35%
Total2366.948100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1979-044
  • Sundiusiet
  • Sundiusite (of Dunn and Rouse)

In other languages

German
IMA 1979-044 · Sundiusit
Italian
Sundiusite

Classification

Strunz
10th ed.

7.BD.70

  • 7SulfatesClass
  • 7.BSulfates (selenates, etc.) with additional anions, without H2ODivision
  • 7.BDWith only large cationsGroup
  • 7.BD.70SundiusiteSpecies
Dana
8th ed.

30.01.01.01

  • 30Anhydrous Sulfates Containing Hydroxyl or HalogenClass
  • 30.01(AB)m(XO4)pZq, where m:p>2:1Type
  • 30.01.01— unnamed intermediate level —Group
  • 30.01.01.01SundiusiteSpecies
CIM

26.24

  • 26Sulphates with HalideClass
  • 26.24— unnamed intermediate level —Group
  • 26.24SundiusiteSpecies

Literature, links & citation

Citations
  1. 1980Dunn, Pete J., Rouse, Roland C. (1980) Sundiusite, a new lead sulfate oxychloride from Långban, Sweden. American Mineralogist, 65 (5-6) 506-508
  2. 2005(2005) Sundiusite. Handbook of Mineralogy. Mineralogical Society of America
