Švenekite

Ca[AsO2(OH)2]2
IMA status
  • Approved
IMA symbol
Švn
IMA approved
1999
Also known as
  • IMA1999-007
  • Švenekiet

Where it forms, where it's found

Geological setting

Occurs as a supergene mineral that grows directly on granite rocks isolated from other arsenates, which are common in Jáchymov. The mineral crystallized from concentrated strongly acidic solution with a strong circulation, which carried arsenic acid produced by decomposition of native arsenic or arsenides common in the Geschieber vein.

Type locality
Geschieber vein
  1. Svornost Mine
  2. Jáchymov
  3. Karlovy Vary District
  4. Karlovy Vary Region
  5. Czech Republic

50.3725°, 12.9117°

2recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789102/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Transparent · Translucent
Colour
Colourless · white
Streak
White
Tenacity
brittle
Cleavage
Very Good

very good cleavage on (010)

Fracture
Irregular/Uneven
Density
3.16 g/cm³

Optical

Optical type
Biaxial
Refractive index
1.602 – 1.658
Surface relief
Moderate
Principal indices
nα 1.602 · nγ 1.658
Pleochroism
Non-pleochroic
UV response
none
Michel-Lévy diagramhighlighted lineδ = 0.0560
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]560 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation560 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 8.5482(3) Å · b = 7.6973 Å · c = 5.7198 Å
Cell angles
α = 92.59 ° · β = 109.87 ° · γ = 109.92 °
Ratio a:b:c
1 : 0.900 : 0.669
Unit cell volume
332.44 ų
Z
2
Type-locality form

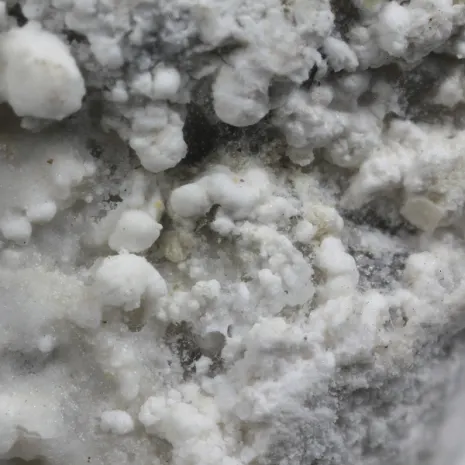

Coatings composed of indistinct radiating to rosette-shaped aggregates up to 3 mm across with a glassy luster, but also white botryoidal crusts with a matte or lustrous surface. The rosettes are composed of thin lens- to blade-shaped crystals, usually 100

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
33AsArsenicArsenic274.922149.844
46.54%
8OOxygenOxygen815.999127.992
39.76%
20CaCalciumCalcium140.07840.078
12.45%
1HHydrogenHydrogen41.0084.032
1.25%
Total321.946100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1999-007
  • Švenekiet

In other languages

German
IMA 1999-007 · Švenekit
Italian
Švenekite

Classification

Strunz
10th ed.

8.AD.10

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.APhosphates, etc. without additional anions, without H2ODivision
  • 8.ADWith only large cationsGroup
  • 8.AD.10ŠvenekiteSpecies

Literature, links & citation

Citations
  1. 1971Chiari, G., Ferraris, G. (1971) The crystal structure of calcium dihydrogen arsenate, Ca(H2AsO4)2. Atti della Accademia delle Scienze di Torino, Classe di Scienze Fisiche, Matematiche e Naturali: 105: 725-743.
  2. 1972Ferraris, G., Jones, D.W., Yerkess, J. (1972) A neutron diffraction study of the crystal structure of calcium bis(dihydrogen arsenate), Ca(H2AsO4)2. Acta Crystallographica: B28: 2430-2437.
  3. 1997Ondruš, P., Veselovský, F., Skála, R., Cisařová, I., Hloušek, J., Frýda, J., Vavřín, I., Čejka, J., Gabašová, A. (1997) New naturally occurring phases of secondary origin from Jáchymov (Joachimsthal) Journal of the Czech Geological Society, 42 (4) 77-108
  4. 2003Ondruš, P., Veselovský, F., Gabašová, A., Hloušek, J., Šrein, V. (2003) Supplement to secondary and rock-forming minerals of the Jáchymov ore district. Journal of the Czech Geological Society, 48 (3-4) 149-155
  5. 2013Ondruš, P., Skála, R., Plášil, J., Sejkora, J., Veselovský, F., Čejka, J., Kallistová, A., Hloušek, J., Fejfarová, K., Škoda, R., Dušek, M., Gabašová, A., Machovič, V., Lapčák, L. (2013) Švenekite, Ca[AsO2(OH)2]2, a new mineral from Jáchymov, Czech Republic. Mineralogical Magazine, 77 (6) 2711-2724 doi:10.1180/minmag.2013.077.6.02 DOI: 10.1180/minmag.2013.077.6.02
