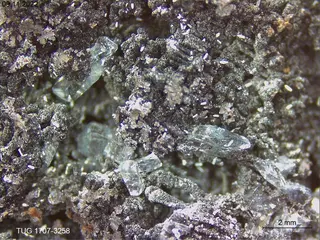

Tarbuttite

Zn2(PO4)(OH)
IMA status
  • Approved
  • Grandfathered
IMA symbol
Tbt
Discovered
1907
Also known as
  • Tarbuttiet

Where it forms, where it's found

Geological setting

Upper portion of the oxidation zone where phosphatic solutions reacted with earlier formed hemimorphite and cerussite.

Type locality
Kabwe Mine
  1. Kabwe
  2. Kabwe District
  3. Central Province
  4. Zambia

-14.4553°, 28.4336°

11recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Transparent · Translucent
Colour
White · colourless · yellow · red green or brown · colourless in transmitted light.
Streak
White
Cleavage
Perfect

On (010), perfect.

Fracture
Irregular/Uneven
Density
4.12 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 50°
Refractive index
1.66 – 1.713
Surface relief
High
Principal indices
nα 1.66 · nβ 1.705 · nγ 1.713
Dispersion
weak
Extinction
X (7°,58°); Y (159°,25°); Z (−86°,80°) [using (φ,ρ)].
Michel-Lévy diagramhighlighted lineδ = 0.0530
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]530 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation530 nm
Order1st order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 5.55 Å · b = 5.7 Å · c = 6.47 Å
Cell angles
α = 102.68 ° · β = 102.81 ° · γ = 86.88 °
Ratio a:b:c
1 : 1.027 : 1.166
Z
8
Morphology

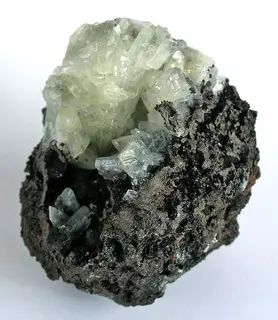

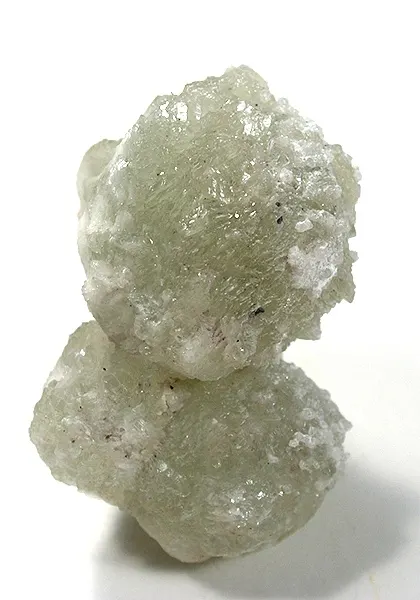

Crystals equant to short prismatic [001]. Commonly found as sheaf-like aggregates or as crusts. Individual crystals commonly rounded and deeply striated.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
30ZnZincZinc265.380130.760
53.87%
8OOxygenOxygen515.99979.995
32.96%
15PPhosphorusPhosphorus130.97430.974
12.76%
1HHydrogenHydrogen11.0081.008
0.41%
Total242.737100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Tarbuttiet

In other languages

French
Tarbuttite
German
Tarbuttit
Spanish
tarbuttita
Italian
tarbuttite
Japanese
ターブット石
Chinese
三斜磷鋅 · 三斜磷锌矿

Classification

Strunz
10th ed.

8.BB.35

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.BPhosphates, etc., with additional anions, without H2ODivision
  • 8.BBWith only medium-sized cations, (OH, etc.):RO4 about 1:1Group
  • 8.BB.35TarbuttiteSpecies
Dana
8th ed.

41.06.07.01

  • 41Anhydrous Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 41.06A2(XO4)ZqType
  • 41.06.07Tarbuttite GroupGroup
  • 41.06.07.01TarbuttiteSpecies
CIM

19.6.1

  • 19PhosphatesClass
  • 19.6Phosphates of ZnGroup
  • 19.6.1TarbuttiteSpecies

Group, growth & confusion

In the same group
1 members
Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1907Spencer, L.J. (1907) Societies and Academies: Mineralogical Society. Nature: 76: 215-215.
  2. 1908Spencer, L. J. (1908) On Hopeite and other zinc phosphates and associated minerals from the Broken Hill mines, North-Western Rhodesia. Mineralogical Magazine and Journal of the Mineralogical Society, 15 (68) 1-38 doi:10.1180/minmag.1908.015.68.02 DOI: 10.1180/minmag.1908.015.68.02
  3. 1913Rosický (1913) Bull. Ac. Sc. Bohême: 18: no. 35.
  4. 1921Larsen, Esper S. (1921) The microscopic determination of the nonopaque minerals. Bulletin 679. US Geological Survey doi:10.3133/b679 DOI: 10.3133/b679
  5. 1931Buttgenbach and Mélon (1931) Acadamie Royale de Belgique, Bulletin de la Classe des Sciences: 5: 17: 892.
