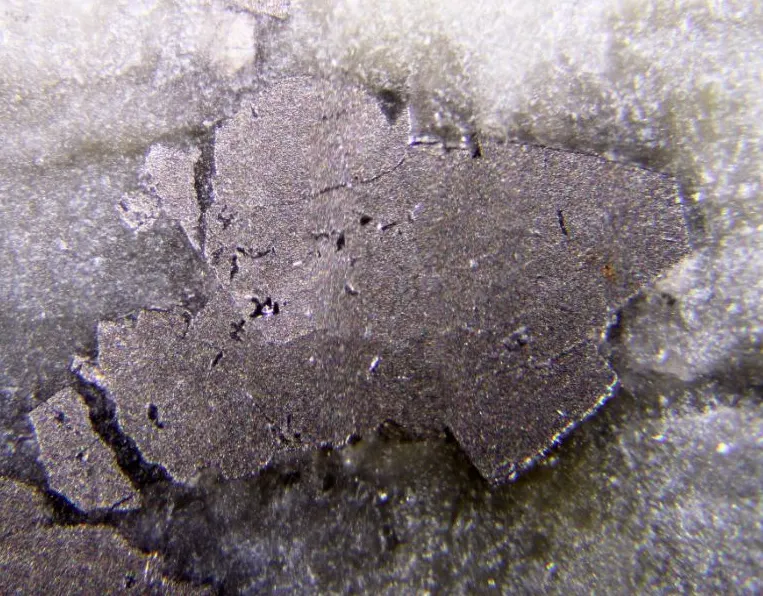

Temagamite

Pd3HgTe3
IMA status
  • Approved
IMA symbol
Tem
Discovered
1973
IMA approved
1973
Also known as
  • IMA1973-018
  • Temagamiet

Where it forms, where it's found

Geological setting

Massive pyrite and chalcopyrite.

Type locality
Copperfields Mine (Temagami Mine)
  1. Phyllis Township
  2. Nipissing District
  3. Ontario
  4. Canada

46.9622°, -80.0372°

37recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789102.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Opaque
Colour
Bright white
Density
9.45 g/cm³

Optical

Optical colour
White with a gray tinge
Anisotropism
In air weakly anisotropic. Under oil the anisotropism is enhanced with colours pale grey to dark grey.
Bireflectance
none
Tropism
Anisotropic
Reflectance R%
(51.8–52.8) 470, (52.9–53.9) 546, (54.2–55.0) 589, (57.1–57.7) 650

Crystallography

Crystal system
Trigonal
Space group
#84
Cell parameters
a = 7.8211(6) Å · c = 17.281(1) Å
Z
6
Type-locality form

Inclusions in chalcopyrite up to 30 x 115 microns.

Comment

on synthetic material

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
52TeTelluriumTellurium3127.600382.800
42.41%
46PdPalladiumPalladium3106.420319.260
35.37%
80HgMercuryMercury1200.592200.592
22.22%
Total902.652100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Pt
  • Bi

Synonyms

  • IMA1973-018
  • Temagamiet

In other languages

German
IMA 1973-018 · Temagamit
Spanish
Temagamita
Italian
temagamite

Classification

Strunz
10th ed.

2.BC.50

  • 2Sulfides and SulfosaltsClass
  • 2.BMetal Sulfides, M: S > 1: 1 (mainly 2: 1)Division
  • 2.BCWith Rh, Pd, Pt, etc.Group
  • 2.BC.50TemagamiteSpecies
Dana
8th ed.

02.06.05.01

  • 02SulfidesClass
  • 02.06AmBnXp, with (m+n):p = 4:3Type
  • 02.06.05— unnamed intermediate level —Group
  • 02.06.05.01TemagamiteSpecies
CIM

3.12.18

  • 3Sulphides, Selenides, Tellurides, Arsenides and Bismuthides (except the arsenides, antimonides and bismuthides of Cu, Ag and Au, which are included in Section 1)Class
  • 3.12Sulphides etc. of the platinum metalsGroup
  • 3.12.18TemagamiteSpecies

Group, growth & confusion

In the same group
2 members

Literature, links & citation

Citations
  1. 1973Cabri, L. J., Laflamme, J. H. G., Stewart, J. M. (1973) Temagamite, a new palladium-mercury telluride from the Temagami copper deposit, Ontario, Canada. The Canadian Mineralogist, 12 (3) 193-198
  2. 2005(2005) Temagamite. Handbook of Mineralogy. Mineralogical Society of America
  3. 2016Laufek, František, Vymazalová, Anna, Drábek, Milan, Dušek, Michal, Navrátil, Jiří, Černošková, Eva (2016) The crystal structure of Pd3HgTe3, the synthetic analogue of temagamite. European Journal of Mineralogy, 28 (4). 825-834 doi:10.1127/ejm/2016/0028-2547DOI: 10.1127/ejm/2016/0028-2547
  4. 2021Drábek, M., Vymazalová, A., Laufek, F., Tuhý, M. (2021) The Hg-Pd-Te system: phase relations involving temagamite and a new ternary phase. Journal of GEOsciences, 66 (4) 197-204
