Terlinguacreekite

Hg2+3O2Cl2
IMA status
  • Approved
IMA symbol
Tck
IMA approved
2004
Also known as
  • IMA2004-018
  • Terlinguacreekiet

Where it forms, where it's found

Geological setting

A secondary mineral, probably formed from the alteration of primary cinnabar or native mercury.

Type locality
Perry Pit
  1. Mariposa Mine
  2. Brewster County
  3. Texas
  4. USA
2recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Transparency
Transparent
Colour
Red-orange · dark orange · lemon yellow · black (in strong light)

"Material from the McDermitt mine is reversibly photosensitive, and turns from vivid orange to black in strong light." (Roberts et al., 2005).

Streak
Yellow
Tenacity
brittle
Cleavage
None Observed
Fracture
Irregular/Uneven
Density
9.899 g/cm³

Optical

Optical colour
Bluish grey
Anisotropism
distinct
Bireflectance
very weak - air; distinct -oil
Internal reflections
Yellow orange - orange
Tropism
Anisotropic
Reflectance R%
(16.7,19.0,4.2,5.0) 400, (16.2,18.7,4.0,4.9) 420, (15.9,17.4,3.9,4.6) 440, (15.6,16.9,3.7,4.5) 460, (15.4,16.5,3.6,4.4) 470, (15.1,16.2,3.5,4.3) 480, (14.9,16.0,3.5,4.2) 500, (14.6,15.8,3.4,4.1) 520, (14.5,15.6,3.4,4.1) 540, (14.5,15.6,3.4,4.1) 546, (14.4,15.5,3.4,4.1) 560, (14.4,15.4,3.4,4.2) 580, (14.3,15.4,3.4,4.2) 589, (14.2,15.4,3.4,4.2) 600, (14.2,15.3,3.4,4.2) 620, (14.2,15.2,3.5,4.3) 640, (14.2,15.2,3.5,4.3) 650, (14.1,15.2,3.5,4.3) 660, (14.0,15.1,3.5,4.3) 680, (14.0,15.1,3.5,4.3) 700
UV response
Not fluorescent
Notes

Some material is reversibly photosensitive (McDermitt)

Crystallography

Crystal system
Orthorhombic
Cell parameters
a = 6.737(3) Å · b = 25.528(10) Å · c = 5.533(2) Å
Ratio a:b:c
1 : 3.789 : 0.821
Unit cell volume
951.6 ų
Z
8
Morphology

Subhedral, acicular to prismatic, elongation [001], with a maximum length-to-width ratio of 4:1.

Twinning

Attempts to solve the crystal structure indicate that the mineral has some form of complex twinning.

Type-locality form

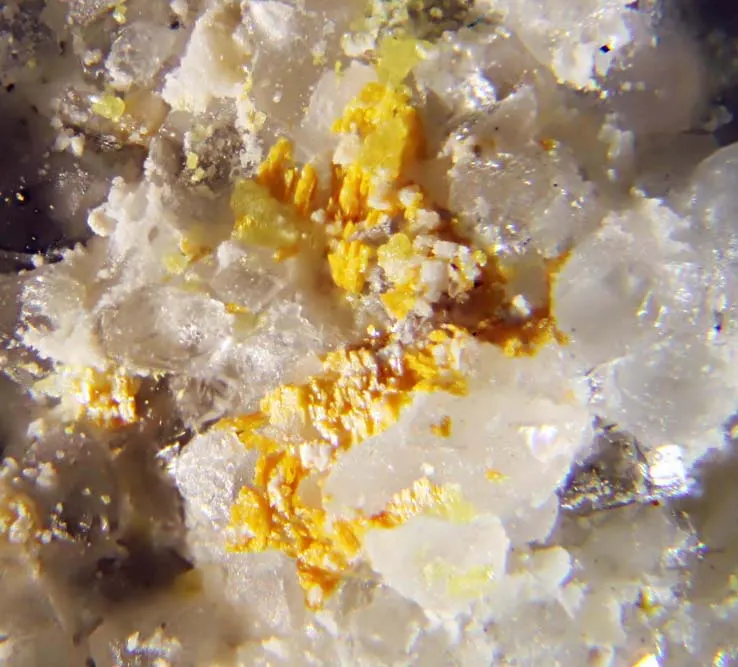

Millimeter-sized anhedral dark orange to reddish orange crusts of variable thickness on calcite, and rarely as 0.5 mm-sized aggregates of crystals.

Comment

Point Group: mm2 or 2/m 2/m 2/m.;: Space Group: Imam, Imcm, Ima2 or I2cm.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
80HgMercuryMercury3200.592601.776
85.40%
17ClChlorineChlorine235.45070.900
10.06%
8OOxygenOxygen215.99931.998
4.54%
Total704.674100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2004-018
  • Terlinguacreekiet

In other languages

German
IMA 2004-018 · Terlinguacreekit
Italian
Terlinguacreekite

Classification

Strunz
10th ed.

3.DD.55

  • 3HalidesClass
  • 3.DOxyhalides, hydroxyhalides and related double halidesDivision
  • 3.DDWith HgGroup
  • 3.DD.55TerlinguacreekiteSpecies

Literature, links & citation

Citations
  1. 2005Roberts, A. C., Gault, R. A., Paar, W. H., Cooper, M. A., Hawthorne, F. C., Burns, P. C., Cisneros, S., Foord, E. E. (2005) Terlinguacreekite, Hg2+3O2Cl2, a new mineral species from the Perry Pit, Mariposa Mine, Terlingua Mining District, Brewster County, Texas, U.S.A. The Canadian Mineralogist, 43 (3) 1055-1060 doi:10.2113/gscanmin.43.3.1055 DOI: 10.2113/gscanmin.43.3.1055
  2. 2006Locock, Andrew J., Piilonen, Paula C., Ercit, T. Scott, Rowe, Ralph (2006) New Mineral Names. American Mineralogist, 91 (1) 216-224 doi:10.2138/am.2006.454DOI: 10.2138/am.2006.454
  3. 2015(2015) Terlinguacreekite. Handbook of Mineralogy. Mineralogical Society of America
