Ternesite

Ca5(SiO4)2(SO4)
IMA status
  • Approved
IMA symbol
Tns
IMA approved
1995
Also known as
  • IMA1995-015
  • Ternesiet

Where it forms, where it's found

Geological setting

Ca-rich xenoliths in Quaternary leucite tephrite lava.

Type locality
Caspar quarry
  1. Ettringen
  2. Vordereifel
  3. Mayen-Koblenz
  4. Rhineland-Palatinate
  5. Germany

50.3525°, 7.2335°

8recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104.5 – 5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Colour
Pale blue · brown · light green · colourless
Streak
White
Cleavage
None Observed
Density
2.94 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 63.5° · 2V calc = 66°
Refractive index
1.63 – 1.64
Surface relief
Moderate
Principal indices
nα 1.630 · nβ 1.637 · nγ 1.640
Dispersion
r > v
UV response
Not fluorescent.
Michel-Lévy diagramhighlighted lineδ = 0.0100
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]100 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation100 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
#71
Cell parameters
a = 6.863 Å · b = 15.387 Å · c = 10.181 Å
Ratio a:b:c
1 : 2.242 : 1.483
Type-locality form

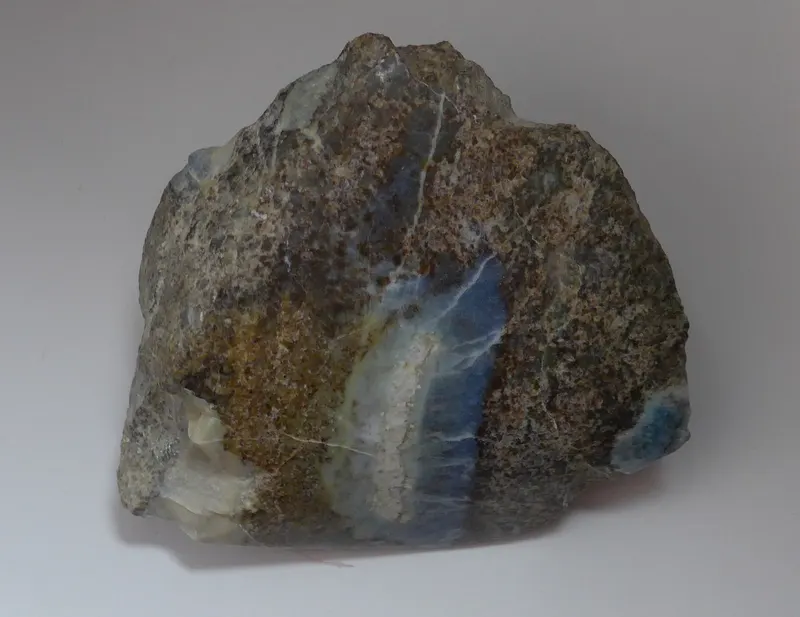

Prismatic crystals to 0.2 mm length and 0.05 mm diameter, radially arranged into bright blue aggregates.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
20CaCalciumCalcium540.078200.390
41.69%
8OOxygenOxygen1215.999191.988
39.95%
14SiSiliconSilicon228.08556.170
11.69%
16SSulfurSulfur132.06032.060
6.67%
Total480.608100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1995-015
  • Ternesiet

In other languages

German
IMA 1995-015 · Ternesit
Italian
Ternesite

Classification

Strunz
10th ed.

9.AH.20

  • 9SilicatesClass
  • 9.ANesosilicatesDivision
  • 9.AHNesosilicates with CO3, SO4, PO4, etc.Group
  • 9.AH.20TernesiteSpecies

Literature, links & citation

Citations
  1. 1974Brotherton, P.D.; Epstein, J.M.; Pryce, M.W.; White, A.H. (1974) Crystal structure of 'calcium sulphosilicate', Ca5(SiO4)2SO4. Australian Journal of Chemistry, 27 (3). 657-660 doi:10.1071/ch9740657DOI: 10.1071/ch9740657
  2. 1995Irran, E. (1995): Ternesit, Ca5(SiO4)2SO4, ein neues Mineral vom Bellerberg. Diplomarbeit, Universität Wien, Formal- und Naturwissenschaftliche Fakultät, xx pp.
  3. 1997Irran, E., Tillmanns, E., Hentschel, G. (1997) Ternesite, Ca5(SiO4)2SO4, a new mineral from the Ettringer Bellerberg/Eifel, Germany. Mineralogy and Petrology, 60 (1) 121-132 doi:10.1007/bf01163138DOI: 10.1007/bf01163138
  4. 2020Böhme, Nadine, Hauke, Kerstin, Neuroth, Manuela, Geisler, Thorsten (2020) In Situ Hyperspectral Raman Imaging of Ternesite Formation and Decomposition at High Temperatures. Minerals, 10 (3) 287 doi:10.3390/min10030287 DOI: 10.3390/min10030287
