Ternovite

MgNb4O11 · 8-12H2O
IMA status
  • Approved
IMA symbol
Tno
Also known as
  • IMA1992-044
  • Ternoviet

Where it forms, where it's found

Geological setting

Late-stage hydrothermal mineral in dissolution voids that formed as a result of dolomitization of pyrochlore-bearing calcite carbonatites.

Type locality
Vuoriyarvi alkaline-ultrabasic massif
  1. Northern Karelia
  2. Murmansk Oblast
  3. Russia
2recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Adamantine · Silky
Transparency
Translucent
Colour
White
Streak
white
Tenacity
brittle
Fracture
Irregular/Uneven
Density
2.95 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 39° · 2V calc = 39.5°
Refractive index
1.725 – 1.845
Surface relief
High
Principal indices
nα 1.725 · nβ 1.830 · nγ 1.845
Dispersion
none
Extinction
Parallel extinction
Michel-Lévy diagramhighlighted lineδ = 0.1200
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]1200 nm3rd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation1200 nm
Order3rd order
XPL colour

Crystallography

Crystal system
Monoclinic
Cell parameters
a = 20.656 Å · b = 13.062 Å · c = 6.338 Å
Cell angles
β = 91.90 °
Ratio a:b:c
1 : 0.632 : 0.307
Z
4
Type-locality form

White spherulites, to 0.5 mm in diameter, consisting of radiating blades averaging 0.1 x 0.003 x 0.005 mm.

Comment

Point Group: n.d.; Space Group: n.d.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
41NbNiobiumNiobium492.906371.624
51.90%
8OOxygenOxygen1915.999303.981
42.45%
12MgMagnesiumMagnesium124.30524.305
3.40%
1HHydrogenHydrogen161.00816.128
2.25%
Total716.038100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1992-044
  • Ternoviet

In other languages

German
IMA 1992-044 · Ternovit
Italian
Ternovite

Classification

Strunz
10th ed.

4.FM.15

  • 4OxidesClass
  • 4.FHydroxides (without V or U)Division
  • 4.FMHydroxides with H2O +- (OH); unclassifiedGroup
  • 4.FM.15TernoviteSpecies

Group, growth & confusion

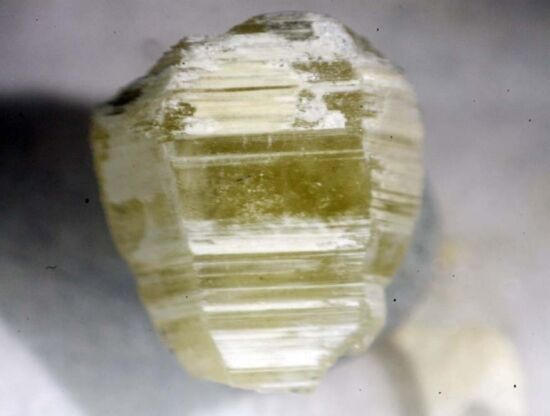

In the same group
2 members

Literature, links & citation

Citations
  1. 1997Subbotin, Viktor V., Voioshin, Anatolii V., Pakhomovskii, Yakov A., Men'shikov, Yurii P., Subbotina, Galina F. (1997) Ternovite, (Mg,Ca)Nb4O11 · nH2O, a new mineral and other hydrous tetraniobates from carbonatites of the Vuoriyarvi massif, Kola Peninsula, Russia. Neues Jahrbuch für Mineralogie - Monatshefte, 1997 (2) 49-60 doi:10.1127/njmm/1997/1997/49DOI: 10.1127/njmm/1997/1997/49
  2. 1998Mandarino, Joseph A. (1998) Abstracts of New Mineral Descriptions. The Mineralogical Record, 29 (3) 233-237
  3. 1998Jambor, John L., Grew, Edward S., Roberts, Andrew C. (1998) New mineral names. American Mineralogist, 83 (1) 185-189
  4. 1998Rudnev V V (1998) Nordenskiöldine and its zirconium-bearing variety from Yakutia. Zapiski Vserossiyskogo Mineralogicheskogo Obshchestva: 127(3): 87-97.
  5. 2005(2005) Ternovite. Handbook of Mineralogy. Mineralogical Society of America
