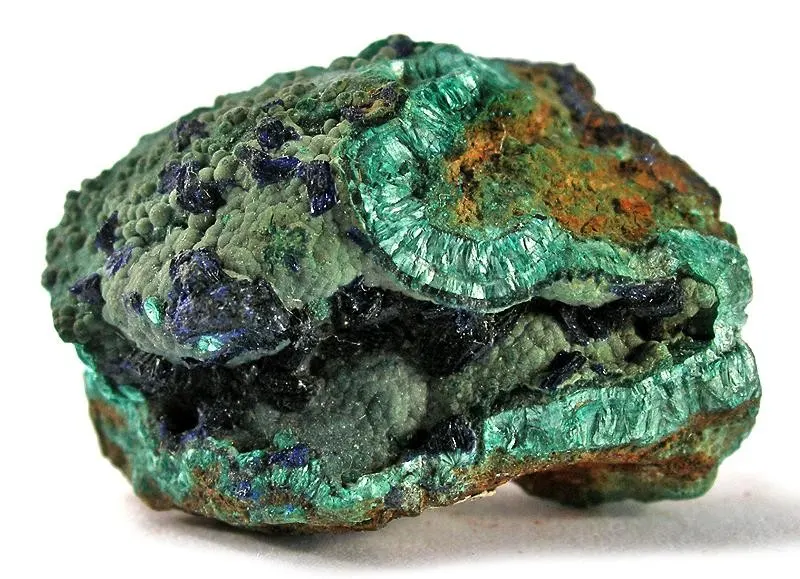

Theisite

Cu5Zn5(AsO4)2(OH)14
IMA status
  • Approved
IMA symbol
Ths
Discovered
1980
IMA approved
1980
Also known as
  • IMA1980-040
  • Theisiet

Where it forms, where it's found

Type locality
Tuckerville prospects
  1. Hinsdale County
  2. Colorado
  3. USA

37.4805°, -107.4779°

62recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789101.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Greenish blue · turquoise-blue · pale turquoise-green · pale emerald-green
Streak
Off-white
Tenacity
sectile
Cleavage
Perfect

(001)

Density
4.3 g/cm³

Optical

Optical type
Biaxial (-)
Refractive index
1.755 – 1.785
Surface relief
High
Principal indices
nα 1.755 · nβ 1.785 · nγ 1.785
Dispersion
distinct to strong
Notes

nearly uniaxial (–)

Michel-Lévy diagramhighlighted lineδ = 0.0300
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]300 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation300 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Cell parameters
a = 8.222(2) Å · b = 7.123 Å · c = 14.97(3) Å
Ratio a:b:c
1 : 0.866 : 1.821
Z
2
Comment

pseudohexagonal. Point group: n.d.; space group: n.d. (no possible space groups were suggested in the original description).

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2215.999351.978
30.33%
30ZnZincZinc565.380326.900
28.17%
29CuCopperCopper563.546317.730
27.38%
33AsArsenicArsenic274.922149.844
12.91%
1HHydrogenHydrogen141.00814.112
1.21%
Total1160.564100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1980-040
  • Theisiet

In other languages

German
IMA 1980-040 · Theisit
Italian
Theisite
Chinese
西锑砷铜锌矿

Classification

Strunz
10th ed.

8.BE.75

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.BPhosphates, etc., with additional anions, without H2ODivision
  • 8.BEWith only medium-sized cations, (OH, etc.):RO4 > 2:1Group
  • 8.BE.75TheisiteSpecies
Dana
8th ed.

41.01.02.01

  • 41Anhydrous Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 41.01(AB)m(XO4)pZq, where m:p > 4:1Type
  • 41.01.02— unnamed intermediate level —Group
  • 41.01.02.01TheisiteSpecies
CIM

24.2.5

  • 24Antimonates and AntimonitesClass
  • 24.2Antimonates of Be, Mg, Ca, Zn or HgGroup
  • 24.2.5TheisiteSpecies

Literature, links & citation

Citations
  1. 1982Williams, S. A. (1982) Theisite, a new mineral from Colorado. Mineralogical Magazine, 46 (338) 49-50 doi:10.1180/minmag.1982.046.338.08 DOI: 10.1180/minmag.1982.046.338.08
  2. 1983Fleischer, Michael, Pabst, Adolf (1983) New Mineral Names. American Mineralogist, 68 (1-2) 280-283
  3. 1988Sabelli, Cesare, Brizzi, Giancarlo, Olmi, Filippo (1988) Agardite-(Y), Gysinite-(Nd) and Other Rare Minerals from Sardinia [Italy]. The Mineralogical Record, 19 (5) 305-310
  4. 1989Bonazzi, P.; Olmi, F. (1989) Theisite from Forno (Alpi Apuane) and from Sa Duchessa (Sardinia), Italy. Neues Jahrbuch für Mineralogie - Monatshefte, 1989 (6). 241-244
  5. 1995Olmi, Filippo; Santucci, Alessandrο; Trosti-Ferroni, Renza (1995) Sabelliite, a new copper-zinc arsenate-antimonate mineral from Sardinia, Italy. European Journal of Mineralogy, 7 (6). 1325-1330 doi:10.1127/ejm/7/6/1325 DOI: 10.1127/ejm/7/6/1325
