Thomasclarkite-(Y)

NaY(HCO3)(OH)3 · 4H2O
IMA status
  • Approved
IMA symbol
Tcl-Y
IMA approved
1997
Also known as
  • IMA1997-047
  • Thomasclarkiet-(Y)

Where it forms, where it's found

Type locality
Poudrette quarry (De-Mix quarry
  1. Demix quarry
  2. Uni-Mix quarry
  3. Carrière Mont Saint-Hilaire
  4. MSH)
  5. Mont Saint-Hilaire
  6. La Vallée-du-Richelieu RCM
  7. Montérégie
  8. Québec
  9. Canada

45.5628°, -73.1417°

2recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102 – 3/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Transparent · Translucent
Colour
Honey-yellow to white
Streak
White
Tenacity
brittle
Cleavage
Perfect

Perfect on (010).

Fracture
Irregular/Uneven
Density
2.30 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.4 – 1.54
Surface relief
Low
Principal indices
nω 1.540 · nε 1.40
UV response
Not fluorescent.
Michel-Lévy diagramhighlighted lineδ = 0.1400
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]1400 nm3rd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation1400 nm
Order3rd order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P2
Cell parameters
a = 4.556 Å · b = 13.018 Å · c = 4.556 Å
Cell angles
β = 90.15 °
Ratio a:b:c
1 : 2.857 : 1.000
Unit cell volume
270.2 ų
Z
1
Morphology

Blocky, pseudo-tetragonal crystals. Forms observed are the pedions (010) and (010), sphenoids (111), (111), (111) and (111) and the pinacoids (101) and (101).

Twinning

Merohedral twinning on (101) is ubiquitous.

Parting
Parting on (101).
Type-locality form

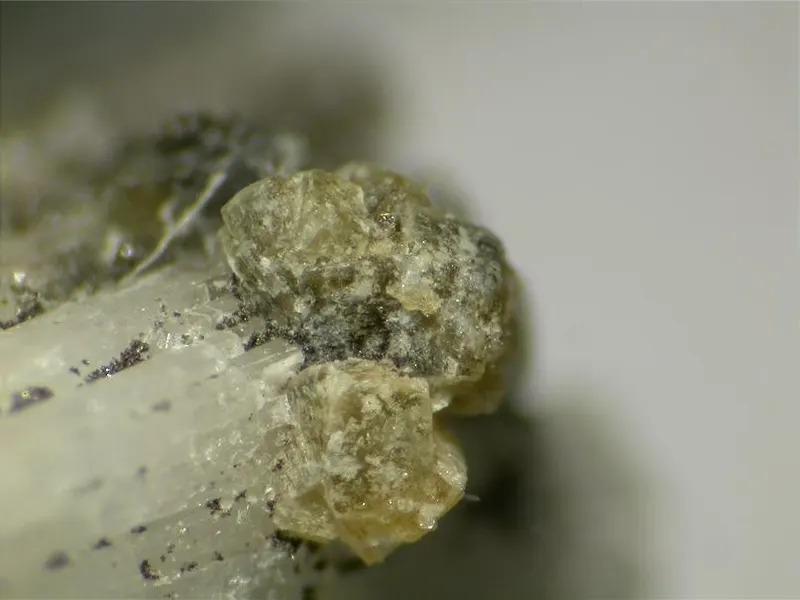

Individual, well-formed, blocky, white-to-yellow crystals up to 2 mm in length.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1015.999159.990
54.05%
39YYttriumYttrium188.90688.906
30.03%
11NaSodiumSodium122.99022.990
7.77%
1HHydrogenHydrogen121.00812.096
4.09%
6CCarbonCarbon112.01112.011
4.06%
Total295.993100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1997-047
  • Thomasclarkiet-(Y)

In other languages

German
IMA 1997-047 · Thomasclarkit-(Y)
Italian
Thomasclarkite- · thomasclarkite-(Y)
Chinese
重碳钠钇石

Classification

Strunz
10th ed.

5.DC.20

  • 5CarbonatesClass
  • 5.DCarbonates with additional anions, with H2ODivision
  • 5.DCWith large cationsGroup
  • 5.DC.20Thomasclarkite-(Y)Species

Literature, links & citation

Citations
  1. 1998Grice, Joel D., Gault, Robert A. (1998) Thomasclarkite-(Y), a new sodium-rare-earth-element bicarbonate mineral species from Mont Saint-Hilaire, Quebec. The Canadian Mineralogist, 36 (5). 1293-1300
  2. 2005(2005) Thomasclarkite-(Y). Handbook of Mineralogy. Mineralogical Society of America
