Tinnunculite

C5H4N4O3 · 2H2O
IMA status
  • Approved
IMA symbol
Tnn
IMA approved
2015
Also known as
  • IMA2015-021a
  • Tinnunculiet
  • UM1993-32-CH:NO
  • +1 more

Where it forms, where it's found

Type locality
Rasvumchorr Mt
  1. Murmansk Oblast
  2. Russia

67.6000°, 33.9000°

18recorded occurrences
Source · OpenStreetMap

Physical

Transparency
Transparent · Translucent
Colour
Colorless · white · yellowish · reddish or раlе lilас
Tenacity
brittle
Cleavage
Distinct/Good

Distinct (010).

Density
1.68 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 40°
Refractive index
1.503 – 1.74
Surface relief
Moderate
Principal indices
nα 1.503 · nβ 1.712 · nγ 1.74
Michel-Lévy diagramhighlighted lineδ = 0.2370
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]2370 nm5th order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation2370 nm
Order5th order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/c
Cell parameters
a = 7.261(9) Å · b = 6.365(7) Å · c = 17.48(3) Å
Cell angles
β = 91.0(1) °
Ratio a:b:c
1 : 0.877 : 2.407
Unit cell volume
820 ų
Z
4
Type-locality form

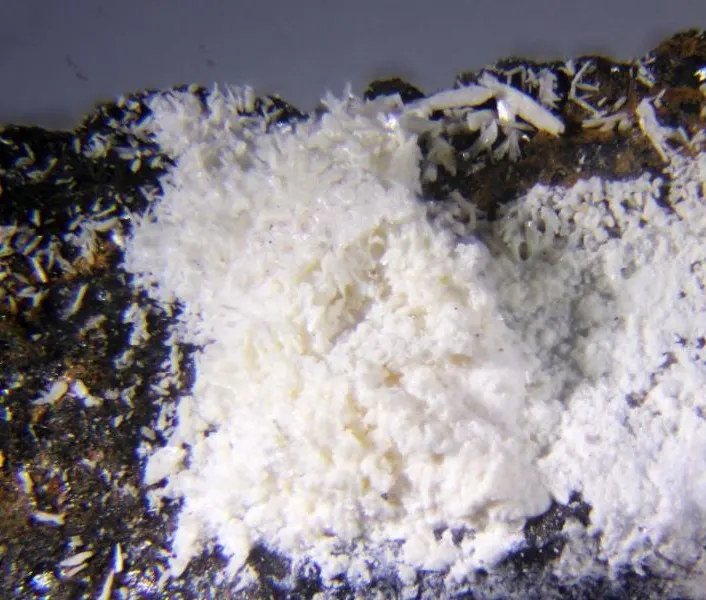

Prismatic or tabular crystals, uр to 0.2 mm in length, clusters, and crystalline ог micro-globular crusts.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen515.99979.995
39.19%
6CCarbonCarbon512.01160.055
29.42%
7NNitrogenNitrogen414.00756.028
27.44%
1HHydrogenHydrogen81.0088.064
3.95%
Total204.142100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2015-021a
  • Tinnunculiet
  • UM1993-32-CH:NO
  • Unnamed (Uric Acid Dihydrate)

In other languages

German
IMA 2015-021a · Tinnunculit
Spanish
Tinnunculita
Italian
Tinnunculite

Classification

Strunz
10th ed.

10.CA.65

  • 10Organic CompoundsClass
  • 10.CMiscellaneous Organic MineralsDivision
  • 10.CAMiscellaneous Organic MineralsGroup
  • 10.CA.65TinnunculiteSpecies

Literature, links & citation

Citations
  1. 1965Ringertz, H. (1965) Optical and crystallographic data of uric acid and its dihydrate. Acta Crystallographica, 19 (2) 286-287 doi:10.1107/s0365110x65003298DOI: 10.1107/s0365110x65003298
  2. 1966Lonsdale, K., Mason, P. (1966) Uric Acid, Uric Acid Dihydrate, and Urates in Urinary Calculi, Ancient and Modern. Science, 152 (3728). 1511-1512 doi:10.1126/science.152.3728.1511DOI: 10.1126/science.152.3728.1511
  3. 1966Shirley, R. (1966) Uric Acid Dihydrate: Crystallography and Identification. Science, 152 (3728). 1512-1513 doi:10.1126/science.152.3728.1512DOI: 10.1126/science.152.3728.1512
  4. 1971Lonsdale, K., Sutor, D. J. (1971) Uric Acid Dihydrate in Bird Urine. Science, 172 (3986). 958-959 doi:10.1126/science.172.3986.958DOI: 10.1126/science.172.3986.958
  5. 1975Hesse, A.; Schneider, H. J.; Berg, W.; Hienzsch, E. (1975): Uric acid dihydrate as urinary calculus component. Investigative Urology 12, 405-409.
