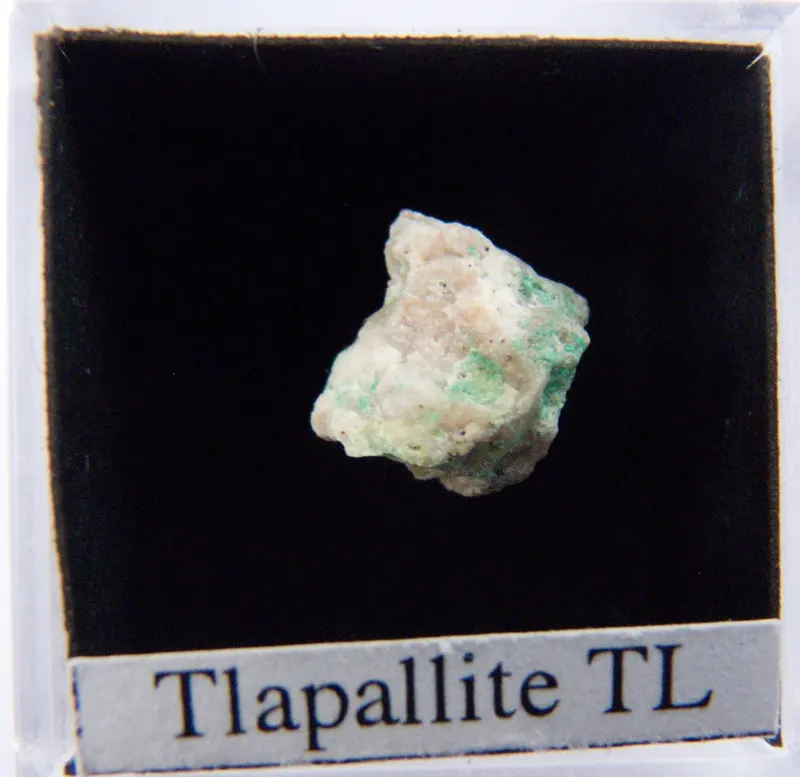

Tlapallite

(Ca,Pb)3CaCu6[Te4+3Te6+O12]2(Te4+O3)2(SO4)2 · 3H2O
IMA status
  • Approved
IMA symbol
Tpl
IMA approved
1977
Also known as
  • IMA1977-044
  • Tlapalliet

Where it forms, where it's found

Geological setting

Secondary mineral in a tellurium deposit.

Type locality
Bambollita Mine
  1. Moctezuma
  2. Moctezuma Municipality
  3. Sonora
  4. Mexico

29.6925°, -109.7081°

12recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Viridian green RHS- I28A
Streak
Pale green
Density
4.65 g/cm³

Optical

Optical type
Biaxial (-)
Refractive index
1.815 – 2.115
Surface relief
Very high
Principal indices
nα 1.815 – 1.915 · nβ 1.96 – 2.115 · nγ 1.96 – 2.115
Pleochroism
Visible

Shades of bottle green.

Dispersion
r > v
UV response
None
Notes

Absorption: Z = Y > X.

Michel-Lévy diagramhighlighted lineδ = 0.1725
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]1725 nm4th order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation1725 nm
Order4th order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
#90
Cell parameters
a = 9.1219(17) Å · c = 11.9320(9) Å
Morphology

Sheaves of radially arranged scales normal to the surface of botryoidal material.

Type-locality form

Occurs as a thin paint-like film on the rock fracture surfaces in and adjacent to thin veins cutting intensely sericitized rhyolites.

Comment

Well-crystallised tlapallite at the Wildcat prospect, Utah, USA.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
52TeTelluriumTellurium10127.6001276.000
40.31%
8OOxygenOxygen4115.999655.959
20.72%
82PbLeadLead3207.200621.600
19.64%
29CuCopperCopper663.546381.276
12.05%
20CaCalciumCalcium440.078160.312
5.06%
16SSulfurSulfur232.06064.120
2.03%
1HHydrogenHydrogen61.0086.048
0.19%
Total3165.315100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1977-044
  • Tlapalliet

In other languages

German
IMA 1977-044 · Tlapallit
Italian
Tlapallite

Classification

Strunz
10th ed.

4.JL.25

  • 4OxidesClass
  • 4.JArsenites, antimonites, bismuthites, sulfites, selenites, tellurites; iodatesDivision
  • 4.JLTellurites with additional anions, without H2OGroup
  • 4.JL.25TlapalliteSpecies
Dana
8th ed.

34.08.02.01

  • 34Selenites, Tellurites and SulfitesClass
  • 34.08Compound Selenites, Tellurites and SulfitesType
  • 34.08.02— unnamed intermediate level —Group
  • 34.08.02.01TlapalliteSpecies
CIM

28.4.13

  • 28Selenites, Selenates, Tellurites, and TelluratesClass
  • 28.4TelluratesGroup
  • 28.4.13TlapalliteSpecies

Literature, links & citation

Citations
  1. Mineralogical Record: 11: 183-186.
  2. 1978Williams, S. A., Duggan, Marjorie (1978) Tlapallite, a new mineral from Moctezuma, Sonora, Mexico. Mineralogical Magazine, 42 (322) 183-186 doi:10.1180/minmag.1978.042.322.03 DOI: 10.1180/minmag.1978.042.322.03
  3. 1979Fleischer, Michael, Chao, George Y., Pabst, and Adolf (1979) New Mineral Names. American Mineralogist, 64 (3-4) 464-467
  4. 2005(2005) Tlapallite. Handbook of Mineralogy. Mineralogical Society of America
  5. 2019Missen, Owen P., Kampf, Anthony R., Mills, Stuart J., Housley, Robert M., Spratt, John, Welch, Mark D., Coolbaugh, Mark F., Marty, Joe, Chorazewicz, Marek, Ferraris, Cristiano (2019) The crystal structures of the mixed-valence tellurium oxysalts tlapallite, (Ca,Pb)3CaCu6[Te4+3Te6+O12]2(Te4+O3)2(SO4)2·3H2O, and carlfriesite, CaTe4+2Te6+O8. Mineralogical Magazine, 83 (4) 539-549 doi:10.1180/mgm.2019.9DOI: 10.1180/mgm.2019.9
