Triangulite

Al3(UO2)4(PO4)4(OH)5 · 5H2O
IMA status
  • Approved
IMA symbol
Tri
Discovered
1981
IMA approved
1981
Also known as
  • IMA1981-056
  • Trianguliet

Where it forms, where it's found

Geological setting

Quartz-K-feldspar-columbite zone of a complex pegmatite.

Type locality
Kobokobo pegmatite
  1. Mwenga Territory
  2. South Kivu
  3. DR Congo

-3.1000°, 28.1333°

3recorded occurrences
Source · OpenStreetMap

Radioactivity

Physical

Hardness
123456789102 – 3/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Bright yellow · yellow-green
Density
3.7 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 80° · 2V calc = 82°
Refractive index
1.639 – 1.704
Surface relief
High
Principal indices
nα 1.639 · nβ 1.665 · nγ 1.704
Pleochroism
Visible

Y pale green-yellow, Z bright yellow.

Dispersion
relatively weak
UV response
Type material was not fluorescent. Material from Rhyolite Ridge, Nevada is fluorescent bright green under SW UV.
Notes

Z ≃ [0_11], Y ≃ [011], X ⊥ [100]

Michel-Lévy diagramhighlighted lineδ = 0.0650
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]650 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation650 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Triclinic
Cell parameters
a = 10.39(3) Å · b = 10.56(3) Å · c = 10.60(3) Å
Cell angles
α = 116.4(1) ° · β = 107.8(1) ° · γ = 113.4(1) °
Ratio a:b:c
1 : 1.016 : 1.020
Z
1
Morphology

Triangular tablets flattened on (100) or pseudo rhombohedral crystals.

Twinning

Common, 180° rotational twin about [011] and [011].

Type-locality form

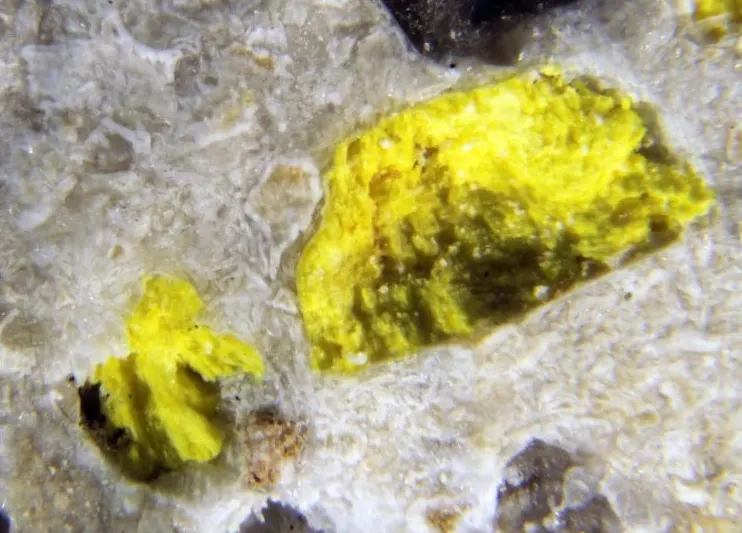

Bright yellow, aggregates of flat, triangular or rhombohedral crystals with a maximum length of 0.2 mm.

Comment

Point Group: _1 or 1; Space Group: P_1 or P1.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
92UUraniumUranium4238.029952.116
55.48%
8OOxygenOxygen3415.999543.966
31.70%
15PPhosphorusPhosphorus430.974123.896
7.22%
13AlAluminiumAluminium326.98280.946
4.72%
1HHydrogenHydrogen151.00815.120
0.88%
Total1716.044100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1981-056
  • Trianguliet

In other languages

German
IMA 1981-056 · Triangulit
Italian
Triangulite

Classification

Strunz
10th ed.

8.EB.45

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.EUranyl phosphates and arsenatesDivision
  • 8.EBUO2:RO4 = 1:1Group
  • 8.EB.45TrianguliteSpecies
Dana
8th ed.

40.2a.34.01

  • 40Hydrated Normal Phosphates, Arsenates and VanadatesClass
  • 40.2aAB2(XO4)2·xH2O, containing (UO2)2+Type
  • 40.2a.34— unnamed intermediate level —Group
  • 40.2a.34.01TrianguliteSpecies
CIM

19.11.24

  • 19PhosphatesClass
  • 19.11Phosphates of UGroup
  • 19.11.24TrianguliteSpecies

Literature, links & citation

Citations
  1. 1982Deliens, Michel, Piret, Paul (1982) Les phosphates d'uranyle et d'aluminium de Kobokobo. VI. La triangulite, Al3(UO2•PO4)4(OH)5•5H2O, nouveau minéral. Bulletin de Minéralogie, 105 (6) 611-614 doi:10.3406/bulmi.1982.7642 DOI: 10.3406/bulmi.1982.7642
  2. 1984Dunn, Pete J., Grice, Joel D. Fleischer, Michael, Pabst, Adolf (1984) New mineral names. American Mineralogist, 69 (1-2) 210-215
  3. 2005(2005) Triangulite. Handbook of Mineralogy. Mineralogical Society of America
