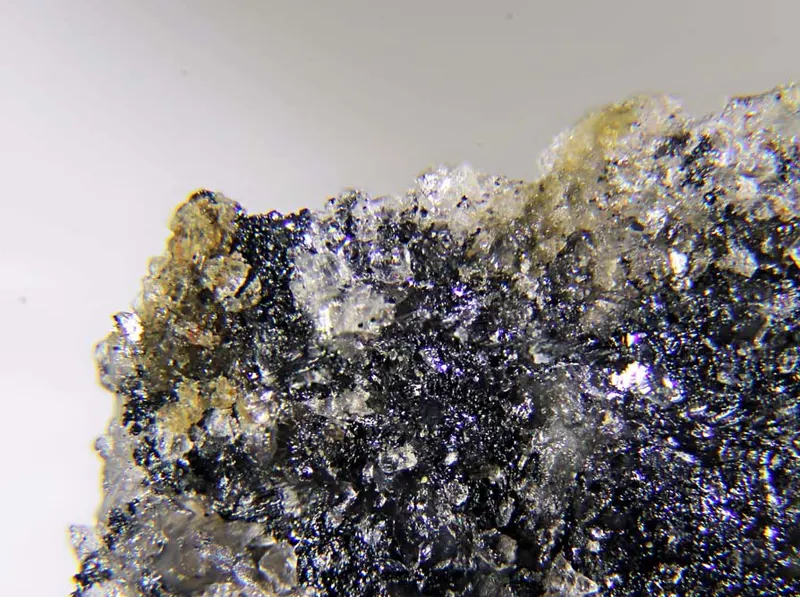

Trigonite

Pb3Mn2+(AsO3)2(AsO2OH)
IMA status
  • Approved
  • Grandfathered
IMA symbol
Tgn
Discovered
1920
Also known as
  • Trigoniet

Where it forms, where it's found

Geological setting

Metamorphosed Fe-Mn ore body.

Type locality
Långban Mine
  1. Långban Ore District
  2. Filipstad
  3. Värmland County
  4. Sweden

59.8554°, 14.2648°

1recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789102 – 3/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Translucent
Colour
Yellow to yellow-brown · dark brown or black · pale yellow to brownish yellow in transmitted light
Streak
Yellow
Cleavage
Perfect

On (010), perfect; on (101), good.

Fracture
Irregular/Uneven
Density
6.1 g/cm³

Optical

Optical type
Biaxial (-)
Refractive index
2.07 – 2.12
Surface relief
Very high
Principal indices
nα 2.07 · nβ 2.1 · nγ 2.12
Dispersion
r < v strong
Extinction
Y = b.
Notes

2V = very large

Michel-Lévy diagramhighlighted lineδ = 0.0500
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]500 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation500 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Cell parameters
a = 7.258 Å · b = 6.822 Å · c = 11.088 Å
Cell angles
β = 91.45 °
Ratio a:b:c
1 : 0.940 : 1.528
Z
2
Morphology

Crystals domatic with a trigonal outline from the development of numerous domatic forms including c _s, and _p; also complexly modified; thick tabular, flattened on (010); subparallel growths.

Comment

Space Group: Pn

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
82PbLeadLead3207.200621.600
59.41%
33AsArsenicArsenic374.922224.766
21.48%
8OOxygenOxygen915.999143.991
13.76%
25MnManganeseManganese154.93854.938
5.25%
1HHydrogenHydrogen11.0081.008
0.10%
Total1046.303100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Trigoniet

In other languages

German
Trigonit
Italian
Trigonite

Classification

Strunz
10th ed.

4.JB.40

  • 4OxidesClass
  • 4.JArsenites, antimonites, bismuthites, sulfites, selenites, tellurites; iodatesDivision
  • 4.JBArsenites, antimonites, bismuthites; with additional anions, without H2OGroup
  • 4.JB.40TrigoniteSpecies
Dana
8th ed.

45.01.02.01

  • 45Acid and Normal Antimonites and ArsenitesClass
  • 45.01MiscellaneousType
  • 45.01.02Trigonite GroupGroup
  • 45.01.02.01TrigoniteSpecies

Literature, links & citation

Citations
  1. 1920Flink, Gustaf (1920) Trigonit och Dixenit, två nya mineral från Långbanshytte gruvor. Geologiska Föreningen i Stockholm Förhandlingar, 42 (7) 436-452 doi:10.1080/11035892009444477 DOI: 10.1080/11035892009444477
  2. 1921Wherry, E.T. (1921) New minerals. American Mineralogist: 6: 92-95.
  3. 1934Larsen, E.S.; Berman, H. (1934) The microscopic determination of the nonopaque minerals. Bulletin of the US Geological Survey Vol. 848. US Geological Survey p.1-266. doi:10.3133/b848 DOI: 10.3133/b848
  4. 1969Welin, E. (1969) Notes on the mineralogy of Sweden 6. X-ray powder data for minerals from Långban and the related mineral deposits of Central Sweden. Arkiv för Mineralogi och Geologi, 4 (6, nr 30). 499-541
  5. 1978Pertlik, F. (1978) The crystal structure of trigonite, Pb3Mn(AsO3)2(AsO2OH). Tschermaks Mineralogische und Petrographische Mitteilungen: 25: 95-105.
