Tsygankoite

Mn8Tl8Hg2(Sb21Pb2Tl)S48
IMA status
  • Approved
IMA symbol
Tsy
IMA approved
2017
Also known as
  • IMA2017-088
  • Tsygankoiet

Where it forms, where it's found

Type locality
Vorontsovskoe deposit (Vorontsovsk gold deposit
  1. Vorontsovka deposit)
  2. Tur'insk
  3. Turya river
  4. Serovsky District
  5. Sverdlovsk Oblast
  6. Russia

59.6514°, 60.2156°

1recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Transparency
Opaque
Colour
Black
Streak
Black
Tenacity
brittle
Cleavage
None Observed
Fracture
Irregular/Uneven
Density
5.450 g/cm³

Optical

Pleochroism
Non-pleochroic
Optical colour
White
Anisotropism
Strong
Internal reflections
None observed
Tropism
Anisotropic
UV response
None

Crystallography

Crystal system
Monoclinic
Space group
C1 2/m 1
Cell parameters
a = 21.362(4) Å · b = 3.858(1) Å · c = 27.135(4) Å
Cell angles
β = 106.94(1) °
Ratio a:b:c
1 : 0.181 : 1.270
Unit cell volume
2139.19 ų
Z
1
Parting
None observed
Type-locality form

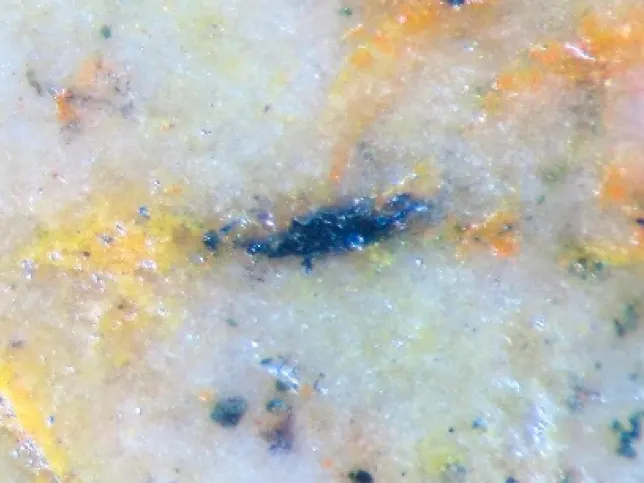

Lath-like elongated crystals up to 0.2 mm embedded in calcite–dolomite–clinochlore matrix.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
51SbAntimonyAntimony21121.7602556.960
35.56%
81TlThalliumThallium9204.3801839.420
25.58%
16SSulfurSulfur4832.0601538.880
21.40%
25MnManganeseManganese854.938439.504
6.11%
82PbLeadLead2207.200414.400
5.77%
80HgMercuryMercury2200.592401.184
5.58%
Total7190.348100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2017-088
  • Tsygankoiet

In other languages

German
IMA 2017-088 · Tsygankoit

Classification

Strunz
10th ed.

2.HD.65

  • 2Sulfides and SulfosaltsClass
  • 2.HSulfosalts of SnS archetypeDivision
  • 2.HDWith TlGroup
  • 2.HD.65TsygankoiteSpecies

Literature, links & citation

Citations
  1. vk.com (n.d.) https://vk.com/wall16564003_1519
  2. 2018Hålenius, U., Hatert, F., Pasero, M., Mills, S. J. (2018) IMA Commission on New Minerals, Nomenclature and Classification (CNMNC) Newsletter 41. European Journal of Mineralogy, 30. 183-186 doi:10.1127/ejm/2018/0030-2736DOI: 10.1127/ejm/2018/0030-2736
  3. 2018Kasatkin, Anatoly, Makovicky, Emil, Plášil, Jakub, Škoda, Radek, Agakhanov, Atali, Karpenko, Vladimir, Nestola, Fabrizio (2018) Tsygankoite, Mn8Tl8Hg2(Sb21Pb2Tl)Σ24S48, a New Sulfosalt from the Vorontsovskoe Gold Deposit, Northern Urals, Russia. Minerals, 8 (5) 218 doi:10.3390/min8050218 DOI: 10.3390/min8050218
  4. 2020(2020) Tsygankoite. Handbook of Mineralogy. Mineralogical Society of America
