Tumchaite

Na2ZrSi4O11 · 2H2O
IMA status
  • Approved
IMA symbol
Tum
IMA approved
1999
Also known as
  • IMA1999-041
  • Tumchaiet

Where it forms, where it's found

Type locality
Vuoriyarvi alkaline-ultrabasic massif
  1. Northern Karelia
  2. Murmansk Oblast
  3. Russia
1recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Transparent · Translucent
Colour
Colourless to white
Streak
White
Tenacity
very brittle
Cleavage
Perfect

(100) perfect

Fracture
Irregular/Uneven
Density
2.78 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 60° · 2V calc = 59.4°
Refractive index
1.57 – 1.594
Surface relief
Moderate
Principal indices
nα 1.570 · nβ 1.588 · nγ 1.594
Pleochroism
Visible

Y = Z = colorless, X = greenish-gray

Dispersion
r > v
Extinction
Y = b, c ∧ Z = 3°. Positive elongation.
UV response
None observed
Michel-Lévy diagramhighlighted lineδ = 0.0240
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]240 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation240 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/c
Cell parameters
a = 9.144(4) Å · b = 8.818(3) Å · c = 7.537(3) Å
Cell angles
β = 113.22(3) °
Ratio a:b:c
1 : 0.964 : 0.824
Z
2
Twinning

Observed on (100)

Parting
Not observed
Type-locality form

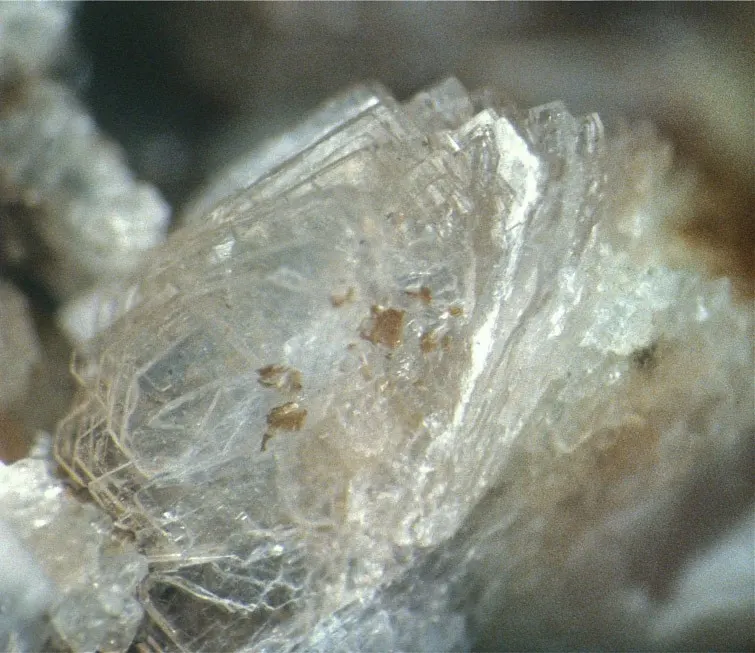

Occurs as tabular monoclinic crystals up to 0.2 × 1.2 × 2.5 mm.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1315.999207.987
45.06%
14SiSiliconSilicon428.085112.340
24.34%
40ZrZirconiumZirconium191.22491.224
19.77%
11NaSodiumSodium222.99045.980
9.96%
1HHydrogenHydrogen41.0084.032
0.87%
Total461.563100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1999-041
  • Tumchaiet

In other languages

German
IMA 1999-041 · Tumchait
Italian
tumchaite

Classification

Strunz
10th ed.

9.EA.60

  • 9SilicatesClass
  • 9.EPhyllosilicatesDivision
  • 9.EASingle nets of tetrahedra with 4-, 5-, (6-), and 8-membered ringsGroup
  • 9.EA.60TumchaiteSpecies

Literature, links & citation

Citations
  1. 2000Subbotin, Victor V., Merlino, Stefano, Pushcharovsky, Dmitry Yu., Pakhomovsky, Yakov A., Ferro, Orazio, Bogdanova, Alla N., Voloshin, Anatoly V., Sorokhtina, Natalia V., Zubkova, Natalia V. (2000) Tumchaite Na2(Zr,Sn)Si4O11·2H2O—A new mineral from carbonatites of the Vuoriyarvi alkali-ultrabasic massif, Murmansk Region, Russia. American Mineralogist, 85 (10) 1516-1520 doi:10.2138/am-2000-1024 DOI: 10.2138/am-2000-1024
  2. 2002Mandarino, Joseph A. (2002) New minerals. The Canadian Mineralogist, 40 (3) 1001-1020 doi:10.2113/gscanmin.40.3.1001 DOI: 10.2113/gscanmin.40.3.1001
  3. 2007(2007) New Minerals From Former Soviet Union Countries 1998-2006. Mineralogical Almanac Vol. 11
  4. 2021(2021) Tumchaite. Handbook of Mineralogy. Mineralogical Society of America
