Tundrite-(Ce)

Na2Ce2TiO2(SiO4)(CO3)2
IMA status
  • Approved
IMA symbol
Tnd-Ce
Also known as
  • Tundriet-(Ce)

Where it forms, where it's found

Geological setting

Nepheline syenite pegmatite.

Type locality
Pegmatite No. 45
  1. Lepkhe-Nel'm Mt
  2. Seidozero Lake
  3. Lovozersky District
  4. Murmansk Oblast
  5. Russia
5recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Colour
Yellow-brown · green-yellow
Tenacity
brittle
Density
3.70 g/cm³

Optical

Optical type
Biaxial (+)
Refractive index
1.743 – 1.88
Surface relief
Very high
Principal indices
nα 1.743 · nβ 1.8 · nγ 1.88
Pleochroism
Visible

X = pale yellow; Z = greenish yellow.

Dispersion
r > v moderate
Extinction
Z ∧ c = 14°.
Michel-Lévy diagramhighlighted lineδ = 0.1370
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]1370 nm3rd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation1370 nm
Order3rd order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 7.5702(6) Å · b = 13.949(2) Å · c = 5.0235(5) Å
Cell angles
α = 100.19(1) ° · β = 70.88(1) ° · γ = 101.26(1) °
Ratio a:b:c
1 : 1.843 : 0.664
Unit cell volume
487.91 ų
Z
2
Type-locality form

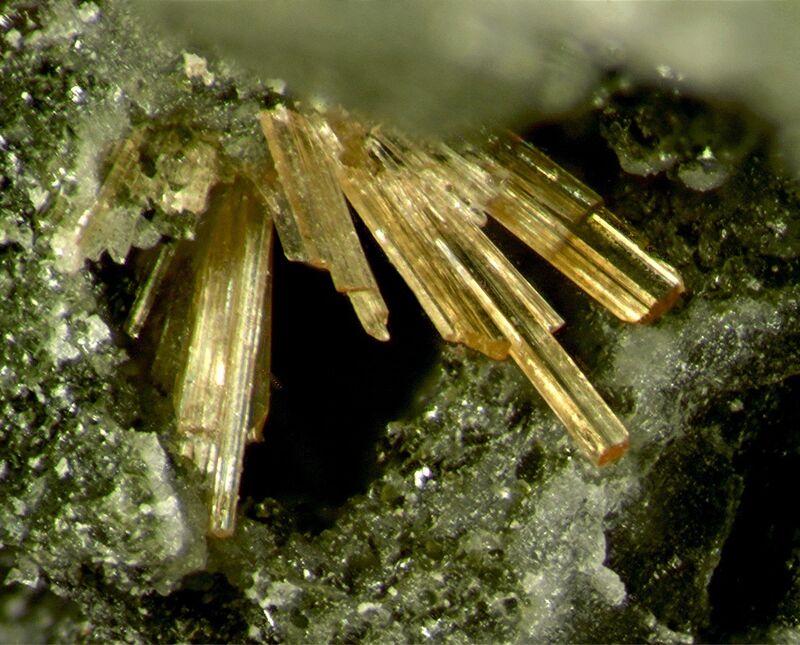

Fine acicular crystals up to 5 mm long and spherulites up to 15 mm in diameter. Alters to rhabdophane.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
58CeCeriumCerium2140.116280.232
45.33%
8OOxygenOxygen1215.999191.988
31.06%
22TiTitaniumTitanium147.86747.867
7.74%
11NaSodiumSodium222.99045.980
7.44%
14SiSiliconSilicon128.08528.085
4.54%
6CCarbonCarbon212.01124.022
3.89%
Total618.174100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Tundriet-(Ce)

In other languages

German
Tundrit-(Ce)
Italian
Tundrite- · Tundrite-(Ce)

Classification

Strunz
10th ed.

9.AH.10

  • 9SilicatesClass
  • 9.ANesosilicatesDivision
  • 9.AHNesosilicates with CO3, SO4, PO4, etc.Group
  • 9.AH.10Tundrite-(Ce)Species
Dana
8th ed.

17.01.11

  • 17Compound CarbonatesClass
  • 17.01MiscellaneousType
  • 17.01.11Tundrite GroupGroup
  • 17.01.11Tundrite-(Ce)Species
CIM

17.4.15

  • 17Silicates Containing other AnionsClass
  • 17.4Silicates with carbonatesGroup
  • 17.4.15Tundrite-(Ce)Species

Group, growth & confusion

In the same group
1 members

Literature, links & citation

Citations
  1. 1963Semenov, E.I. (1963) Mineralogy of the rare earths. Izdatelstvo Akad. Nauk SSSR, 209-210 (in Russian).
  2. 1965Fleischer, Michael (1965) New Mineral Names. American Mineralogist, 50 (11-12) 2096-2111
  3. 1967Semenov, E.I., Kazakova, M.E., Aleksandrova, R.A. (1967) The Lovozero minerals nenadkevichite, gerassimovskite and tundrite from Ilímaussaq, South Greenland. Meddelelser om Grønland: 181: 1-11. Abstract: American Mineralogist (1968): 53: 1780.
  4. 1974Shlyukova, Z.V., Vlasova, Ye.V., Kazakova, M.E., Piloyan, G.O., Shumyatskaya, I.G., Borutskiy, B.E. (1974) New data on tundrite. Doklady Akademii Nauk SSSR., Earth Sciences Section: 211: 128-131. Abstract: American Mineralogist: 59: 633.
  5. 1976Shumyatskaya, N.G., Voronkov, A.A., Ilyukhin, V.V., Belov, N.V. (1976) Tundrite, Na2Ce2TiO2[SiO4](CO3)2 - refinement of the crystal structure and chemical formula. Soviet Physics – Crystallography: 21: 399-404.
