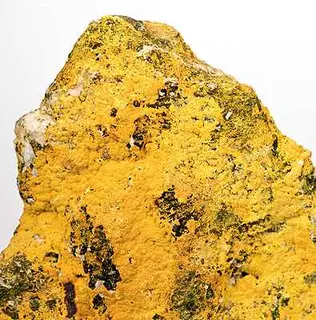

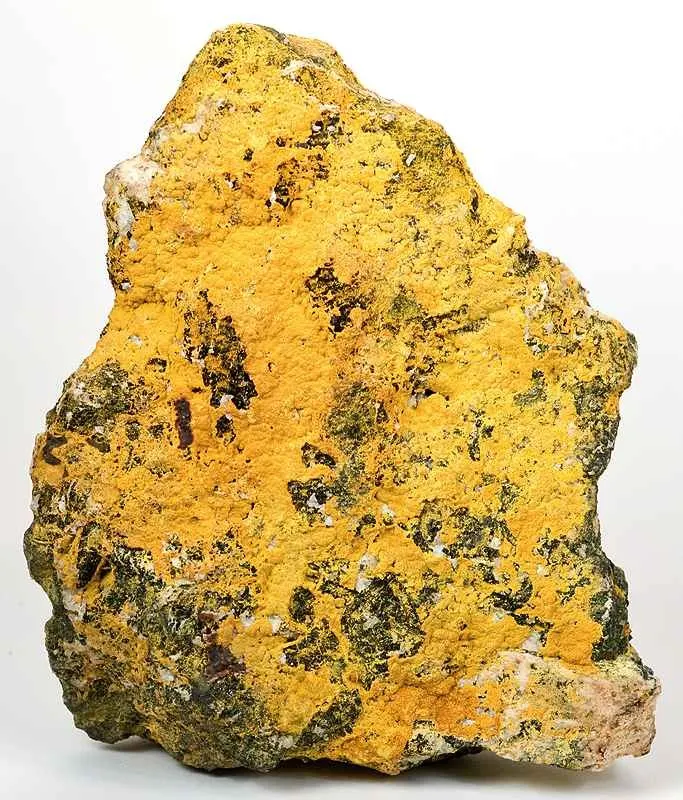

Tungstite

WO3 · H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Tgs
Discovered
1868
Also known as
  • Acide tungstique
  • Tungstic Ocher
  • Tungstite (of Dana)
  • +3 more

Where it forms, where it's found

Type locality
Old Mine Park (Old Tungsten Mine)
  1. Long Hill
  2. Trumbull
  3. Fairfield County
  4. Connecticut
  5. USA

41.2892°, -73.2272°

133recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Yellow · yellow-green · golden-yellow · yellow in transmitted light
Cleavage
Perfect

(001) perfect; (110) imperfect

Density
5.517 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 26 – 27°
Refractive index
2.09 – 2.26
Surface relief
Very high
Principal indices
nα 2.09 · nβ 2.24 · nγ 2.26
Pleochroism
Visible

X = colorless; Y = Z = deep yellow.

Dispersion
r < v extreme
Michel-Lévy diagramhighlighted lineδ = 0.1700
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]1700 nm4th order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation1700 nm
Order4th order
XPL colour

Crystallography

Crystal system
Orthorhombic
Cell parameters
a = 5.249(2) Å · b = 10.711(5) Å · c = 5.133(2) Å
Ratio a:b:c
1 : 2.041 : 0.978
Z
4
Morphology

Massive, powdery to earthy and as microscopic platy crystals.

Comment

Space Group: Pmnb.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
74WTungstenTungsten1183.840183.840
73.58%
8OOxygenOxygen415.99963.996
25.61%
1HHydrogenHydrogen21.0082.016
0.81%
Total249.852100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Acide tungstique
  • Tungstic Ocher
  • Tungstite (of Dana)
  • Wolframine
  • Wolframocker
  • Wolframsäure

In other languages

German
Tungstit
Spanish
Tungstita
Italian
Tungstite
Japanese
重石華

Classification

Strunz
10th ed.

4.FJ.10

  • 4OxidesClass
  • 4.FHydroxides (without V or U)Division
  • 4.FJHydroxides with H2O +- (OH); corner-sharing octahedraGroup
  • 4.FJ.10TungstiteSpecies
Dana
8th ed.

04.05.02.01

  • 04Simple OxidesClass
  • 04.05AX3Type
  • 04.05.02— unnamed intermediate level —Group
  • 04.05.02.01TungstiteSpecies
CIM

7.15.5

  • 7Oxides and HydroxidesClass
  • 7.15Oxides of Mo and WGroup
  • 7.15.5TungstiteSpecies

Group, growth & confusion

Often grow together
1 mineral

Literature, links & citation

Citations
  1. 1822Silliman (1822) American Journal of Science: 4: 52.
  2. 1908Walker, T. L. (1908). ART. XXXII.--A Review of the Minerals Tungstite and Meymacite. American Journal of Science (1880-1910), 25(148), 305.
  3. 1933Walker (1933) University of Toronto Stud., Geol. Ser., no. 35: 13.
  4. 1944Kerr, Paul F., Young, Ford (1944) Hydrotungstite, a new mineral from Oruro, Bolivia. American Mineralogist, 29 (5-6) 192-210
  5. 1944Palache, Charles, Berman, Harry, Frondel, Clifford (1944) The System of Mineralogy (7th ed.) Vol. 1 - Elements, Sulfides, Sulfosalts, Oxides. John Wiley and Sons, New York.
