Tuscanite

KCa6(Si,Al)10O22(SO4,CO3)2(OH) · H2O
IMA status
  • Approved
IMA symbol
Tus
Discovered
1976
IMA approved
1976
Also known as
  • IMA1976-031
  • Tuscaniet
  • Tuscanita

Where it forms, where it's found

Geological setting

In ejected metamorphic calcareous blocks from a pumice deposit.

Type locality
Case Collina
  1. Pitigliano
  2. Grosseto Province
  3. Tuscany
  4. Italy

42.6425°, 11.7303°

10recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105.5 – 6/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Colourless
Streak
White
Cleavage
Distinct/Good

(100)

Density
2.83 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 40° · 2V calc = 36°
Refractive index
1.581 – 1.591
Surface relief
Moderate
Principal indices
nα 1.581 · nβ 1.59 · nγ 1.591
Dispersion
r < v moderate
Notes

Z = b; X Λ c = 40°.

Michel-Lévy diagramhighlighted lineδ = 0.0100
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]100 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation100 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/a
Cell parameters
a = 24.036(14) Å · b = 5.110(3) Å · c = 10.888(8) Å
Cell angles
β = 106.96(3) °
Ratio a:b:c
1 : 0.213 : 0.453
Z
2
Morphology

Platy on (100).

Twinning

Twinning is frequent, with (100) as the twin plane.

Type-locality form

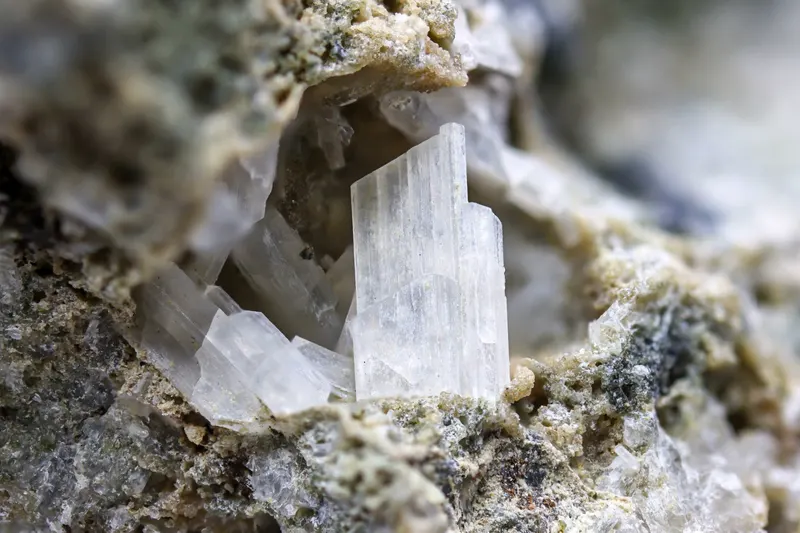

Flattened, transparent crystals, up to about 1 x 1 x 0.2 cm in size.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen3815.999607.962
39.75%
14SiSiliconSilicon1028.085280.850
18.37%
13AlAluminiumAluminium1026.982269.820
17.64%
20CaCalciumCalcium640.078240.468
15.72%
16SSulfurSulfur232.06064.120
4.19%
19KPotassiumPotassium139.09839.098
2.56%
6CCarbonCarbon212.01124.022
1.57%
1HHydrogenHydrogen31.0083.024
0.20%
Total1529.364100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Fe
  • Mg
  • Sr
  • Cl

Synonyms

  • IMA1976-031
  • Tuscaniet
  • Tuscanita

In other languages

German
IMA 1976-031 · Tuscanit
Italian
Tuscanite

Classification

Strunz
10th ed.

9.EG.45

  • 9SilicatesClass
  • 9.EPhyllosilicatesDivision
  • 9.EGDouble nets with 6-membered and larger ringsGroup
  • 9.EG.45TuscaniteSpecies
Dana
8th ed.

73.01.02.02

  • 73Phyllosilicates Condensed Tetrahedral SheetsClass
  • 73.01Condensed Tetrahedral Sheets with double layersType
  • 73.01.02Latiumite groupGroup
  • 73.01.02.02TuscaniteSpecies
CIM

17.10.7

  • 17Silicates Containing other AnionsClass
  • 17.10Silicates with sulphate, molybdate or tungstateGroup
  • 17.10.7TuscaniteSpecies

Literature, links & citation

Citations
  1. 1977Orlandi, Paolo, Leoni, Leonardo, Mellini, Marcello, Merlino, Stefano (1977) Tuscanite, a new mineral related to latiumite. American Mineralogist, 62 (11-12) 1110-1113
  2. 1977Mellini, Marcello, Merlino, Stefano, Rossi, Giuseppe (1977) The crystal structure of tuscanite. American Mineralogist, 62 (11-12) 1114-1120
  3. 2001(2001) Tuscanite. Handbook of Mineralogy. Mineralogical Society of America
  4. 2005Bonaccorsi, E., Ventura, M., Merlino, S. (2005): Latiumite and tuscanite: crystal chemistry and thermal behaviour. GeoItalia 2005, Quinto Forum Italiano di Scienze della Terra Spoleto 2005, vol. Abstract, 2005, 00-01.
  5. 2023Zubkova, Natalia V., Chukanov, Nikita V., Varlamov, Dmitry A., Vigasina, Marina F., Pekov, Igor V., Ksenofontov, Dmitry A., Pushcharovsky, Dmitry Yu. (2023) New data on the crystal chemistry of the natural two-layer aluminosilicates latiumite and tuscanite. Acta Crystallographica Section B Structural Science, Crystal Engineering and Materials, 79 (4) 296-304 doi:10.1107/s2052520623004638 DOI: 10.1107/s2052520623004638
