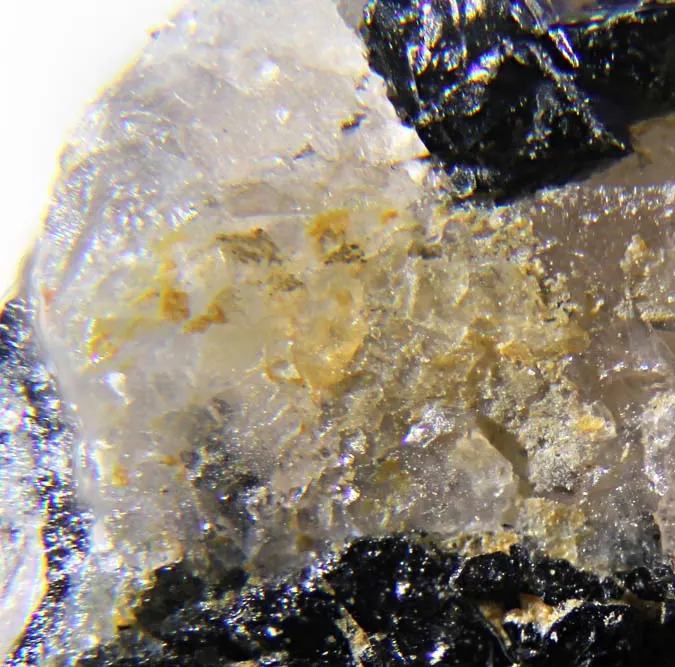

Tusionite

Mn2+Sn(BO3)2
IMA status
  • Approved
IMA symbol
Tsn
Discovered
1982
IMA approved
1982
Also known as
  • IMA1982-090
  • Tusioniet

Where it forms, where it's found

Geological setting

Miarolitic granite pegmatite.

Boron-rich complex pegmatites of the elbaite subtype.

Type locality
Tusion River Valley
  1. Gorno-Badakhshan
  2. Tajikistan
3recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105 – 6/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Colourless · yellow-brown · honey yellow
Cleavage
Perfect

(001)

Density
4.73 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.752 – 1.854
Surface relief
Very high
Principal indices
nω 1.854 · nε 1.752
Optical colour
grayish white
UV response
Not fluorescent
Michel-Lévy diagramhighlighted lineδ = 0.1020
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]1020 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation1020 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
#80
Cell parameters
a = 4.781(1) Å · c = 15.381(7) Å
Z
3
Morphology

Thin platy crystals, to 1.5 cm, in rosettelike aggregates.

Type-locality form

Lamellar intergrowths up to 1.5 cm with tetrawickmanite and as small tabular crystals.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
50SnTinTin1118.710118.710
40.76%
8OOxygenOxygen615.99995.994
32.96%
25MnManganeseManganese154.93854.938
18.86%
5BBoronBoron210.81021.620
7.42%
Total291.262100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1982-090
  • Tusioniet

In other languages

French
tusionite
German
IMA 1982-090 · Tusionit
Spanish
Tusionita
Italian
Tusionite

Classification

Strunz
10th ed.

6.AA.15

  • 6BoratesClass
  • 6.AMonoboratesDivision
  • 6.AABO3, without additional anions; 1(D).Group
  • 6.AA.15TusioniteSpecies
Dana
8th ed.

24.03.03.02

  • 24Anhydrous BoratesClass
  • 24.03AmBn[XO3]pType
  • 24.03.03— unnamed intermediate level —Group
  • 24.03.03.02TusioniteSpecies
CIM

9.7.10

  • 9BoratesClass
  • 9.7Borates of MnGroup
  • 9.7.10TusioniteSpecies

Literature, links & citation

Citations
  1. 1983Konovalenko, S.I., Voloshin, A.V., Pakhomovskii, Y.A., Anen'yev, S.S., Perlina, G.A., Rogachev, D.L., Kuznetsov, V.Y. (1983) Tusionite, MnSn(BO3)2, a new borate from granite pegmatite of southwestern Pamir. Doklady Akademii Nauk SSSR, 272, 1449-1453.
  2. 1984Dunn, Pete J.; Cabri, Louis J.; Ferraiolo, James A.; Grice, Joel Do.; Jambor, John L.; Mueller, Wolfgang; Shigley, James E.; Puziewicz, Jacek; Vanko, David A. (1984) New mineral names. American Mineralogist, 69 (11-12). 1190-1196
  3. 1984Konovalenko, S. I., Voloshin, A. V., Pakhomovskiy, Ya. A., Anen'yev, S. S., Perlina, G. A., Rogachev, D. L., Kuznetsov, V. Ya. (1984) Tusionite, MnSn(BO3)2, a new Borate from Granite Pegmatite of Southwestern Pamir. International Geology Review, 26 (4) 481-485 doi:10.1080/00206818409466576DOI: 10.1080/00206818409466576
  4. 1994Cooper, M., Hawthorne, F. C., Novák, M., Taylor, M. C. (1994) The crystal structure of tusionite, Mn2+Sn4+(BO3)2, a dolomite-structure borate. The Canadian Mineralogist, 32 (4) 903-907
  5. 1996Grew, Edward S.; Anovitz, Lawrence M. - Eds. (1996) Boron - Mineralogy, Petrology and Geochemistry. Reviews in Mineralogy Vol. 33. Mineralogical Society of America p.862
