Tveitite-(Y)

(Y,Na)6(Ca,Na,REE)12(Ca,Na)F42
IMA status
  • Approved
IMA symbol
Ttt-Y
IMA approved
1975
Also known as
  • IMA1975-033
  • Tveitiet-(Y)

Where it forms, where it's found

Geological setting

Pegmatite dikes

Type locality
Høydalen
  1. Tørdal
  2. Drangedal
  3. Telemark
  4. Norway

59.1831°, 8.7596°

8recorded occurrences
Source · OpenStreetMap

Physical

Transparency
Transparent
Colour
White to pale yellow
Density
3.94 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 34°
Refractive index
1.476 – 1.481
Surface relief
Low
Principal indices
nα 1.476 · nβ 1.479 · nγ 1.481
Dispersion
r < v moderate
UV response
Faint yellow-orange in SW
Michel-Lévy diagramhighlighted lineδ = 0.0050
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]50 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation50 nm
Order1st order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
#80
Cell parameters
a = 17.02(2) Å · c = 9.679(2) Å
Unit cell volume
2428.2 ų
Z
18
Twinning

Complex, polysynthetic, forming three dimensional grating of spindles

Type-locality form

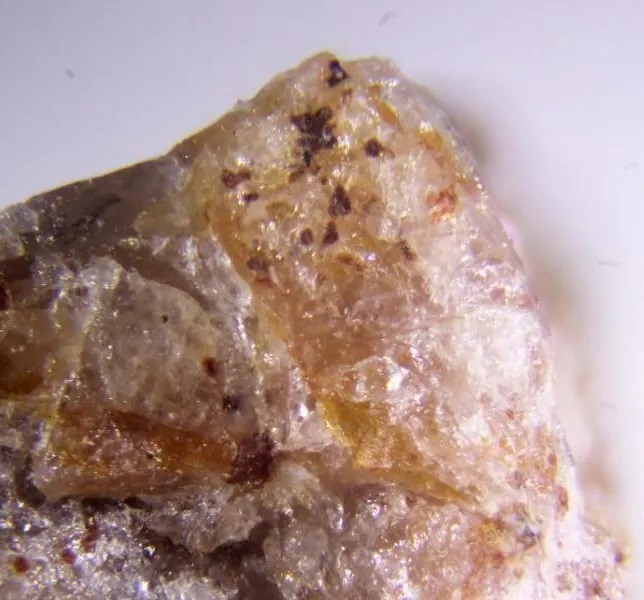

Irregular lump. Altered on the surface and in cracks to kainosite. Contains inclusions of a gadolinite group mineral.

Crystal structure

Synonyms

  • IMA1975-033
  • Tveitiet-(Y)

In other languages

German
IMA 1975-033 · Tveitit-(Y)
Italian
Tveitite · Tveitite- · Tveitite-(Y)
Chinese
氟钇钙矿

Classification

Strunz
10th ed.

3.AB.30

  • 3HalidesClass
  • 3.ASimple halides, without H2ODivision
  • 3.ABM:X = 1:2Group
  • 3.AB.30Tveitite-(Y)Species
Dana
8th ed.

09.02.01.03

  • 09Normal HalidesClass
  • 09.02AX2Type
  • 09.02.01Fluorite GroupGroup
  • 09.02.01.03Tveitite-(Y)Species
CIM

8.7.3

  • 8Halides - Fluorides, Chlorides, Bromides and Iodides; also Fluoborates and FluosilicatesClass
  • 8.7Halides of the rare earth metalsGroup
  • 8.7.3Tveitite-(Y)Species

Literature, links & citation

Citations
  1. 1977Bergstøl, Sveinung, Jensen, Brenda B., Neumann, Henrich (1977) Tveitite, a new calcium yttrium fluoride. Lithos, 10 (1) 81-87 doi:10.1016/0024-4937(77)90033-0DOI: 10.1016/0024-4937(77)90033-0
  2. 1977Fleischer, Michael, Pabst, Adolf, Mandarino, J. A., Chao, George Y. (1977) New mineral names. American Mineralogist, 62 (9-10) 1057-1061
  3. 1978Crook, Wilson W. (1978) Mineralogical Notes - Tveitite from the Barringer Hill District, Texas. The Mineralogical Record, 9 (6) 387
  4. 1978Greis, O. (1978) X-Ray Powder Investigations and Electron Diffraction from Single Crystals of Tveitite Ca113+δ(Y,RE)6-δF44-δ. Revue de Chimie Minérale, 15. 481
  5. 1979GREIS, O. (1979) ChemInform Abstract: POWDER X-RAY STUDIES AND SINGLE CRYSTAL ELECTRON DIFFRACTION ON TVEITITE CA13+Δ(Y, RE)6-ΔF44-Δ. Chemischer Informationsdienst, 10 (23) doi:10.1002/chin.197923001DOI: 10.1002/chin.197923001
