Ulrichite

CaCu(UO2)(PO4)2 · 4H2O
IMA status
  • Approved
IMA symbol
Ulr
Discovered
1988
IMA approved
1988
Also known as
  • IMA1988-006
  • Ulrichiet
  • Ulrichite (of Birch et al.)

Where it forms, where it's found

Geological setting

Miarolitic cavities in pegmatoidal granite

Type locality
Lake Boga granite quarry
  1. Lake Boga
  2. Swan Hill Rural City
  3. Victoria
  4. Australia

-35.5517°, 143.5814°

1recorded occurrences
Source · OpenStreetMap

Radioactivity

Physical

Hardness
123456789103 – 3.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Transparent · Translucent
Colour
Apple-green · lime-green
Streak
White
Cleavage
Perfect
Density
3.71 g/cm³

Optical

Optical type
Biaxial (-)
Refractive index
1.622 – 1.634
Surface relief
Moderate
Principal indices
nα 1.622 · nγ 1.634
Pleochroism
Non-pleochroic
Dispersion
r > v to r < v strong
UV response
Nonfluorescent
Notes

Parallel extinction, length slow

Michel-Lévy diagramhighlighted lineδ = 0.0120
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]120 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation120 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/m
Cell parameters
a = 12.79(3) Å · b = 6.85(2) Å · c = 13.02(3) Å
Cell angles
β = 91.03(7) °
Ratio a:b:c
1 : 0.536 : 1.018
Z
4
Morphology

Sometimes as flat prisms with complex terminations

Twinning

On (100) common

Type-locality form

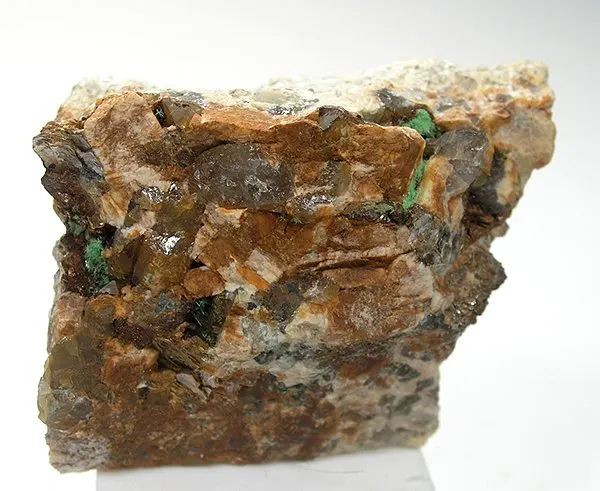

Radiating sprays of apple-green to lime-green acicular crystals up to 1 mm long and 0.05 mm thick, also as flat prisms with complex pyramidal terminations.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
92UUraniumUranium1238.029238.029
37.45%
8OOxygenOxygen1415.999223.986
35.24%
29CuCopperCopper163.54663.546
10.00%
15PPhosphorusPhosphorus230.97461.948
9.74%
20CaCalciumCalcium140.07840.078
6.30%
1HHydrogenHydrogen81.0088.064
1.27%
Total635.651100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1988-006
  • Ulrichiet
  • Ulrichite (of Birch et al.)

In other languages

German
IMA 1988-006 · Ulrichit
Spanish
Ulrichita
Italian
Ulrichite
Chinese
水磷铜钙铀矿
Arabic
ألريكايت · أولريشيت

Classification

Strunz
10th ed.

8.EA.15

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.EUranyl phosphates and arsenatesDivision
  • 8.EAUO2:RO4 = 1:2Group
  • 8.EA.15UlrichiteSpecies
Dana
8th ed.

40.2a.30.01

  • 40Hydrated Normal Phosphates, Arsenates and VanadatesClass
  • 40.2aAB2(XO4)2·xH2O, containing (UO2)2+Type
  • 40.2a.30— unnamed intermediate level —Group
  • 40.2a.30.01UlrichiteSpecies
CIM

19.11.19

  • 19PhosphatesClass
  • 19.11Phosphates of UGroup
  • 19.11.19UlrichiteSpecies

Literature, links & citation

Citations
  1. 1988Birch, W.D., Mumme, W.G., Segnit, E.R. (1988) Ulrichite: a new copper calcium uranium phosphate from Lake Boga, Victoria, Australia. Australian Mineralogist: 3(3): 125-131.
  2. 1990Jambor, John L., Grew, Edward S. (1990) New Mineral Names. American Mineralogist, 75 (1-2) 240-246
  3. 2001Kolitsch, U., Giester, G. (2001) Revision of the crystal structure of ulrichite, CaCu2+(UO2)(PO4)2·4H2O. Mineralogical Magazine, 65 (6) 717-724 doi:10.1180/0026461016560003DOI: 10.1180/0026461016560003
  4. 2005(2005) Ulrichite. Handbook of Mineralogy. Mineralogical Society of America
  5. 2005Burns, Peter C. (2005) U6+ minerals and inorganic compounds: insights into an expanded structural hierarchy of crystal structures. The Canadian Mineralogist, 43 (6) 1839-1894 doi:10.2113/gscanmin.43.6.1839 DOI: 10.2113/gscanmin.43.6.1839
