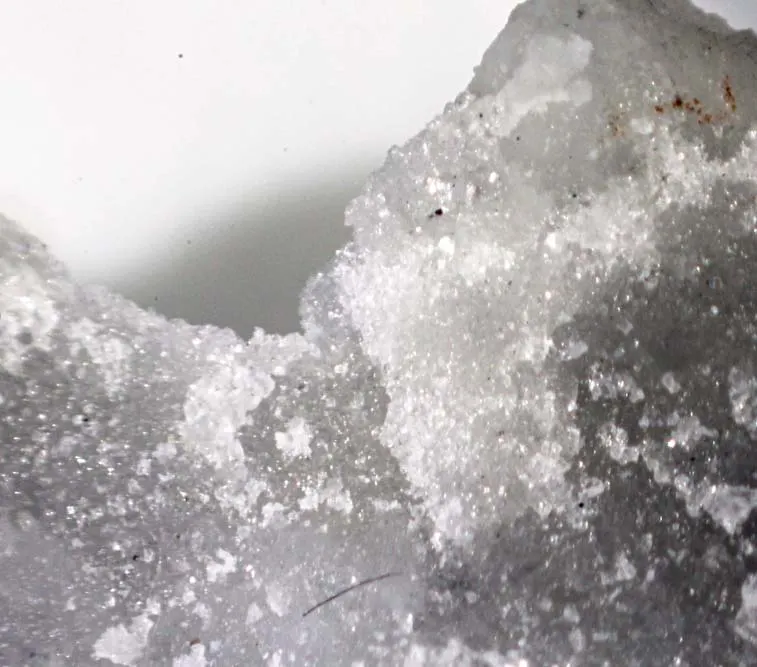

Uralborite

CaB2O2(OH)4
IMA status
  • Approved
IMA symbol
Ubo
Discovered
1961
Also known as
  • Uralboriet

Where it forms, where it's found

Type locality
Novofrolovskoye B-Cu deposit
  1. Tur'insk
  2. Turya river
  3. Serovsky District
  4. Sverdlovsk Oblast
  5. Russia

59.7833°, 60.5000°

2recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104 – 4.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Colourless
Cleavage
Distinct/Good

One, parallel to elongation, distinct.

Density
2.58 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 85° · 2V calc = 86°
Refractive index
1.604 – 1.618
Surface relief
Moderate
Principal indices
nα 1.604 – 1.605 · nβ 1.609 – 1.611 · nγ 1.615 – 1.618
Dispersion
r > v
UV response
Fluoresces violet under LW UV.
Notes

anomalous dark blue and brown interference colors may be observed

Michel-Lévy diagramhighlighted lineδ = 0.0120
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]120 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation120 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Cell parameters
a = 6.925(2) Å · b = 12.328(3) Å · c = 9.833(3) Å
Cell angles
β = 97.50(40) °
Ratio a:b:c
1 : 1.780 : 1.420
Z
4
Comment

Space Group: P21/n.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen615.99995.994
59.36%
20CaCalciumCalcium140.07840.078
24.78%
5BBoronBoron210.81021.620
13.37%
1HHydrogenHydrogen41.0084.032
2.49%
Total161.724100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Uralboriet

In other languages

German
Uralborit
Italian
Uralborite

Classification

Strunz
10th ed.

6.DA.35

  • 6BoratesClass
  • 6.DTetraboratesDivision
  • 6.DANeso-tetraboratesGroup
  • 6.DA.35UralboriteSpecies
Dana
8th ed.

25.03.04.01

  • 25Anhydrous Borates Containing Hydroxyl or HalogenClass
  • 25.03TriboratesType
  • 25.03.04— unnamed intermediate level —Group
  • 25.03.04.01UralboriteSpecies
CIM

9.3.4

  • 9BoratesClass
  • 9.3Borates of Ca and SrGroup
  • 9.3.4UralboriteSpecies

Literature, links & citation

Citations
  1. 1961Malinko, S.V. (1961) New boron minerals — uralborite and pentahydroborite. Zapiski Vsesoyuznogo Mineralogicheskogo Obshchestva: 90(6): 673-681.
  2. 1962Fleischer, Michael; František, Čech (1962) New mineral names. American Mineralogist, 47 (11-12). 1482-1485
  3. 1967IMA (1967) International Mineralogical Association: Commission on New Minerals and Mineral Names. Mineralogical Magazine and Journal of the Mineralogical Society, 36 (277) 131-136 doi:10.1180/minmag.1967.036.277.20 DOI: 10.1180/minmag.1967.036.277.20
  4. 1970Shashkin, D.N., Simonov, M.A., Belov, N.V. (1970) The crystal structure of uralborite Ca2[B4O4(OH)8]. Soviet Physics - Crystallography: 14: 1044-1046.
  5. 1977Simonov, M.A., Egorov-Tismenko, Y.K., Belov, N.V. (1977) Accurate crystal structure of uralborite, Ca2[B4O4(OH)8]. Doklady Akademii Nauk SSSR: 234: 822-825.
