Vajdakite

(Mo6+O2)2As3+2O5 · 3H2O
IMA status
  • Approved
IMA symbol
Vaj
Also known as
  • IMA1998-031
  • Vajdakiet

Where it forms, where it's found

Type locality
Geschieber vein
  1. Svornost Mine
  2. Jáchymov
  3. Karlovy Vary District
  4. Karlovy Vary Region
  5. Czech Republic

50.3725°, 12.9117°

1recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Lustre
Vitreous
Transparency
Transparent
Colour
Green to grey-green
Streak
White to light gray green
Tenacity
brittle
Cleavage
Perfect

Perfect parallel to (100)and good parallel to (010)

Density
3.50 g/cm³

Optical

Optical type
Biaxial (+) · 2V calc = 35.1°
Refractive index
1.757 – 2.04
Surface relief
Very high
Principal indices
nα 1.757 · nβ 1.778 · nγ 2.04
Pleochroism
Visible

X~Y = light gray to light greenish gray, Z = yellowish gray

Dispersion
r > v
Notes

X || b, Z ^ c = 12 deg.

Michel-Lévy diagramhighlighted lineδ = 0.2830
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]2830 nm6th order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation2830 nm
Order6th order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/c
Cell parameters
a = 7,0515(6) Å · b = 12.0908(9) Å · c = 12.2190(14) Å
Cell angles
β = 101.268(9) °
Z
4
Morphology

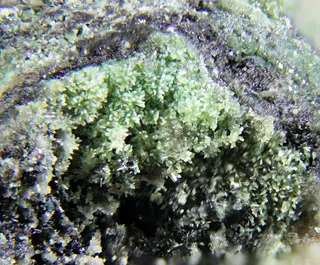

acicular to lath-shaped crystals to 0.5 mm; in divergent sprays and crusts.

Type-locality form

Minute acicular crystals or continuous crusts

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1215.999191.988
35.57%
42MoMolybdenumMolybdenum295.950191.900
35.55%
33AsArsenicArsenic274.922149.844
27.76%
1HHydrogenHydrogen61.0086.048
1.12%
Total539.780100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1998-031
  • Vajdakiet

In other languages

German
IMA 1998-031 · Vajdakit
Italian
Vajdakite

Classification

Strunz
10th ed.

4.JC.20

  • 4OxidesClass
  • 4.JArsenites, antimonites, bismuthites, sulfites, selenites, tellurites; iodatesDivision
  • 4.JCArsenites, antimonites, bismuthites; without additional anions, with H2OGroup
  • 4.JC.20VajdakiteSpecies

Literature, links & citation

Citations
  1. 1997Ondruš, P., Veselovský, F., Skála, R., Cisařová, I., Hloušek, J., Frýda, J., Vavřín, I., Čejka, J., Gabašová, A. (1997) New naturally occurring phases of secondary origin from Jáchymov (Joachimsthal) Journal of the Czech Geological Society, 42 (4) 77-108
  2. 2002Ondruš, Petr, Skála, Roman, Císařová, Ivana, Veselovský, František, Frýda, Jiří, Čejka, Jiří (2002) Description and crystal structure of vajdakite, [(Mo6+O2)2(H2O)2As3+2O5]·H2O—A new mineral from Jáchymov, Czech Republic. American Mineralogist, 87 (7) 983-990 doi:10.2138/am-2002-0722 DOI: 10.2138/am-2002-0722
  3. 2003Ondruš, P., Veselovský, F., Gabašová, A., Hloušek, J., Šrein, V. (2003) Supplement to secondary and rock-forming minerals of the Jáchymov ore district. Journal of the Czech Geological Society, 48 (3-4) 149-155
  4. 2003Mandarino, Joseph A. (2003) New minerals. The Canadian Mineralogist, 41 (5) 1309-1319 doi:10.2113/gscanmin.41.5.1309 DOI: 10.2113/gscanmin.41.5.1309
  5. 2010Čejka, Jiří, Bahfenne, Silmarilly, Frost, Ray L., Sejkora, Jiří (2010) Raman spectroscopic study of the arsenite mineral vajdakite [(Mo6+O2)2(H2O)2As3+2O5]·H2O. Journal of Raman Spectroscopy, 41 (1) 74-77 doi:10.1002/jrs.2288DOI: 10.1002/jrs.2288
