Vandermeerscheite

K2[(UO2)2V2O8] · 2H2O
IMA status
  • Approved
IMA symbol
Vme
IMA approved
2018
Also known as
  • IMA2017-104
  • UM1993-31-VO:KU
  • Vandermeerscheiet

Where it forms, where it's found

Type locality
Schellkopf
  1. Brenk
  2. Brohltal
  3. Ahrweiler
  4. Rhineland-Palatinate
  5. Germany

50.4321°, 7.1645°

2recorded occurrences
Source · OpenStreetMap

Radioactivity

Physical

Hardness
123456789102/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Yellow
Streak
Yellow
Tenacity
brittle
Cleavage
Perfect

(101)

Curved fracture

Density
4.502 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 40°
Refractive index
1.83 – 1.91
Surface relief
Very high
Principal indices
nα 1.83 · nβ 1.90 · nγ 1.91
Pleochroism
Not Visible
Dispersion
moderate, r < v
UV response
Non-fluorescent under both long- and short-wavelength ultraviolet radiation.
Notes

Optical orientation is X ≈ ⊥ {10¯1}, Y ≈ [101], Z = b. α was calculated from β, γ and 2V.

Michel-Lévy diagramhighlighted lineδ = 0.0800
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]800 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation800 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Monoclinic
Cell parameters
a = 8.292(2) Å · b = 8.251(3) Å · c = 10.188(3) Å
Cell angles
β = 110.84(4) °
Ratio a:b:c
1 : 0.995 : 1.229
Z
2
Morphology

Crystals are flattened on (101), and elongated on [101], with the crystal forms: (010), (101) and (111).

Type-locality form

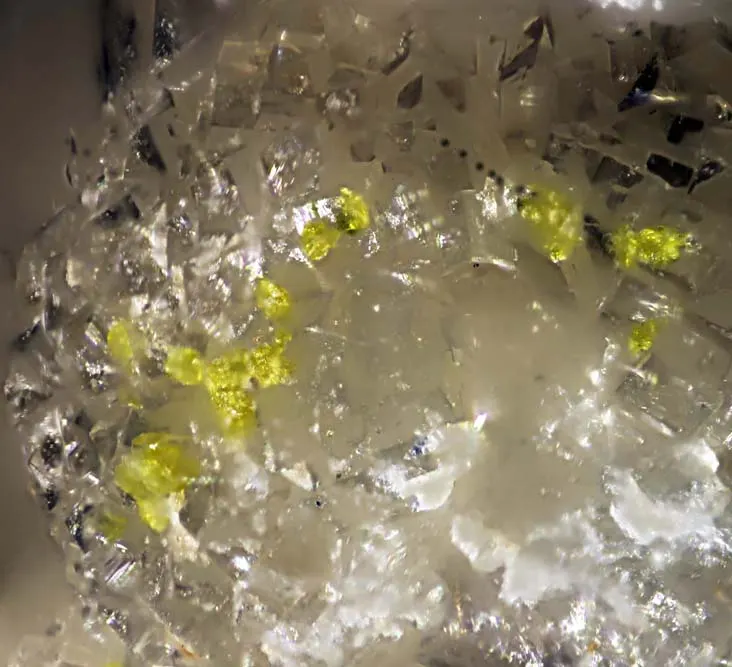

Thin blades up to 50 µm long, forming sub-parallel and divergent aggregates

Comment

Space group: P21/n.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
92UUraniumUranium2238.029476.058
53.84%
8OOxygenOxygen1415.999223.986
25.33%
23VVanadiumVanadium250.942101.884
11.52%
19KPotassiumPotassium239.09878.196
8.85%
1HHydrogenHydrogen41.0084.032
0.46%
Total884.156100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2017-104
  • UM1993-31-VO:KU
  • Vandermeerscheiet

In other languages

German
IMA 2017-104 · Vandermeerscheit

Classification

Strunz
10th ed.

4.HB.45

  • 4OxidesClass
  • 4.HV[5,6] VanadatesDivision
  • 4.HBUranyl SorovanodatesGroup
  • 4.HB.45VandermeerscheiteSpecies

Literature, links & citation

Citations
  1. 1993Piret, P., Hentschel, G., Deliens, M., Van Der Meersche, E. (1993) Ein mit Carnotit verwandtes Kalium-Uranylvanadat vom Schellkopf bei Brenk, Eifel [A potassium-uranylvanadate related to carnotite from Schellkopf, Brenk, Eifel]. Der Aufschluss, 44 (5) Heidelberg. 29-294
  2. 1994Jambor, John L., Grew, Edward S., Roberts, Andrew C. (1994) New Mineral Names. American Mineralogist, 79 (11-12) 1210-1230
  3. 2018Hålenius, U., Hatert, F., Pasero, M., Mills, S. J. (2018) New minerals and nomenclature modifications approved in 2018. Mineralogical Magazine, 82 (2). 445-451 doi:10.1180/mgm.2018.71DOI: 10.1180/mgm.2018.71
  4. 2019Plášil, J., Kampf, A. R., Škoda, R., Čejka, J. (2019) Vandermeerscheite, a new uranyl vanadate related to carnotite, from Eifel, Germany. Journal of GEOsciences, 64 (3) 219-227
