Vantasselite

Al4(PO4)3(OH)3 · 9H2O
IMA status
  • Approved
IMA symbol
Vts
Discovered
1986
IMA approved
1986
Also known as
  • IMA1986-016

Where it forms, where it's found

Type locality
Coticule mine dumps
  1. Bihain
  2. Vielsalm
  3. Luxembourg
  4. Wallonia
  5. Belgium

50.2458°, 5.8101°

6recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102 – 2.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
White
Tenacity
flexible
Cleavage
Perfect

(001), micaceous; imperfect on (010)

Density
2.30 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 61° · 2V calc = 60°
Refractive index
1.511 – 1.578
Surface relief
Moderate
Principal indices
nα 1.511 – 1.5111 · nβ 1.560 · nγ 1.578
Dispersion
strong
Michel-Lévy diagramhighlighted lineδ = 0.0670
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]670 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation670 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Orthorhombic
Cell parameters
a = 10.528(4) Å · b = 16.541(3) Å · c = 20.378(6) Å
Ratio a:b:c
1 : 1.571 : 1.936
Z
8
Type-locality form

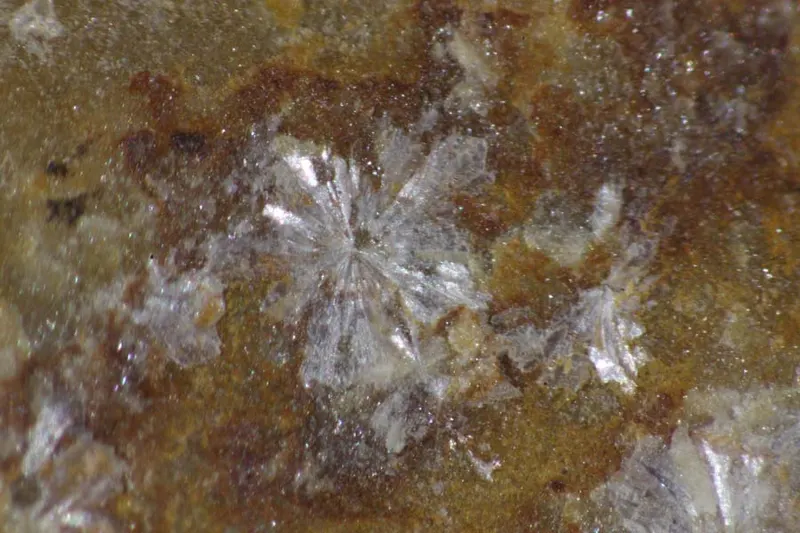

Millimetric rosettes of tin-white transparent lamellae on metapelitic dump material.

Comment

Point Group: 2/m 2/m 2/m, mm2, or 222.; Space Group: Pmam, Pma2, or P21am.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2415.999383.976
63.36%
13AlAluminiumAluminium426.982107.928
17.81%
15PPhosphorusPhosphorus330.97492.922
15.34%
1HHydrogenHydrogen211.00821.168
3.49%
Total605.994100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1986-016

In other languages

German
IMA 1986-016 · Vantasselit
Spanish
vantasselita
Italian
Vantasselite
Chinese
万水磷铝石

Classification

Strunz
10th ed.

8.DC.37

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DCWith only medium-sized cations, (OH, etc.):RO4 = 1:1 and < 2:1Group
  • 8.DC.37VantasseliteSpecies
Dana
8th ed.

42.12.01.01

  • 42Hydrated Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 42.12(AB)4(XO4)3Zq·xH2OType
  • 42.12.01— unnamed intermediate level —Group
  • 42.12.01.01VantasseliteSpecies
CIM

19.7.10

  • 19PhosphatesClass
  • 19.7Phosphates of Al aloneGroup
  • 19.7.10VantasseliteSpecies

Literature, links & citation

Citations
  1. Van Der Meersche, Eddy, De Paepe, Paul, Stoops, Georges (n.d.) Minerals with Belgian Roots - from hopeite (1824) to tazieffite (2009) Academia Press, Ghent.
  2. 1987Fransolet, André-Mathieu (1987) La vantasselite, Al4(PO4)3(OH)3·9H2O, une nouvelle espèce minérale du Massif de Stavelot, Belgique. Bulletin de Minéralogie, 110 (6) 647-656 doi:10.3406/bulmi.1987.8009DOI: 10.3406/bulmi.1987.8009
  3. 1988Jambor, John L.; Bladh, Kenneth W.; Ercit, T. Scott; Grice, Joel D.; Grew, Edward S. (1988) New mineral names. American Mineralogist, 73 (7-8). 927-935
  4. 1988Dillen, Henri (1988) Vantasselit, eine neue Mineralart aus Belgien [Vantasselite, a new mineral from Belgium]. Lapis, 13 (5) 30-31
  5. 2005(2005) Vantasselite. Handbook of Mineralogy. Mineralogical Society of America
