Varennesite

Na8Mn2Si10O25(OH,Cl)2 · 12H2O
IMA status
  • Approved
IMA symbol
Vrn
IMA approved
1994
Also known as
  • IMA1994-017
  • Varennesiet

Where it forms, where it's found

Type locality
Demix-Varennes quarry
  1. Saint-Amable sill
  2. Varennes & St-Amable
  3. Lajemmerais RCM
  4. Montérégie
  5. Québec
  6. Canada

45.6672°, -73.3433°

1recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Transparent · Translucent
Colour
Pale brownish-yellow to orange
Streak
White
Tenacity
brittle
Cleavage
Distinct/Good

Good (010)

Fracture
Conchoidal
Density
2.31 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 89° · 2V calc = 84°
Refractive index
1.532 – 1.55
Surface relief
Moderate
Principal indices
nα 1.532 · nβ 1.540 · nγ 1.550
Pleochroism
Weak

Z = yellow-green X = to very pale yellow

Dispersion
weak
Michel-Lévy diagramhighlighted lineδ = 0.0180
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]180 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation180 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
Cmcm
Cell parameters
a = 13.447(3) Å · b = 15.022(5) Å · c = 17.601(4) Å
Ratio a:b:c
1 : 1.117 : 1.309
Z
4
Type-locality form

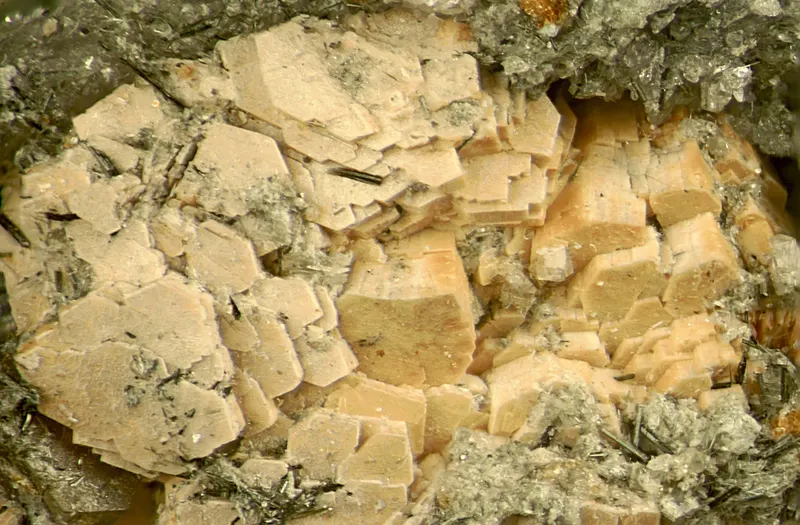

tabular crystals up to 4 mm in length

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen3915.999623.961
48.16%
14SiSiliconSilicon1028.085280.850
21.68%
11NaSodiumSodium822.990183.920
14.19%
25MnManganeseManganese254.938109.876
8.48%
17ClChlorineChlorine235.45070.900
5.47%
1HHydrogenHydrogen261.00826.208
2.02%
Total1295.715100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1994-017
  • Varennesiet

In other languages

German
IMA 1994-017 · Varennesit
Italian
Varennesite

Classification

Strunz
10th ed.

9.EE.50

  • 9SilicatesClass
  • 9.EPhyllosilicatesDivision
  • 9.EESingle tetrahedral nets of 6-membered rings connected by octahedral nets or octahedral bandsGroup
  • 9.EE.50VarennesiteSpecies
Dana
8th ed.

72.05.05.01

  • 72Phyllosilicates Two-dimensional Infinite Sheets with Other Than Six-membered RingsClass
  • 72.05Two-Dimensional Infinite Sheets with Other Than Six-Membered Rings with corrugated and complex layersType
  • 72.05.05— unnamed intermediate level —Group
  • 72.05.05.01VarennesiteSpecies

Literature, links & citation

Citations
  1. 1995Grice, J. D., Gault, R. A. (1995) Varennesite, a new species of hydrated Na-Mn silicate with a unique monophyllosilicate structure. The Canadian Mineralogist, 33 (5) 1073-1081
  2. 1998Horváth, László, Gault, Robert A., Tarassoff, Peter, Pfenninger-Horváth, Elsa (1998) Mineralogy of the Saint-Amable Sill, Varennes and Saint-Amable, Quebec. The Mineralogical Record, 29 (2) 83-118
