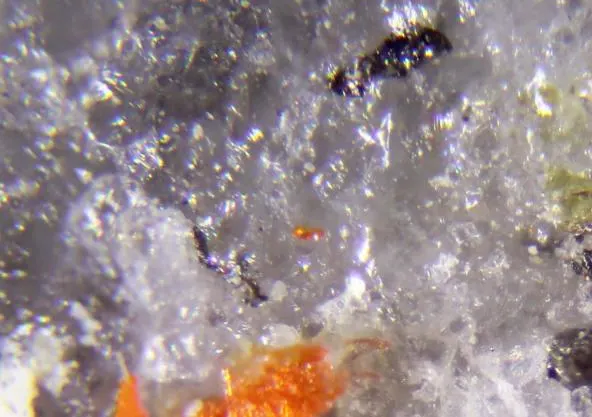

Verplanckite

Ba4Mn2+2Si4O12(OH,H2O)3Cl3
IMA status
  • Approved
IMA symbol
Vpk
Discovered
1962
IMA approved
1964
Also known as
  • IMA1964-011

Where it forms, where it's found

Type locality
Big Creek
  1. Big Creek-Rush Creek Mining District
  2. Fresno County
  3. California
  4. USA

36.9151°, -119.2445°

2recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102.5 – 3/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Brown-yellow · may have an orange tint
Streak
Pale orange
Cleavage
Distinct/Good

Good on (1120); on (0001), poor or a fracture.

Density
3.52 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.672 – 1.683
Surface relief
High
Principal indices
nω 1.683 · nε 1.672
Pleochroism
Visible

O = yellow-orange; E = colorless

UV response
None observed.
Michel-Lévy diagramhighlighted lineδ = 0.0110
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]110 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation110 nm
Order1st order
XPL colour

Crystallography

Crystal system
Hexagonal
Space group
P6/mmm
Cell parameters
a = 16.398(10) Å · c = 7.200(4) Å
Z
1
Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
56BaBariumBarium4137.327549.308
46.76%
8OOxygenOxygen1815.999287.982
24.51%
14SiSiliconSilicon428.085112.340
9.56%
25MnManganeseManganese254.938109.876
9.35%
17ClChlorineChlorine335.450106.350
9.05%
1HHydrogenHydrogen91.0089.072
0.77%
Total1174.928100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Al
  • Mg
  • Ca
  • K

Synonyms

  • IMA1964-011

In other languages

German
IMA 1964-011 · Verplanckit
Italian
Verplanckite
Chinese
水硅钡锰石

Classification

Strunz
10th ed.

9.CE.10

  • 9SilicatesClass
  • 9.CCyclosilicatesDivision
  • 9.CE[Si4O12]8- 4-membered single rings (vierer-Einfachringe), without insular complex anionsGroup
  • 9.CE.10VerplanckiteSpecies
Dana
8th ed.

77.02.08.01

  • 77Tectosilicates ZeolitesClass
  • 77.02Zeolite group - related speciesType
  • 77.02.08— unnamed intermediate level —Group
  • 77.02.08.01VerplanckiteSpecies
CIM

17.3.19

  • 17Silicates Containing other AnionsClass
  • 17.3Silicates with chloride (including aluminosilicates)Group
  • 17.3.19VerplanckiteSpecies

Group, growth & confusion

Often grow together
1 mineral

Literature, links & citation

Citations
  1. 1965Alfors, John T., Stinson, Melvin C., Matthews, Robert A., Pabst, Adolf (1965) Seven new barium minerals from eastern Fresno County, California. American Mineralogist, 50 (3-4) 314-340
  2. 1965Alfors, John T., Putman, George W. (1965) Revised chemical analyses of traskite, verplanckite, and muirite from Fresno County, California. American Mineralogist, 50 (9) 1500-1503
  3. 1973Kampf, A. R., Khan, A. A., Baur, W. H. (1973) Barium chloride silicate with an open framework: verplanckite. Acta Crystallographica Section B Structural Crystallography and Crystal Chemistry, 29 (9) 2019-2021 doi:10.1107/s0567740873005996DOI: 10.1107/s0567740873005996
  4. 1984Alfors, John T., Pabst, Adolf (1984) Titanian taramellites in western North America. American Mineralogist, 69 (3-4) 358-373
  5. 2001(2001) Verplanckite. Handbook of Mineralogy. Mineralogical Society of America
