Versiliaite

(Fe2+2Fe3+2)(Fe3+2Sb3+6)O16S
IMA status
  • Approved
IMA symbol
Vsl
Discovered
1978
IMA approved
1978
Also known as
  • IMA1978-068
  • Versiliaiet

Where it forms, where it's found

Geological setting

An iron ore deposit in barite formed by metasomatic processes at the contact between phyllites and dolomite.

Type locality
Buca della Vena Mine
  1. Pontestazzemese
  2. Stazzema
  3. Lucca Province
  4. Tuscany
  5. Italy

43.9986°, 10.2944°

1recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Opaque
Colour
Black
Cleavage
Perfect

(110)

Density
5.12 g/cm³

Optical

Optical type
Uniaxial
Tropism
Anisotropic
Reflectance R%
(18.5, 19.4) 470, (18.5, 17.8) 546, (18.3, 16.9) 589, (17.7, 16.2) 650
Reflected-light panel
18.3 %anisotropic · dual curve
Specimen sRGB 157, 110, 59
White reference100 % reflector under same lamp
R₁ R₂
Mode

Crystallography

Crystal system
Orthorhombic
Space group
Pbam
Cell parameters
a = 8.492(5) Å · b = 8.326(5) Å · c = 11.938(7) Å
Ratio a:b:c
1 : 0.980 : 1.406
Z
1
Morphology

Platy on (001)

Type-locality form

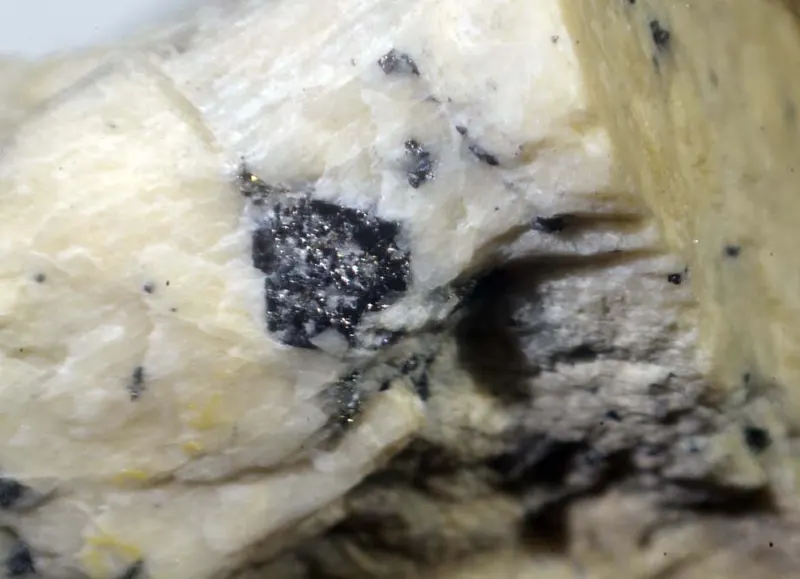

Massive black aggregates in veinlets within thin layers of dolomite

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
51SbAntimonyAntimony6121.760730.560
53.97%
26FeIronIron655.845335.070
24.75%
8OOxygenOxygen1615.999255.984
18.91%
16SSulfurSulfur132.06032.060
2.37%
Total1353.674100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Zn
  • As

Synonyms

  • IMA1978-068
  • Versiliaiet

In other languages

German
IMA 1978-068 · Versiliait
Italian
Versiliaite

Classification

Strunz
10th ed.

4.JA.30

  • 4OxidesClass
  • 4.JArsenites, antimonites, bismuthites, sulfites, selenites, tellurites; iodatesDivision
  • 4.JAArsenites, antimonites, bismuthites; without additional anions, without H2OGroup
  • 4.JA.30VersiliaiteSpecies
Dana
8th ed.

45.01.10.01

  • 45Acid and Normal Antimonites and ArsenitesClass
  • 45.01MiscellaneousType
  • 45.01.10— unnamed intermediate level —Group
  • 45.01.10.01VersiliaiteSpecies
CIM

4.11

  • 4OxysulphidesClass
  • 4.11— unnamed intermediate level —Group
  • 4.11VersiliaiteSpecies

Group, growth & confusion

Often grow together
1 mineral

Literature, links & citation

Citations
  1. 1979Mellini, Marcello, Merlino, Stefano, Orlandi, Paolo (1979) Versiliaite and apuanite, two new minerals from the Apuan Alps, Italy. American Mineralogist, 64 (11-12) 1230-1234
  2. 1979Mellini, Marcello, Merlino, Stefano (1979) Versiliaite and apuanite: derivative structures related to schafarzikite. American Mineralogist, 64 (11-12) 1235-1242
  3. 1981Mellini, Marcello, Amouric, Marc, Baronnet, Alain, Mercuriot, Genevieve (1981) Microstructures and nonstoichiometry in schafarzikite-like minerals. American Mineralogist, 66 (9-10) 1073-1079
  4. 2005(2005) Versiliaite. Handbook of Mineralogy. Mineralogical Society of America
